产品技术规格
| 1 | 1.104 |
|---|---|
| 1200 | 0.744 |
| 12000 | 0.702 |
| 20 | 1.051 |
| 24000 | 0.689 |
| 6000 | 0.723 |
| Assembly Country of Origin | Not available |
| batch | N |
| BRHTS | 85369090 |
| CAHTS | 8536900020 |
| CNHTS | 8536901100 |
| Contact Plating | Tin |
| Contact Type | Terminal |
| Country of Diffusion | Not available |
| Country of Origin | Mexico |
| ECCN | EAR99 |
| Family | Metri-Pack |
| Gender | Pin (Male) |
| JPHTS | 853690000 |
| KRHTS | 8536909010 |
| Locking Mechanism | Locking Lance |
| Mounting Angle | Straight |
| MXHTS | 8536902800 |
| RoHS Compliant | Yes |
| RoHS状态 | RoHS Compliant |
| Sealed / Unsealed | Sealed |
| Standard Pack Qty | 1200 |
| TARIC | 8536901000 |
| Tradename | Metri-Pack |
| USHTS | 8536904000 |
| Wire Gauge Max | 14 AWG |
| Wire Gauge Min | 17 AWG |
| Wire Gauge Range | 14 AWG to 17 AWG |
| 交期 | 161 Days |
| 产品名称 | 12065196 (APTIV) |
| 产品链接 | https://www.mouser.hk/en/ProductDetail/Aptiv/12065196?qs=xyz6lfZ1ktIxAIpZKrXgXQ%3D%3D |
| 产地 | 中国/CHN |
| 单位重量（kg） | 0.002712135 |
| 品名 | 盘装端子 |
| 替代包装型号 | 12065196-L |
| 贸泽编号 | 829-12065196-R |
| 接触件材质 | Copper Alloy |
| 最低工作温度 | - 40 C |
| 安装风格 | Cable Mount / Free Hanging |
| 包装 | Reel |
| 额定电流 | 42 A |
| 端接方式 | Crimp |
| 最高工作温度 | + 125 C |
Related product information
Similar products for discovery (not a compatibility or replacement claim)
Verified inquiry information
- Packaging
- Reel
- Minimum order quantity
- 1200
Manufacturer and authorized source records
Product information

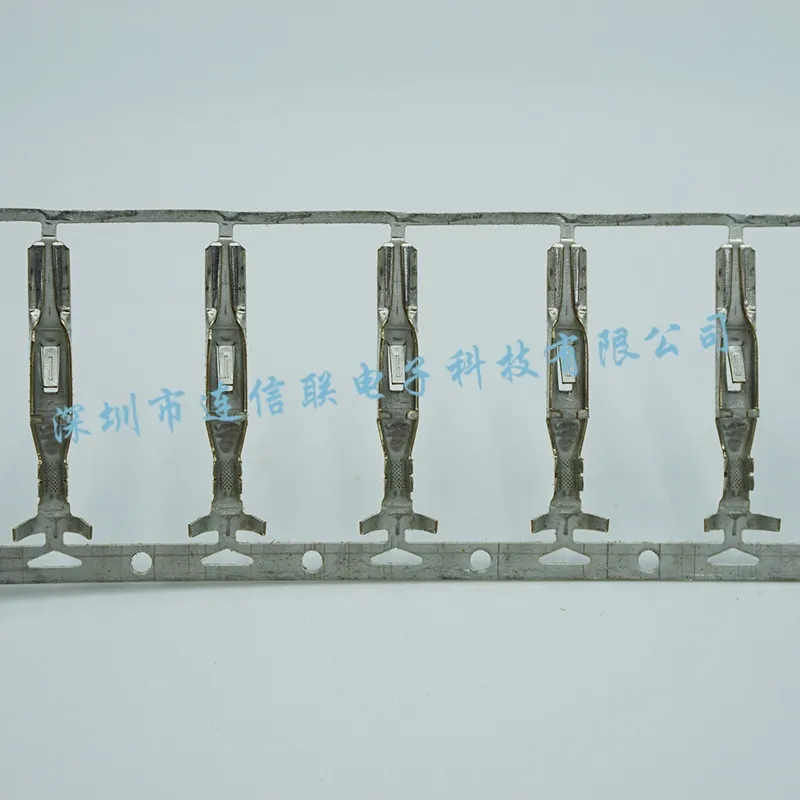

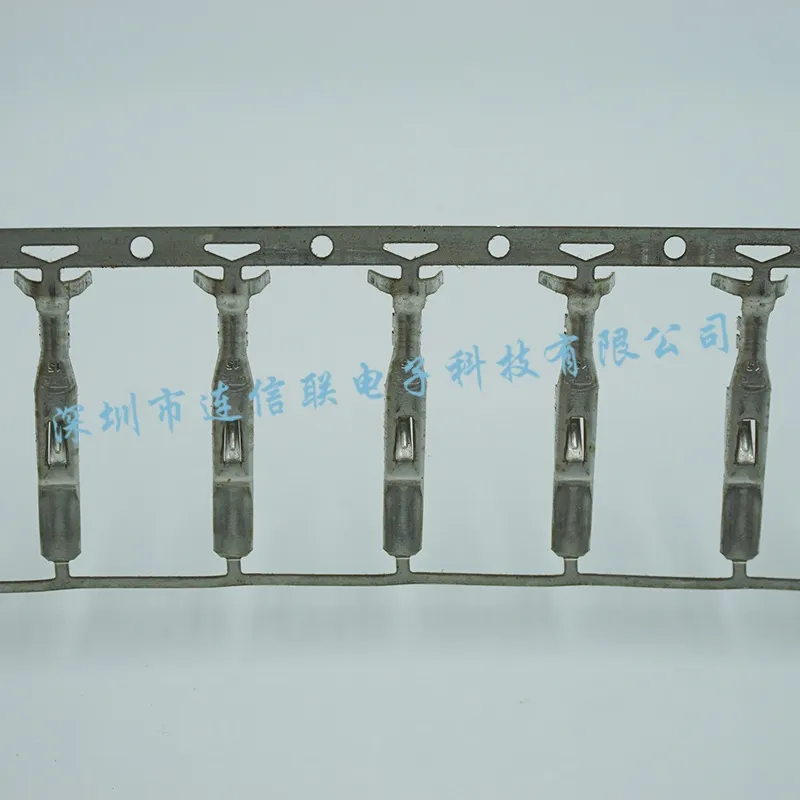

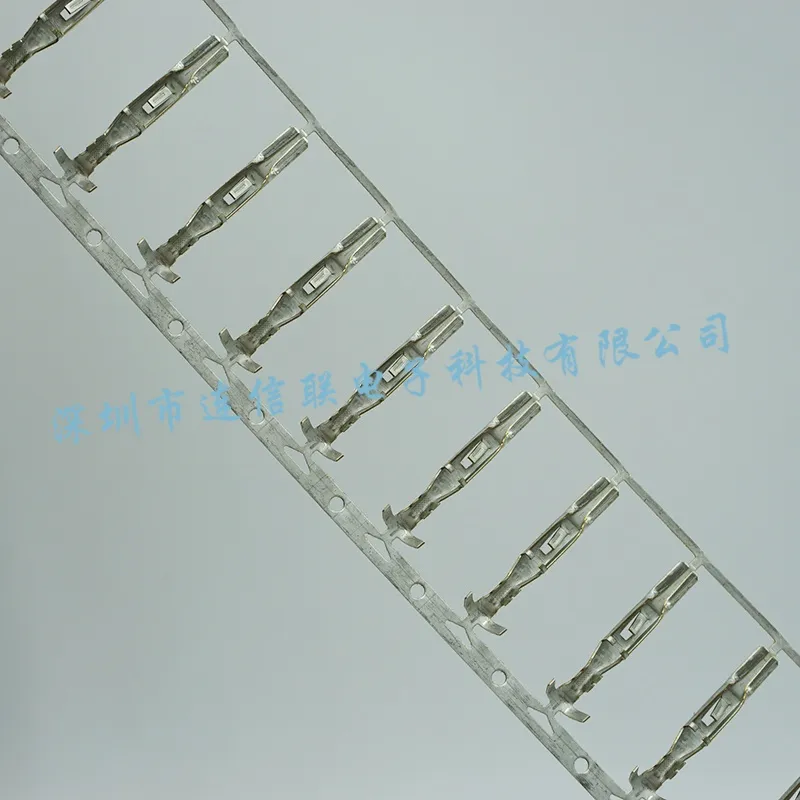

Aptiv 12065196 Electrical Connector
12065196 is a Aptiv Automotive Connectors. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
12065196
Brand
Aptiv
Category
Automotive Connectors
Technical specifications
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 1200 |
| Unit weight (kg) | 0.002712135 |
Ordering and packaging
| Minimum order quantity | 1200 |
|---|---|
| Order multiple | 1200 |
| Factory stock | 0 |
| Suggested alternative | 829-12065196 |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| KRHTS | 8536909010 |
| MXHTS | 8536902800 |
| BRHTS | 85369090 |
| ECCN | EAR99 |
| Country of Origin | Mexico |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
