Product information

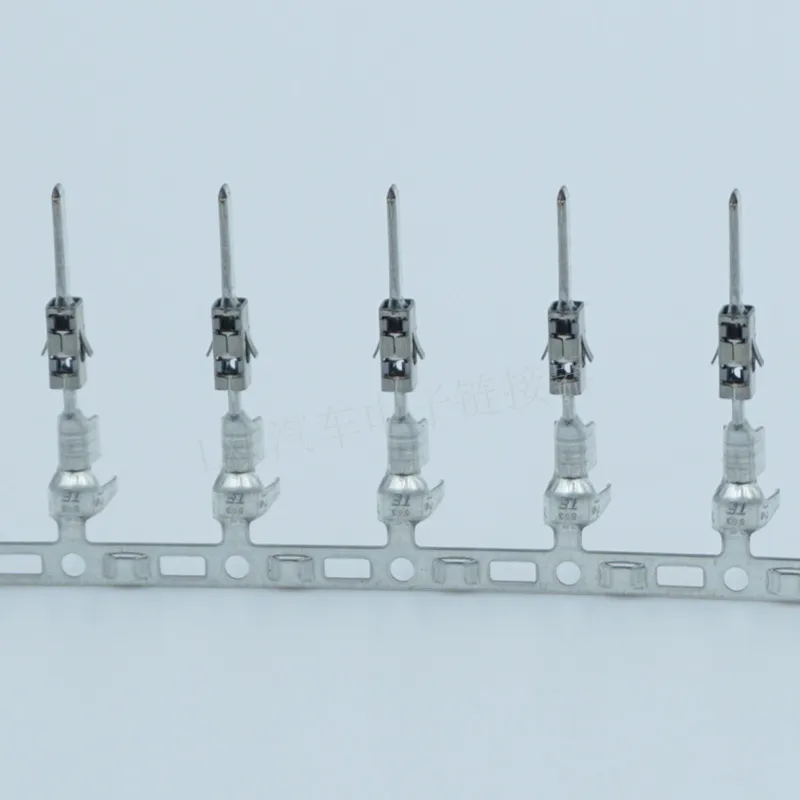

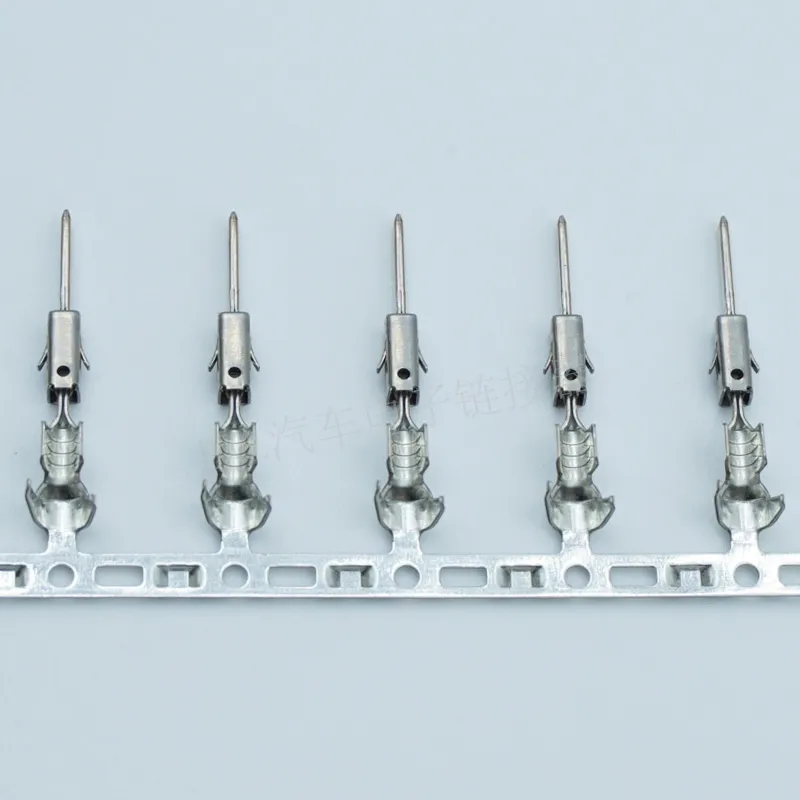

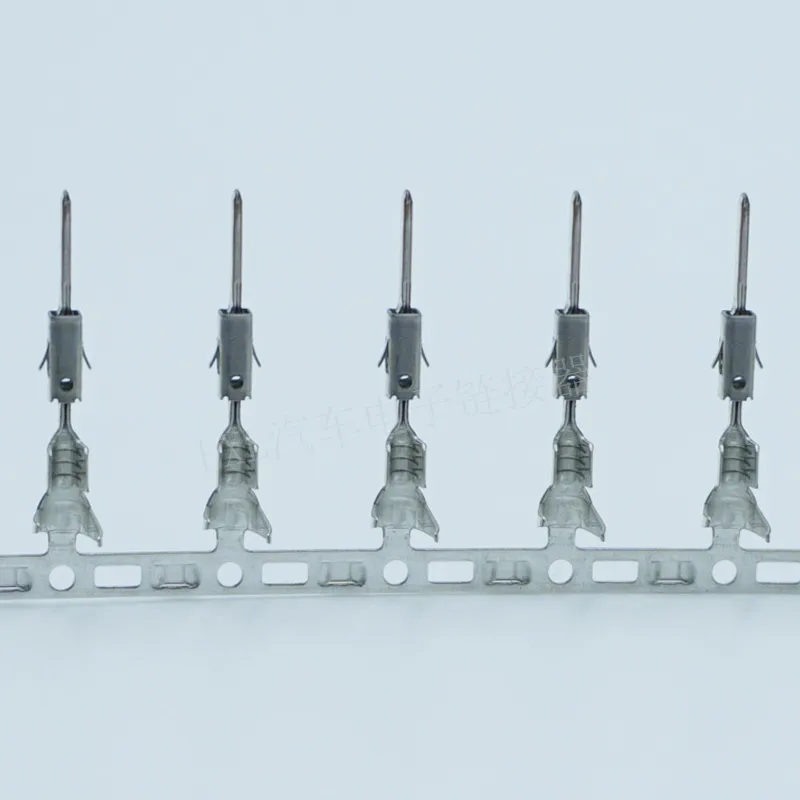

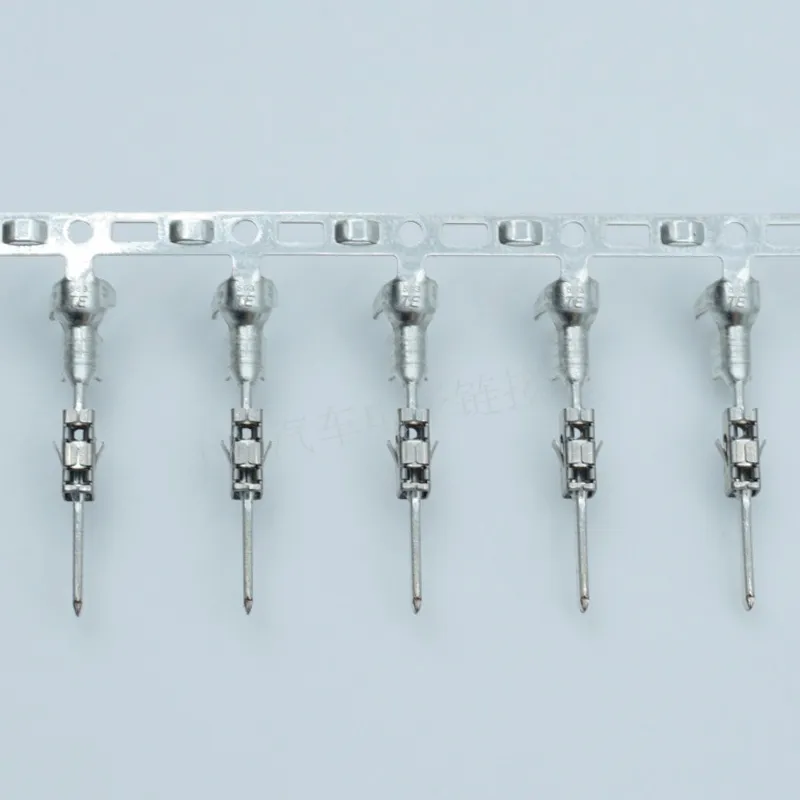

TE Connectivity 1703278-2 Connector Terminal
1703278-2 is a TE Connectivity Automotive Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
1703278-2
Brand
TE Connectivity
Category
Automotive Terminals
Series
Timer Connector System
Technical specifications
| Gender | Male |
|---|---|
| Packaging | Reel |
| Brand region | International |
| Termination method | Crimp |
| Series | Timer Connector System |
| Wire size (AWG) | 15 AWG |
| Contact plating | Tin |
| Operating temperature | 176 °F、-40 – 266 °F |
| Packaging | Reel |
| Standard Pack Qty | 4000 |
| Unit weight (kg) | 0.00038 |
| Terminal Type | Tab |
| Wire Size (Mm²) | 1.5 |
| Mating Tab Width | 1.6 mm [ .063 in ] |
| Interface Plating | Tin (Sn) |
| Primary Locking Feature | Locking Lance |
| Product Features & Characteristics | Select All |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| KRHTS | 8536909010 |
| MXHTS | 8536902800 |
| BRHTS | 85369090 |
| ECCN | EAR99 |
| Country of Origin | Czech Republic |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
