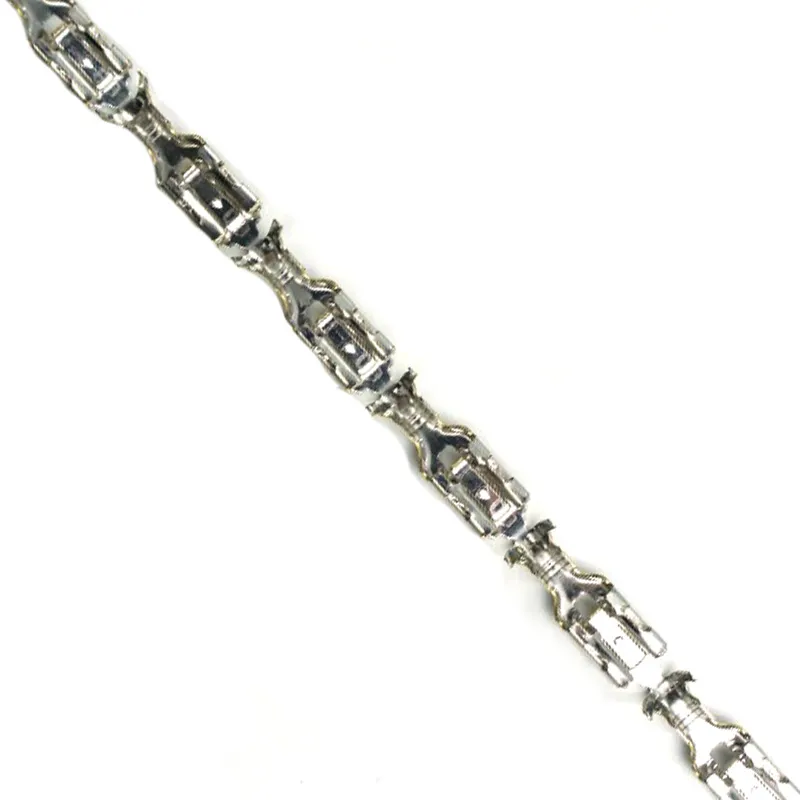

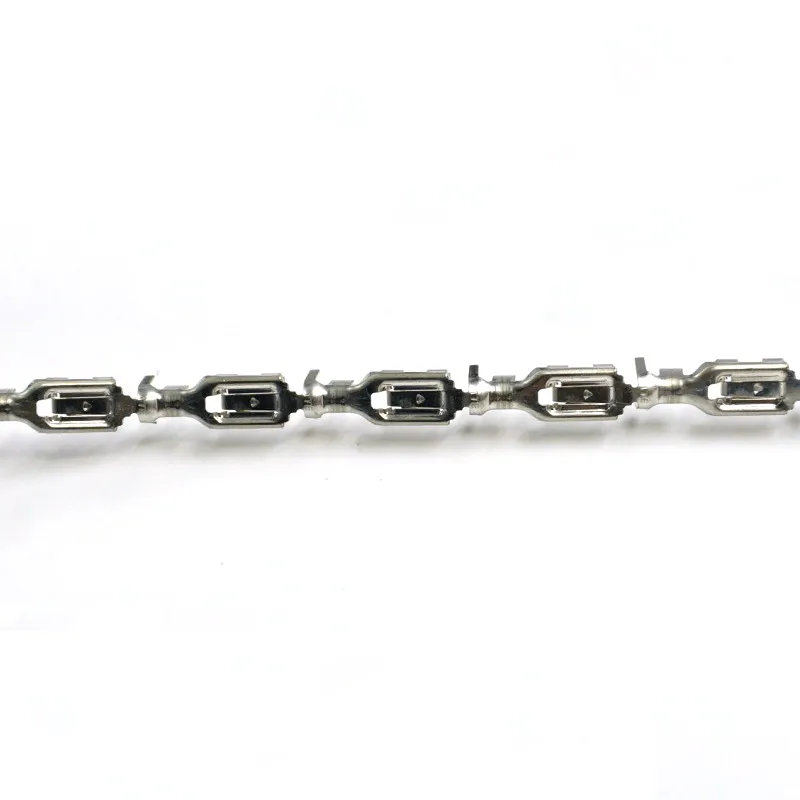

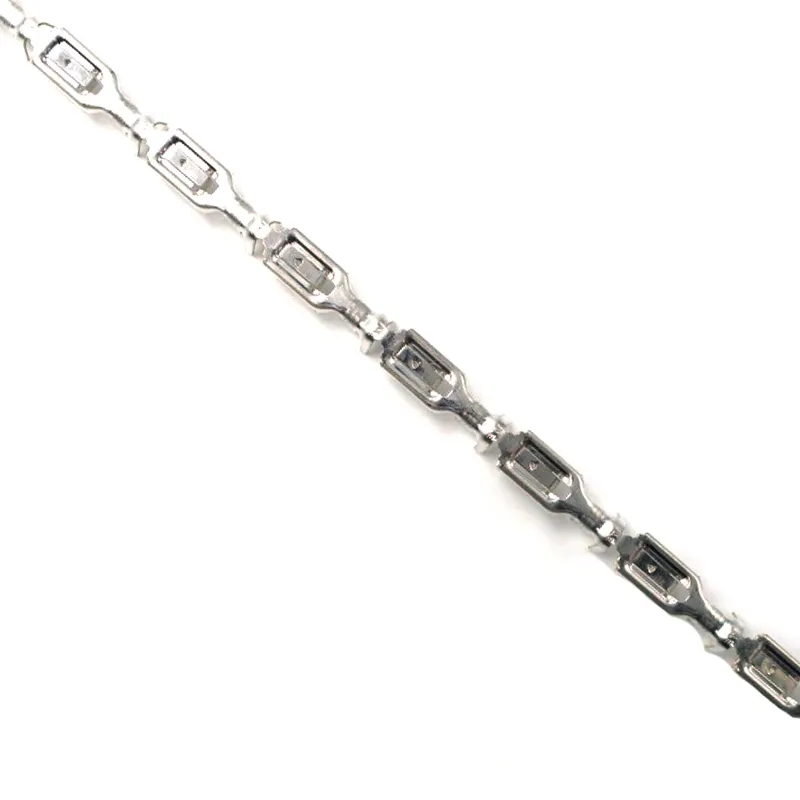

TE Connectivity 170456-2 Quick Disconnects
170456-2 is a TE Connectivity Quick Disconnects. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
170456-2
Brand
TE Connectivity
Category
Quick Disconnects
Technical specifications

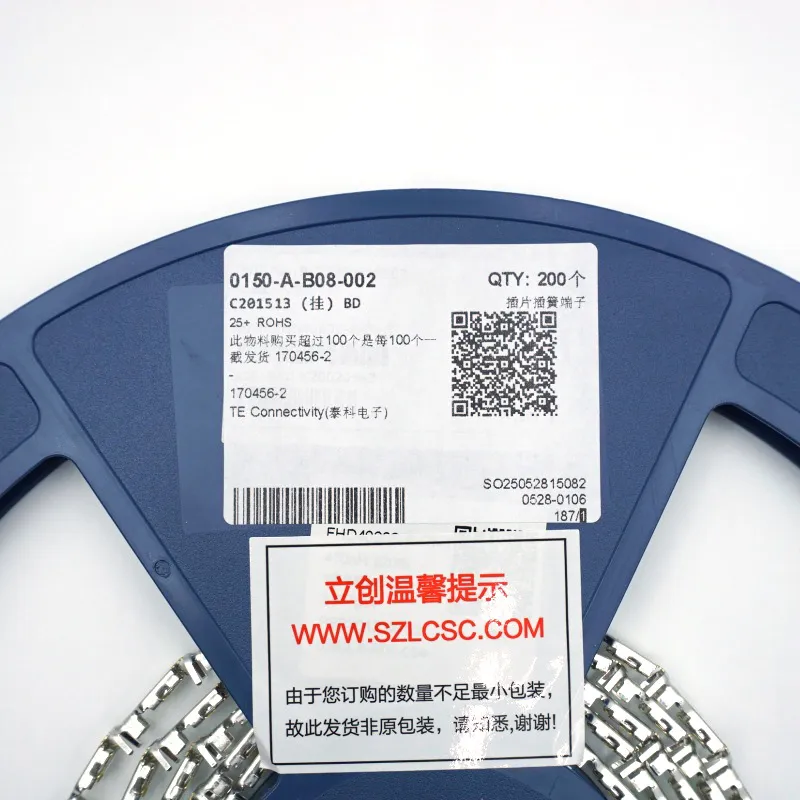

| Packaging | Reel |
|---|---|
| Standard Pack Qty | 3000 |
| Unit weight (kg) | 0.00098 |
| Quick Disconnect Terminal Type | Receptacle |
| Wire Size ( A W G) | 12 – 10 |
| Wire Size (Mm²) | 3.31 – 5.26 |
| Mating Tab Width | 6.35 mm [ .25 in ] |
| Mating Tab Thickness | .81 mm [ .032 in ] |
| Product Features & Characteristics | Select All |
| Insertion Force | Low |
| Connection Capacity | Single |
| Compatible With Wire & Cable Type | Discrete Wire |
| Terminal Orientation | Straight |
| Contact Base Material | Brass |
| Terminal Plating Material | Pre-Tin |
| Crimp Type | F-Crimp |
| Barrel Type | Open |
| Product Terminates To | Wire & Cable |
| Extraction Force (Kgf) | .5 – 3 |
| Extraction Force ( Newton) | 4.9 – 29.4 |
| Mating Retention Type | Dimple |
| Wire Insulation Support | With |
| Terminal Material Thickness | .41 mm [ .016 in ] |
| Compatible Insulation Diameter Range | 3.6 – 5 mm [ .14 – .197 in ] |
| Product Length | 22.8 mm [ .89 in ] |
| Insulation Option | Uninsulated |
| Operating Temperature Range | -40 – 110 °C [ -40 – 230 °F ] |
| Compatible With Agency/ Standards Products | UL |
| Packaging Quantity | 3000 |
| Packaging Method | Loose Piece/Carton |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| KRHTS | 8536909010 |
| MXHTS | 8536902800 |
| BRHTS | 85369090 |
| ECCN | EAR99 |
| Country of Origin | Korea, Republic of |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
