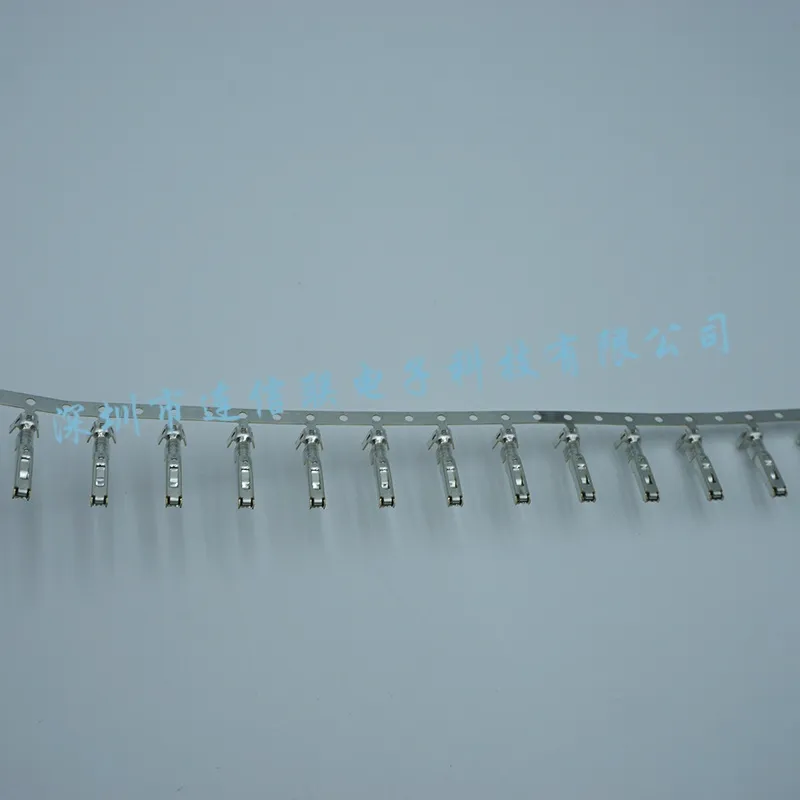

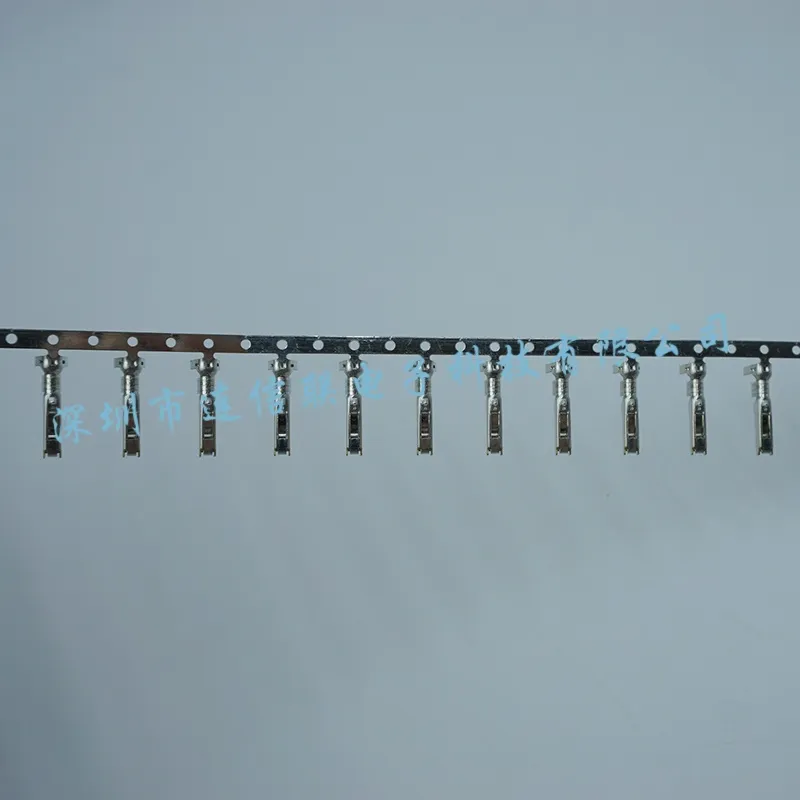

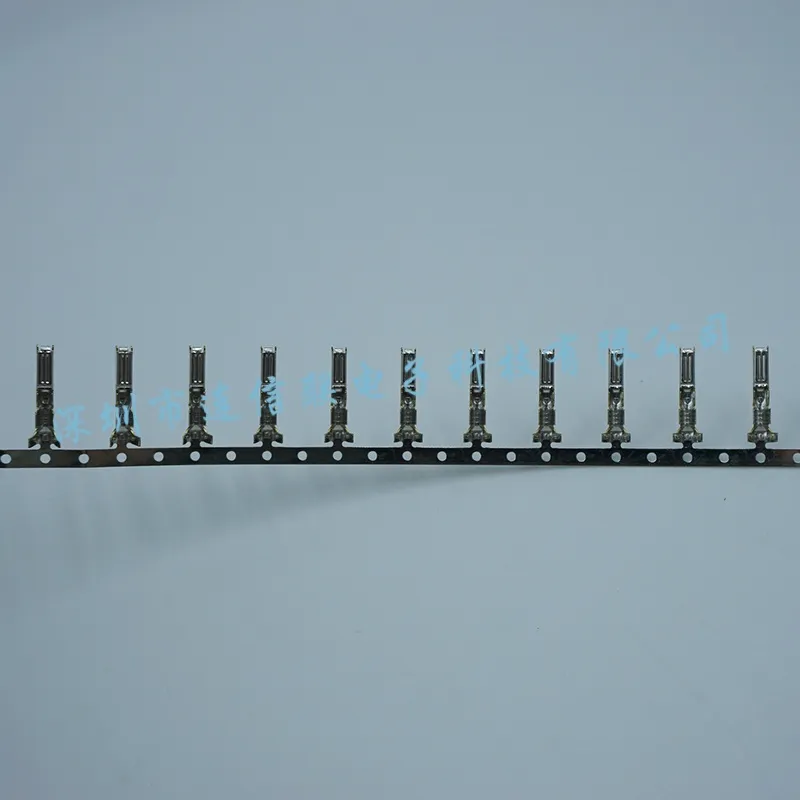

TE Connectivity 173631-1 Connector Terminal
173631-1 is a TE Connectivity Automotive Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
173631-1
Brand
TE Connectivity
Category
Automotive Terminals
Technical specifications
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 4000 |
| Unit weight (kg) | 0.000576 |
| Terminal Type | Receptacle |
| Wire Size ( A W G) | 20 – 16 |
| Wire Size (Mm²) | .5 – 1.25 |
| Mating Tab Width | 1.8 mm [ .071 in ] |
| Interface Plating | Tin (Sn) |
| Product Features & Characteristics | Select All |
| Receptacle Style | 180° |
| Primary Locking Feature | Clean Body |
| Sealable | No |
| Terminal Seal Type | Unsealed |
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.8mm |
| Crimp Type | F-Crimp |
| Typical Current Rating ( A) | 10 |
| Mating Tab Thickness | .64 mm [ .025 in ] |
| Termination Method To Wire & Cable | Crimp |
| Product Terminates To | Wire |
| Compatible Insulation Diameter Range | 2 – 2.6 mm [ .079 – .102 in ] |
| Wire Size Search (Mm²) | .5 | .6 | .75 | 1 | 1.25 |
| Wire Size Search ( A W G) | 16 | 17 | 18 | 19 | 20 |
| Tab Length | 16 mm [ .63 in ] |
| Insulation Option | Uninsulated |
| Operating Temperature ( Max) | 105 °C [ 212 °F ] |
| Operating Temperature Range | -30 – 105 °C [ -22 – 221 °F ] |
| Compatible With Wire Base Material | Copper |
| Packaging Quantity | 4000 |
| Packaging Method | Reel |
| Terminal Transmits | 0 – 24 A (Low Power) |
Ordering and packaging
| Minimum order quantity | 4000 |
|---|---|
| Order multiple | 4000 |
| Factory stock | 0 |
| Suggested alternative | 571-175268-1 |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| MXHTS | 8536902800 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | United States |
| Assembly Country of Origin | Not available |
| Country of Diffusion | United States |
| RoHS status | RoHS Compliant |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
