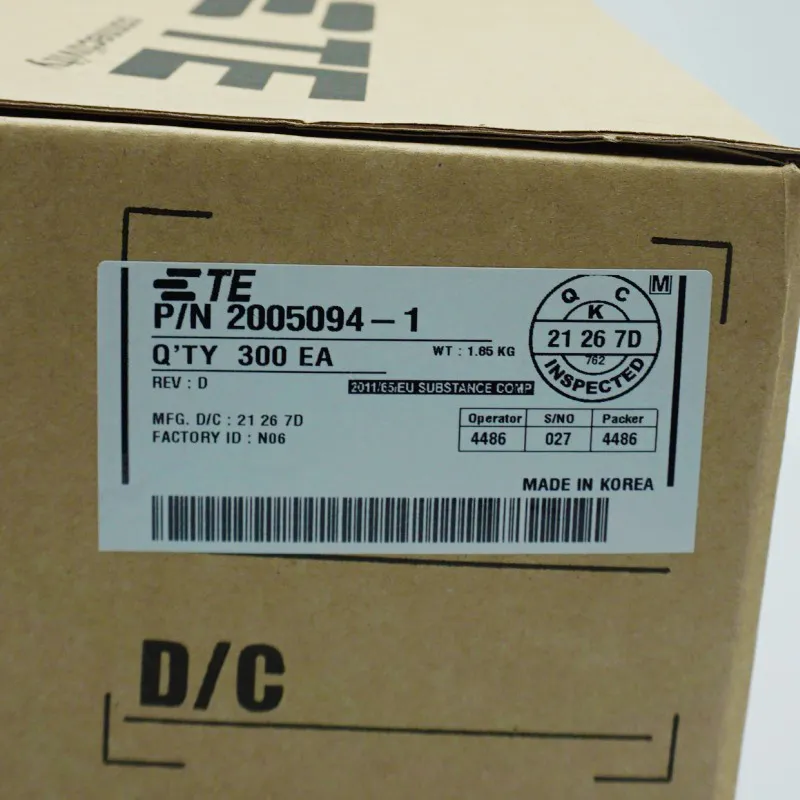

TE Connectivity 2005094-1 Connector Housing
2005094-1 is a TE Connectivity Automotive Housings. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
2005094-1
Brand
TE Connectivity
Category
Automotive Housings
Technical specifications
| Packaging | Bag |
|---|---|
| Standard Pack Qty | 600 |
| Nominal Voltage Architecture ( V) | 12 |
| Connector & Housing Type | Housing for Female Terminals |
| Number Of Positions | 40 |
| Sealable | No |
| Operating Temperature Range | -40 – 125 °C [ -40 – 257 °F ] |
| Product Features & Characteristics | Select All |
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | No |
| Primary Locking Feature | Locking Lance |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Number Of Rows | 2 |
| Operating Voltage ( V D C) | 12 |
| Primary Product Color | Natural |
| Connector & Keying Code | None |
| Contact Type | Receptacle |
| Contact Size | .64mm |
| Mating Tab Width | .64 mm [ .025 in ] |
| Mating Alignment | With |
| Mating Alignment Type | Polarization |
| Terminal Position Assurance | Yes |
| Strain Relief | Without |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Centerline ( Pitch) | 2.2 mm [ .087 in ] |
| Connector Height | 15.8 mm [ .622 in ] |
| Product Length | 46.2 mm [ 1.82 in ] |
| Row-To- Row Spacing | 3 mm [ .118 in ] |
| Product Width | 21 mm [ .827 in ] |
| Operating Temperature ( Max) | 125 °C [ 257 °F ] |
| Circuit Application | Signal |
| Packaging Quantity | 600 |
| Packaging Method | Bag |
| Connector Position Assurance Capable | No |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
Compliance information
| USHTS | 8538906000 |
|---|---|
| ECCN | EAR99 |
| Country of Origin | Not available |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| Lifecycle status | New at Mouser |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
