Product information

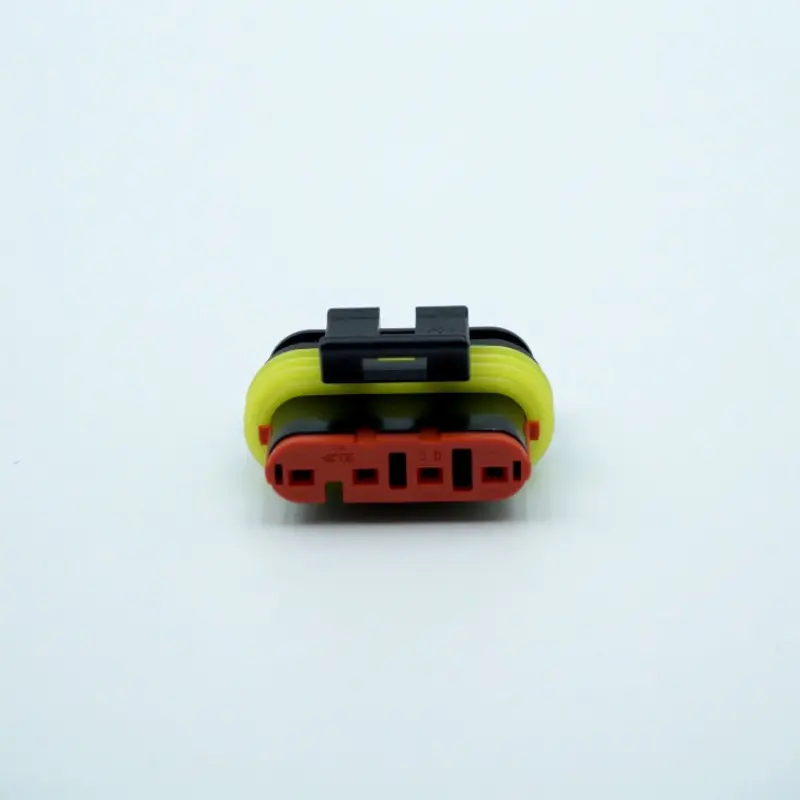

TE Connectivity 282088-1 Connector Housing
282088-1 is a TE Connectivity Automotive Housings. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
282088-1
Brand
TE Connectivity
Category
Automotive Housings
Technical specifications
| Standard Pack Qty | 500 |
|---|---|
| Unit weight (kg) | 0.006 |
| Nominal Voltage Architecture ( V) | 12 | 24 | 48 |
| Connector & Housing Type | Housing for Female Terminals |
| Number Of Positions | 4 |
| Sealable | Yes |
| Operating Temperature Range | -40 – 125 °C [ -40 – 257 °F ] |
| Product Features & Characteristics | Select All |
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | No |
| Primary Locking Feature | Integrated in Housing |
| Connector System | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Number Of Rows | 1 |
| Operating Voltage ( V D C) | 24 |
| Cable Exit Angle (°) | 180 |
| Primary Product Color | Black |
| Contact Type | Receptacle |
| Contact Size | 1.5mm |
| Mating Tab Width | 1.5 mm [ .059 in ] |
| Contact Current Rating ( Max) ( A) | 14 |
| Mating Alignment | With |
| Mating Alignment Type | Polarizing Slot |
| Terminal Position Assurance | No |
| Strain Relief | Without |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Housing Material | PA 66 GF |
| Centerline ( Pitch) | 6 mm [ .236 in ] |
| Connector Height | 9.3 mm [ .366 in ] |
| Product Length | 32.2 mm [ 1.268 in ] |
| Product Width | 29.1 mm [ 1.146 in ] |
| Operating Temperature ( Max) | 125 °C [ 257 °F ] |
| Circuit Application | Power |
| I P Rating | IP67 | IPX6K | IPX9K |
| Packaging Method | Bag |
| Packaging Quantity | 500 |
| Serviceable | Yes |
| Connector Position Assurance Capable | No |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
Compliance information
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200090 |
| CAHTS | 8538909020 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | Italy |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
