Product information

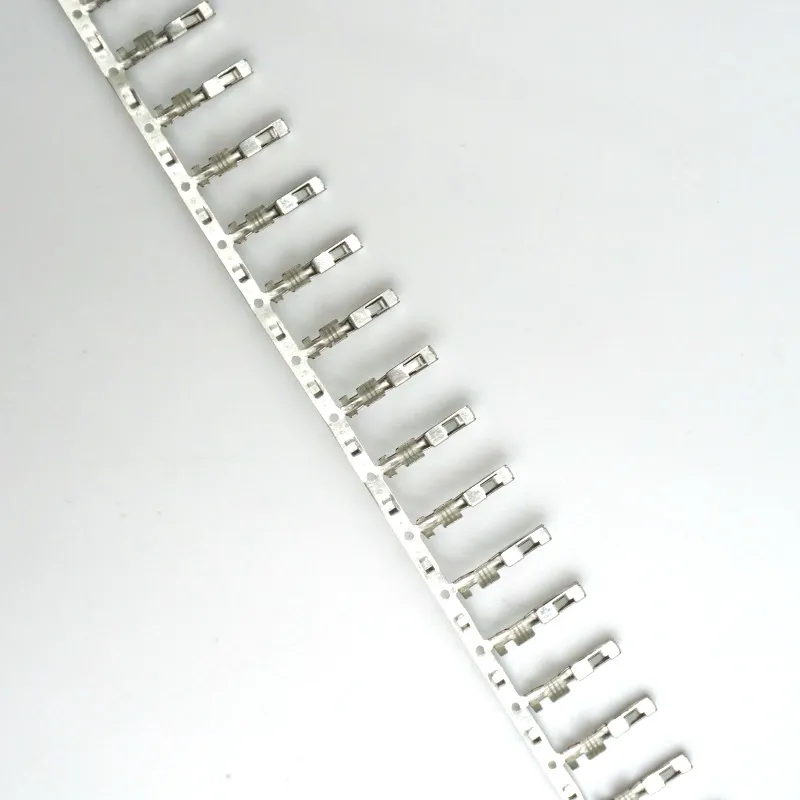

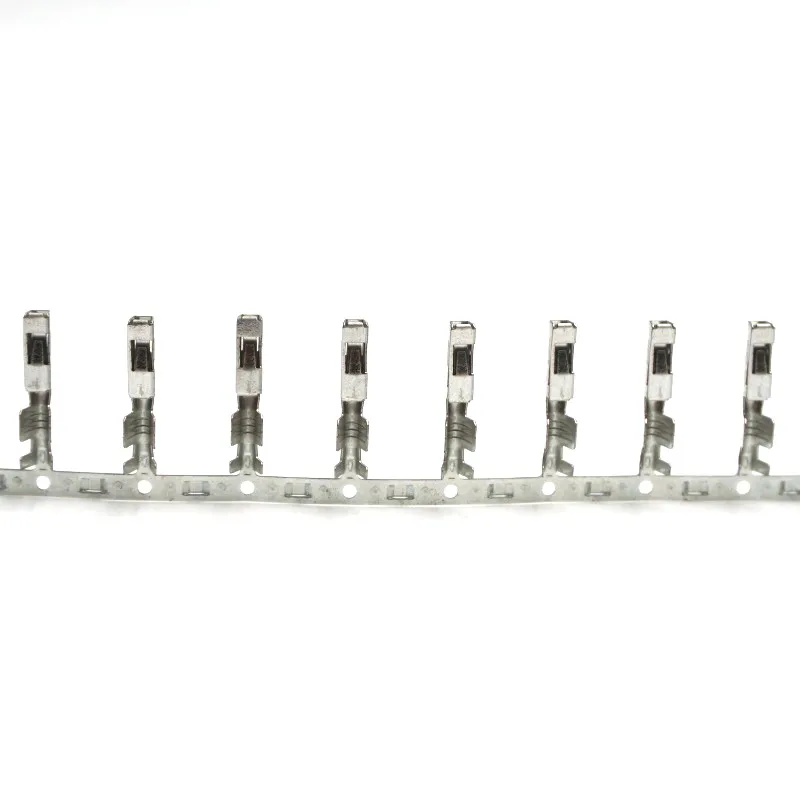

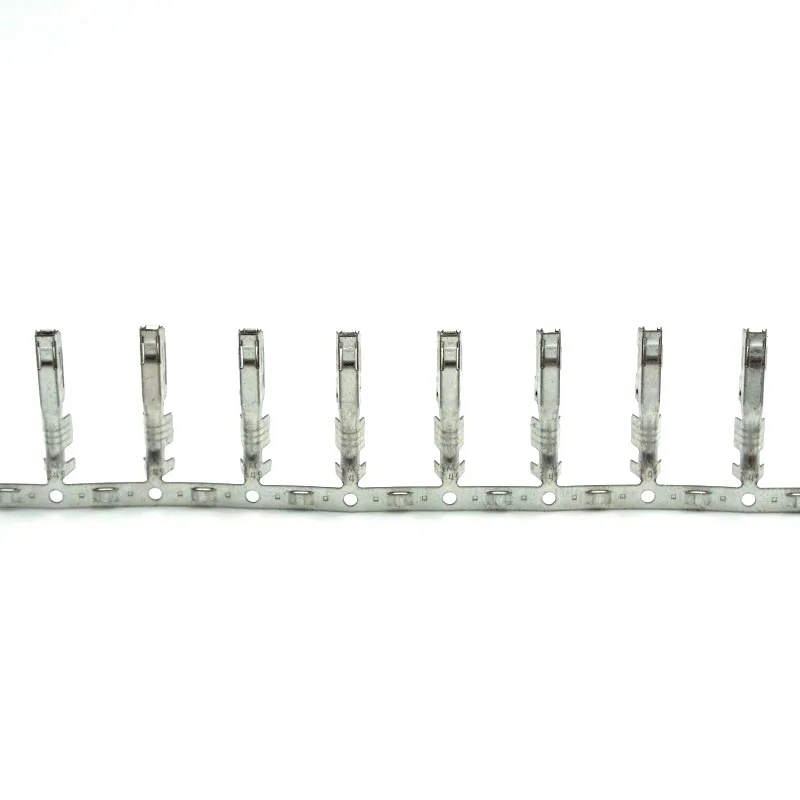

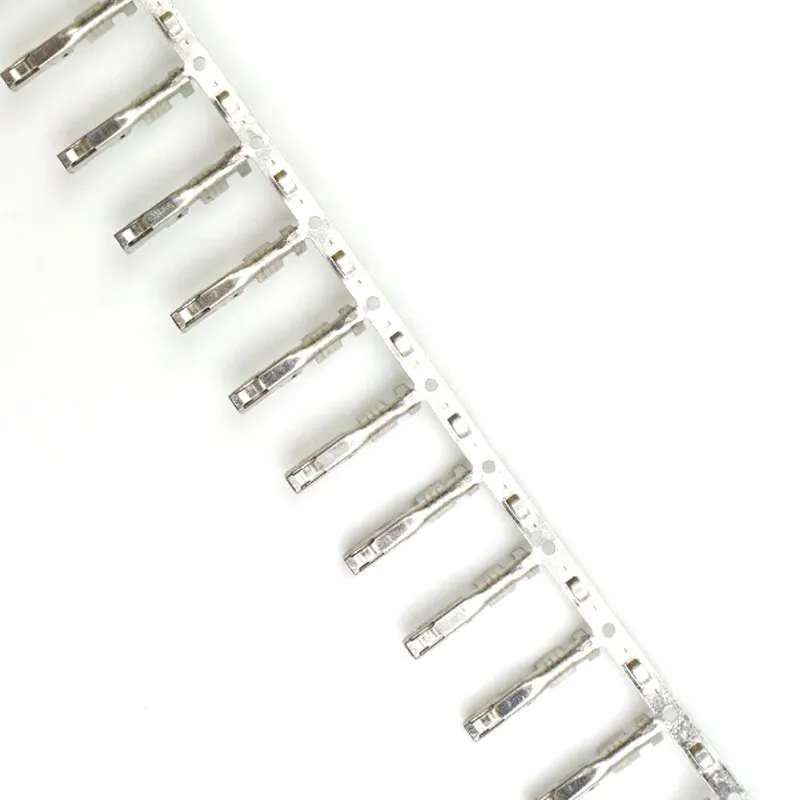

TE Connectivity 638652-1 Connector Terminal
638652-1 is a TE Connectivity Automotive Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
638652-1
Brand
TE Connectivity
Category
Automotive Terminals
Series
1.5/2.8 Connector System
Technical specifications
| Gender | Female |
|---|---|
| Packaging | Reel |
| Brand region | International |
| Termination method | Crimp |
| Series | 1.5/2.8 Connector System |
| Wire size (AWG) | 14 AWG |
| Contact plating | Tin |
| Operating temperature | 176 °F、-40 – 257 °F |
| Packaging | Reel |
| Standard Pack Qty | 5000 |
| Unit weight (kg) | 0.000299 |
| Terminal Type | Receptacle |
| Wire Size ( A W G) | 14 – 16 |
| Wire Size (Mm²) | 2.08 – 1.3 |
| Mating Tab Width | 1.5 mm [ .06 in ] |
| Interface Plating | Tin (Sn) |
| Product Features & Characteristics | Select All |
| Receptacle Style | 180° |
| Primary Locking Feature | Clean Body |
| Sealable | No |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| MXHTS | 8536902800 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | United States |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
Additional information
| Product type | Terminal |
|---|
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
