Product information

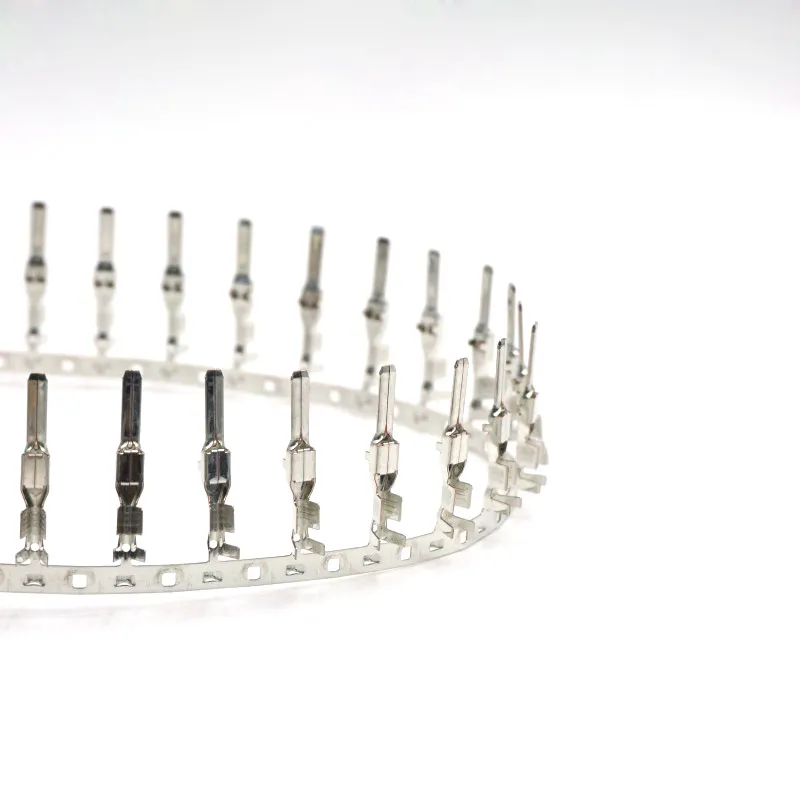

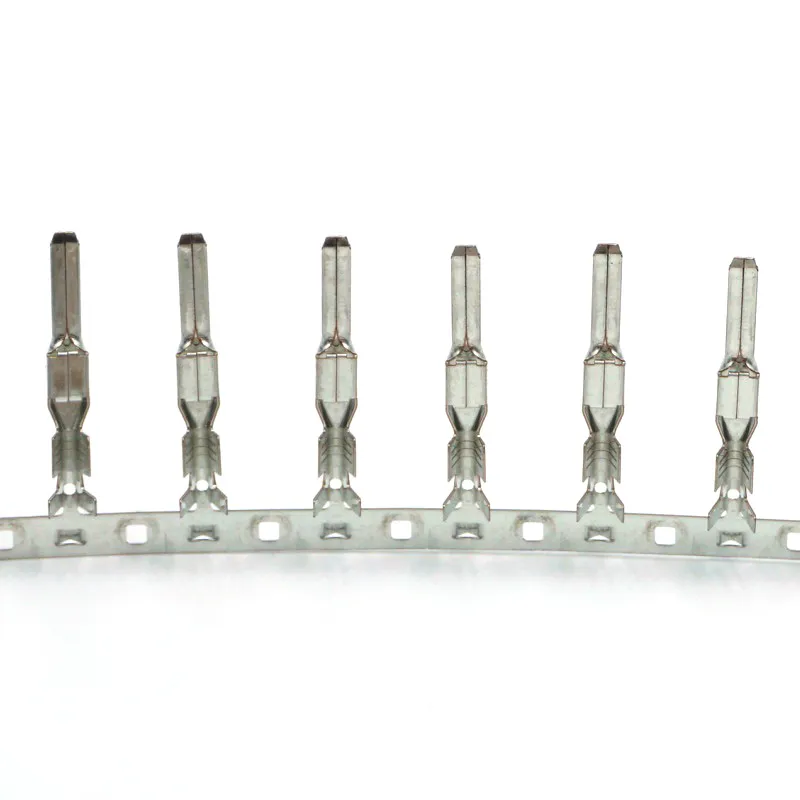

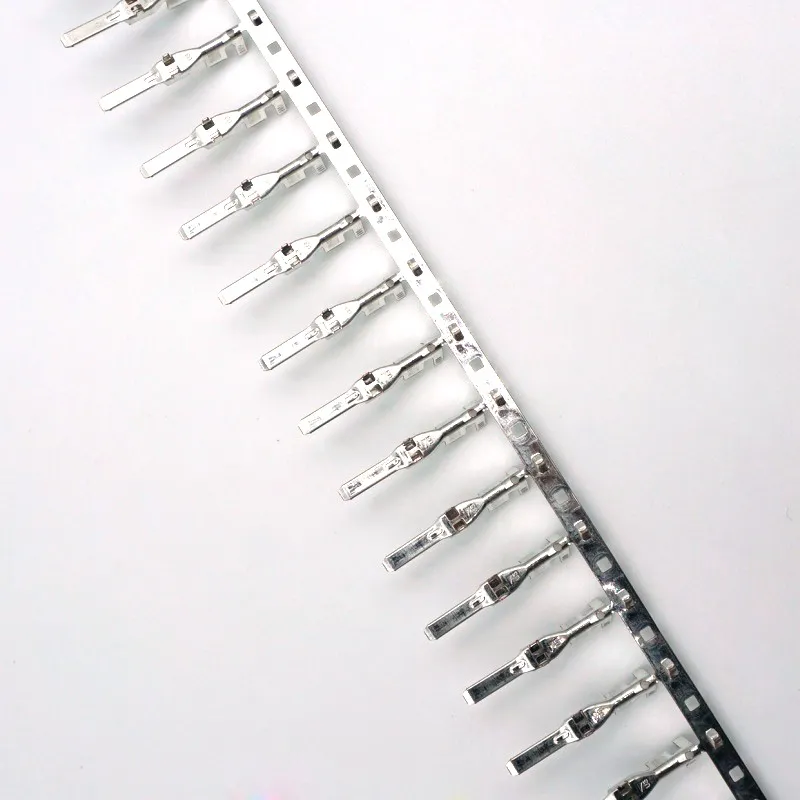

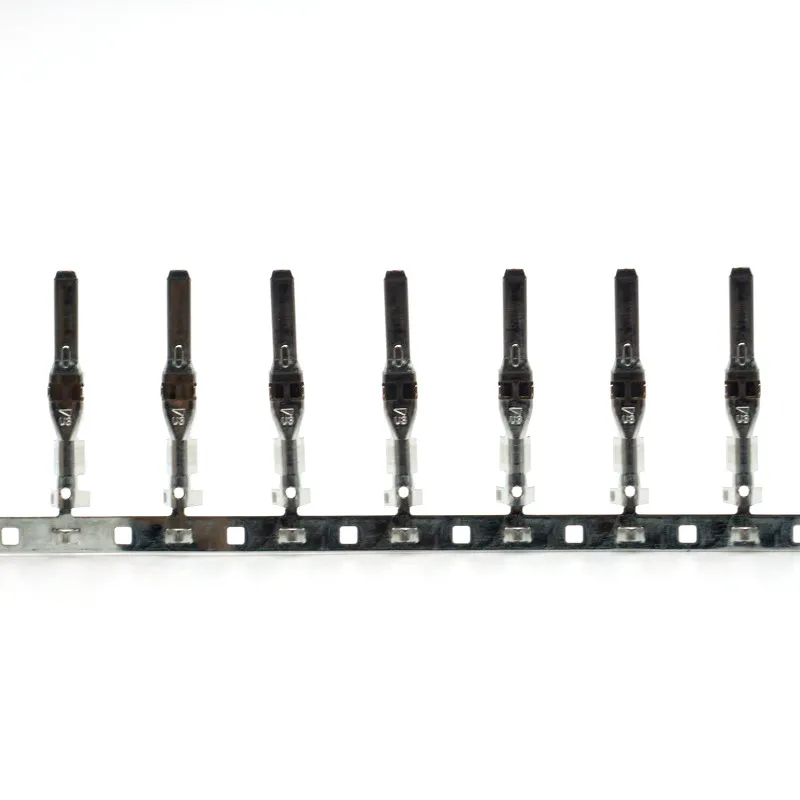

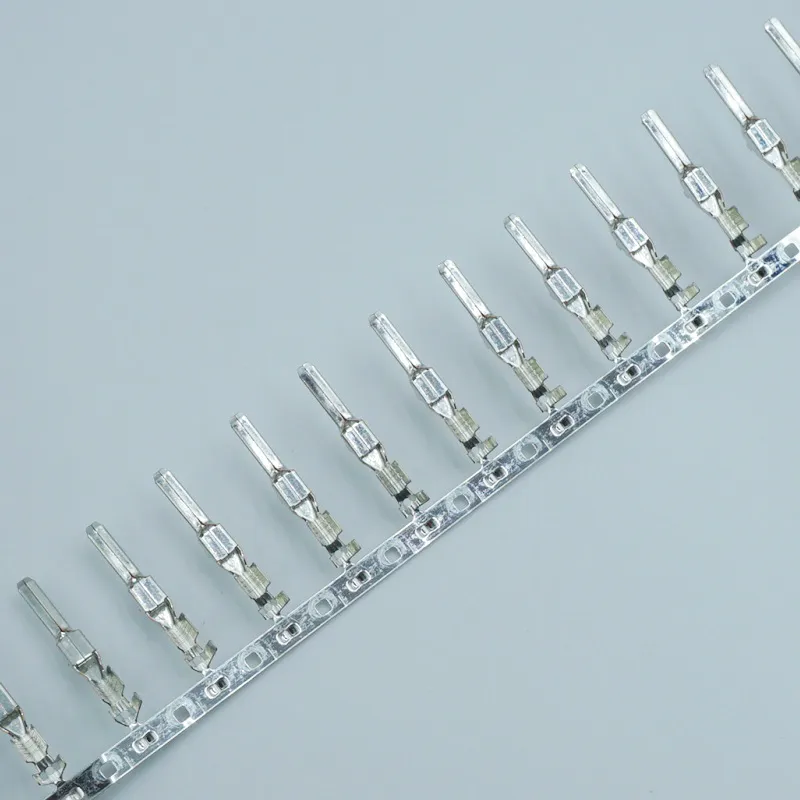

Yazaki 7114-4112-02 Connector Terminal
7114-4112-02 is a Yazaki 端子. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
7114-4112-02
Brand
Yazaki
Category
端子
Series
YES/YESC Kaizen连接器 2.8X0.8
Technical specifications
| Gender | Male |
|---|---|
| Brand region | International |
| Series | YES/YESC KaizenConnector 2.8X0.8 |
| Contact plating | Tin |
| Classified Parts | Terminal |
| Family | YES/YESC Kaizen Connector 2.8X0.8 |
| Mating Part Numbers | 7116-4112-02 |
| Unsealed/ Seald | Unsealed |
| Male/ Female | Male |
| Tab Size (Mm) | 2.8 |
| Materials | COPPER ALLOY |
| Size (Mm)( Outer Shape Of Parts) | Length |
| Length | 27.4 |
| Plating | Tin Plating |
| Width | 2.8 |
| Height | 0.8 |
| Electric Current Classification | MEDIUM |
| Allowable Current( Ref.) | 20A(Ref) |
| Low-Voltagelow-Currentresistance | 10milli ohm Max.(Initial) |
| Insulation Resistance | 20Megohm Min.(at 500VDC) |
| Withstand Voltage | 1000V AC (1min.) |
| Temperature Range | -40 to 100deg.C |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
