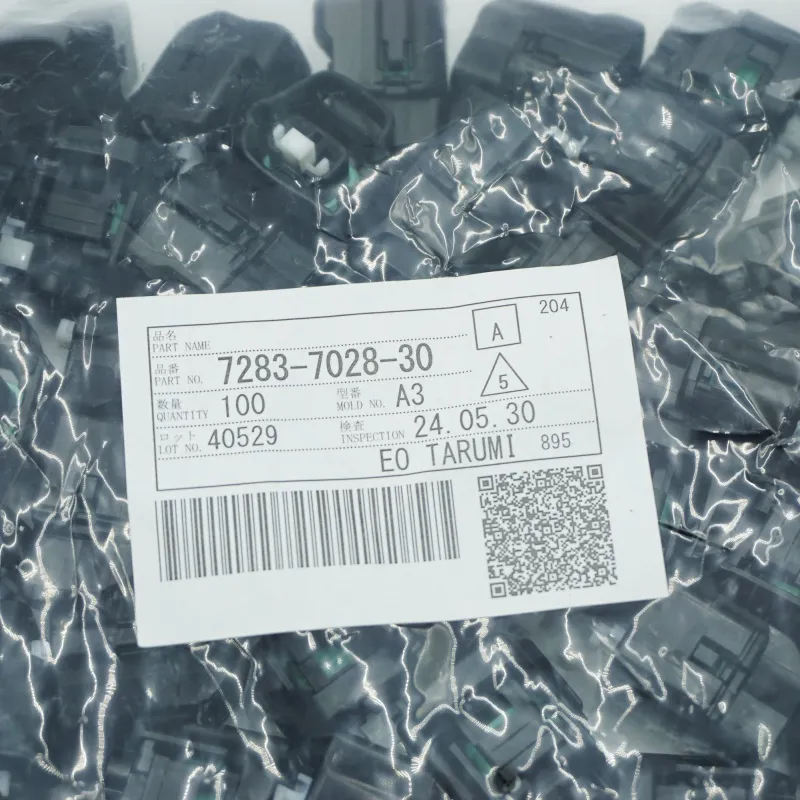

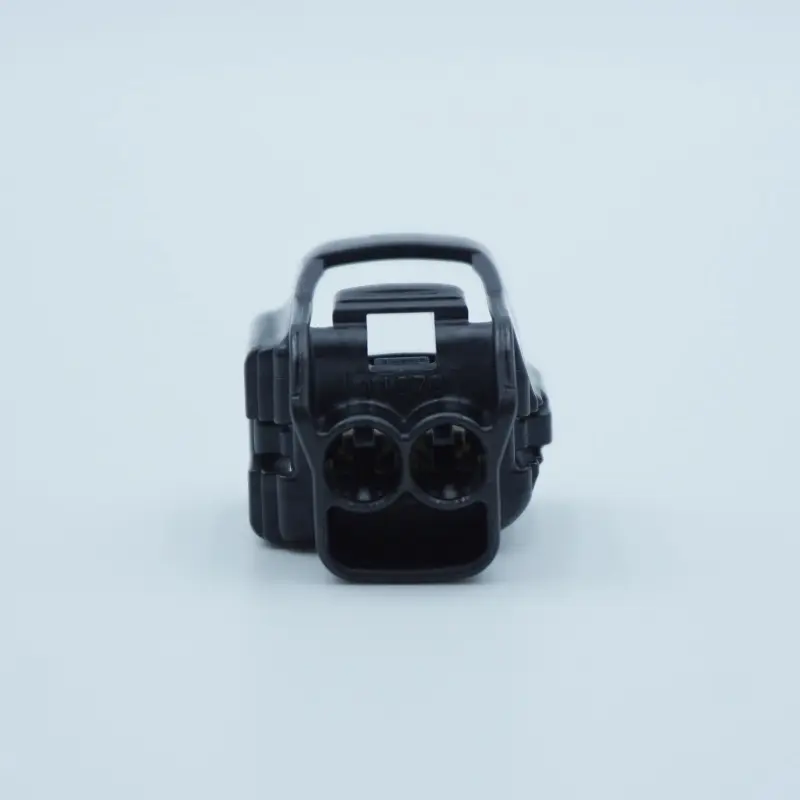

Yazaki 7283-7028-30 Electronic Component
7283-7028-30 is a Yazaki electronic component. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
7283-7028-30
Brand
Yazaki
Technical specifications
| Classified Parts | Housing |
|---|---|
| Family | 2.3II(090II) Connector |
| Replacement Part Number | 7287-7600-30 |
| Mating Part Numbers | 7282-7028-30 |
| Connection Type | Wire Harness Connector |
| Unsealed/ Seald | Sealed |
| Male/ Female | Female |
| Number Of Poles | 2 |
| Tab Size (Mm) | 2.3 |
| Materials | PBT |
| Size (Mm)( Outer Shape Of Parts) | Length |
| Length | 28.55 |
| Width | 22.85 |
| Color | BLACK |
| Height | 21.4 |
| Hybrid | NO |
| Clip Installation Structure | NO |
| Compatible Holesize (Mm) | Min |
| Compatible Platethickness (Mm) | Min |
| Electric Current Classification | MEDIUM |
| Handling Manual No. | YPES-15-2029 |
| Allowable Current( Ref.) | 10A(Ref) |
| Low-Voltagelow-Currentresistance | 3milli ohm Max.(Initial) |
| Insulation Resistance | 100Megohm Min.(at 500VDC) |
| Withstand Voltage | 1000V AC (1min.) |
| Temperature Range | -40 to 120deg.C |
| Note | 6.0mm pitch |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
