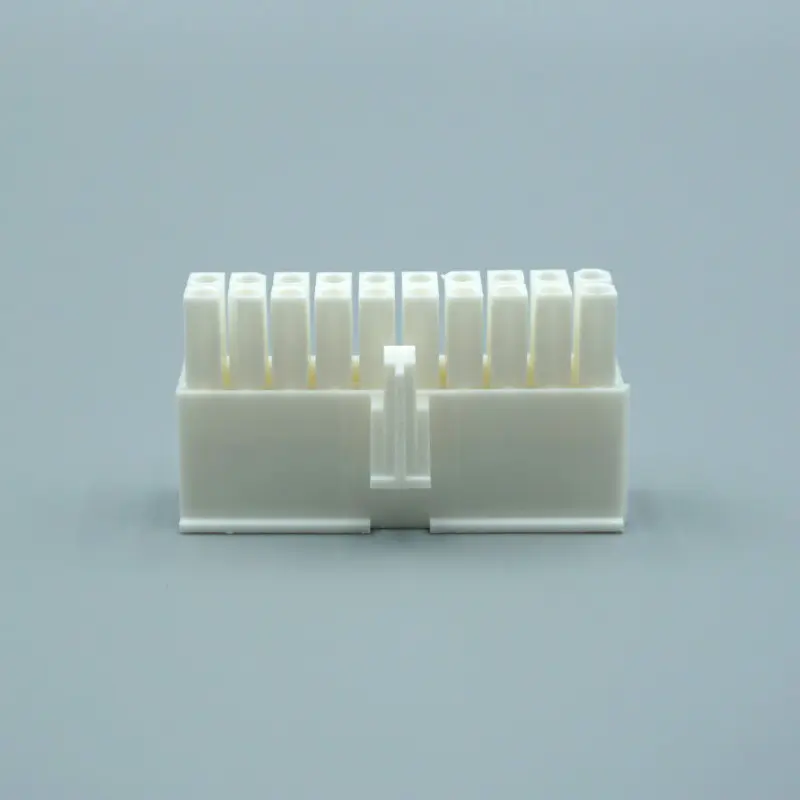

TE Connectivity 770585-1 Electrical Connector
770585-1 is a TE Connectivity Standard Rectangular Connectors. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
770585-1
Brand
TE Connectivity
Category
Standard Rectangular Connectors
Technical specifications
| Standard Pack Qty | 1 |
|---|---|
| Unit weight (kg) | 0.005216 |
| Connector Product Type | Housing |
| Connector & Housing Type | Plug |
| Termination Method To Wire & Cable | Crimp |
| Connector System | Wire-to-Wire |
| Contact Retention Within Housing | Without |
| Product Features & Characteristics | Select All |
| Sealable | No |
| Connector & Contact Terminates To | Wire & Cable |
| Number Of Positions | 20 |
| Number Of Rows | 2 |
| Operating Voltage ( V A C) | 600 |
| Operating Voltage ( V D C) | 600 |
| Primary Product Color | White |
| Multiple Contact Types | Without |
| Contact Type | Socket |
| Panel Mount Feature | Without |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Centerline ( Pitch) | 4.14 mm [ .162 in ] |
| Housing Material | Nylon |
| Row-To- Row Spacing | 4.14 mm [ .162 in ] |
| Operating Temperature Range | -20 – 105 °C [ -4 – 221 °F ] |
| Circuit Application | Power & Signal |
| C S A Rating | Certified | LR 7189 |
| Compatible With Approved Standards Products | UL E28476 |
| U L Rating | Recognized |
| Compatible With Agency/ Standards Products | CSA | UL |
| U L Flammability Rating | UL 94V-0 |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Packaging Quantity | 1 |
| Packaging Method | Package |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
Compliance information
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200090 |
| CAHTS | 8538903900 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | United States |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
