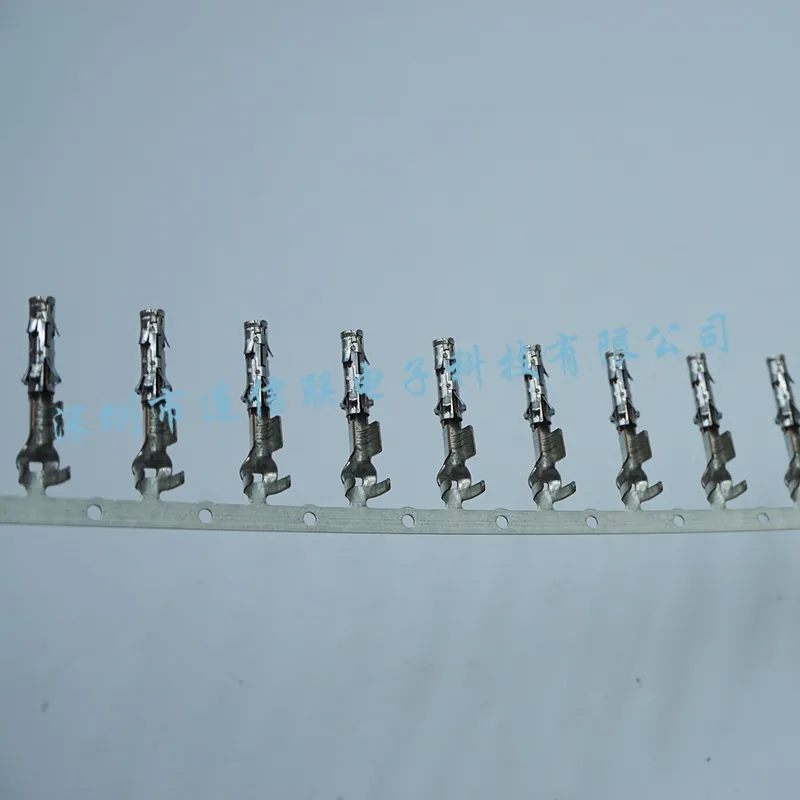

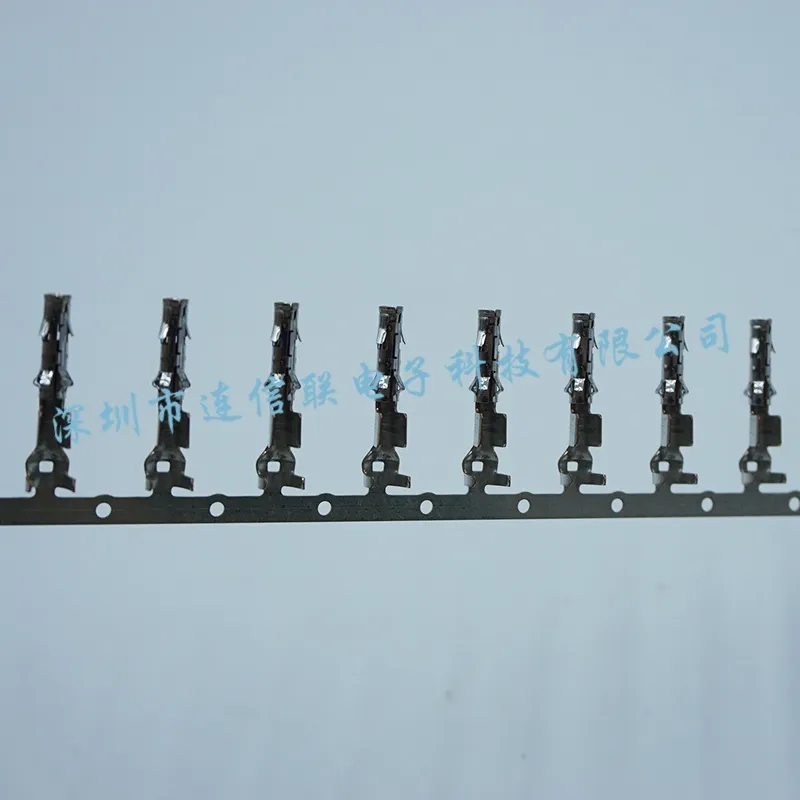

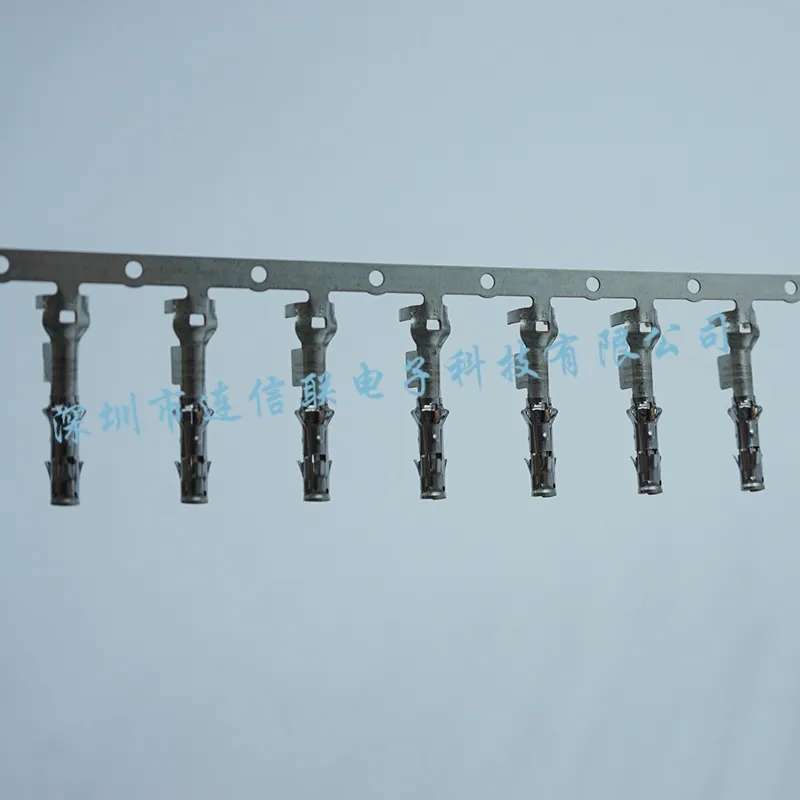

TE Connectivity 929990-1 Connector Terminal
929990-1 is a TE Connectivity Automotive Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
929990-1
Brand
TE Connectivity
Category
Automotive Terminals
Technical specifications
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 3800 |
| Unit weight (kg) | 0.000422 |
| Terminal Type | Socket |
| Wire Size ( A W G) | 17 – 13 |
| Wire Size (Mm²) | 1 – 2.5 |
| Interface Plating | Tin (Sn) |
| Primary Locking Feature | Locking Lance |
| Product Features & Characteristics | Select All |
| Receptacle Style | 180° |
| Sealable | Yes |
| Terminal Seal Type | Single Wire Seal (SWS) |
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.5mm |
| Crimp Type | F-Crimp |
| Typical Current Rating ( A) | 34 |
| Mating Pin Diameter | 1.5 mm [ .06 in ] |
| Termination Method To Wire & Cable | Crimp |
| Product Terminates To | Wire & Cable |
| Compatible Insulation Diameter Range | 2.2 – 3 mm [ .086 – .118 in ] |
| Wire Size Search (Mm²) | 1.01 | 1.3 | 1.65 | 2.08 | 2.63 |
| Wire Size Search ( A W G) | 13 | 14 | 15 | 16 | 17 |
| Tab Length | 20.7 mm [ .815 in ] |
| Insulation Option | Uninsulated |
| Operating Temperature ( Max) | 130 °C [ 266 °F ] |
| Operating Temperature Range | -40 – 130 °C [ -40 – 266 °F ] |
| Compatible With Wire Base Material | Copper |
| Packaging Quantity | 3800 |
| Packaging Method | Reel |
| Terminal Transmits | 25 – 40 A (Power) |
Ordering and packaging
| Minimum order quantity | 3800 |
|---|---|
| Order multiple | 3800 |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| MXHTS | 8536902800 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | Germany |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
