MG610557

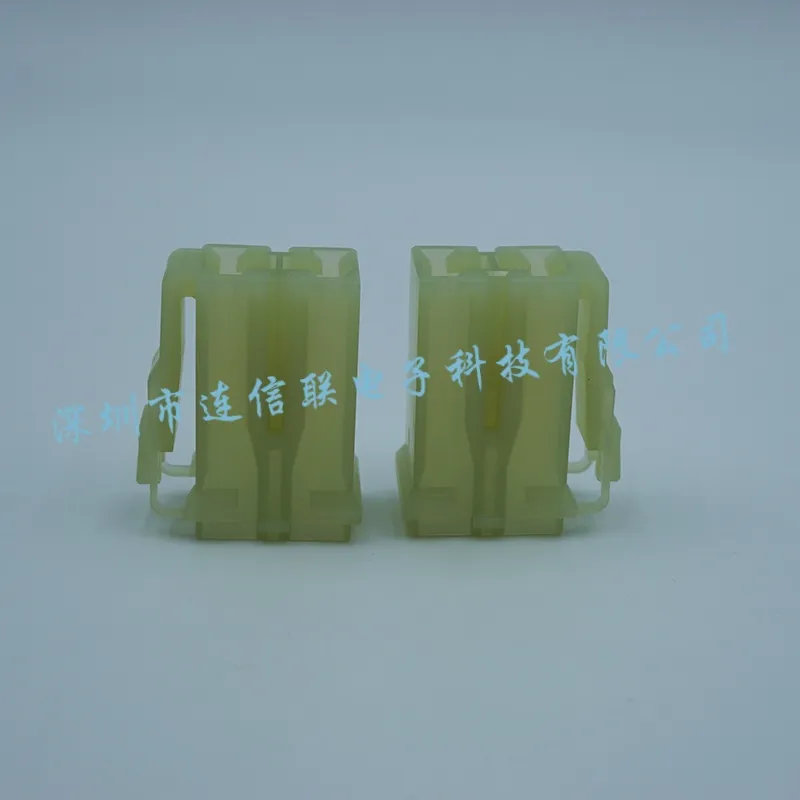

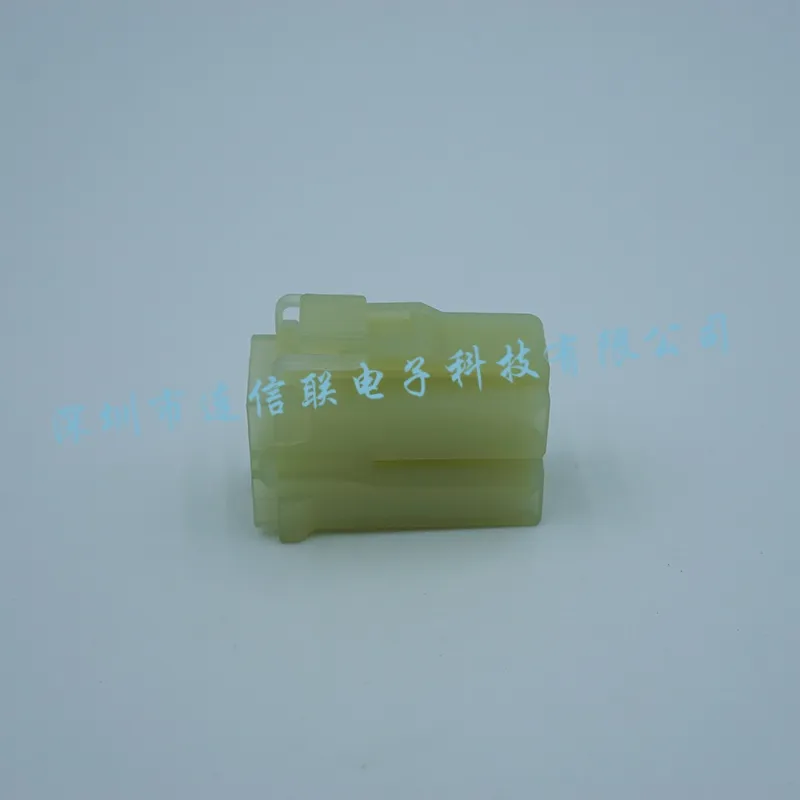

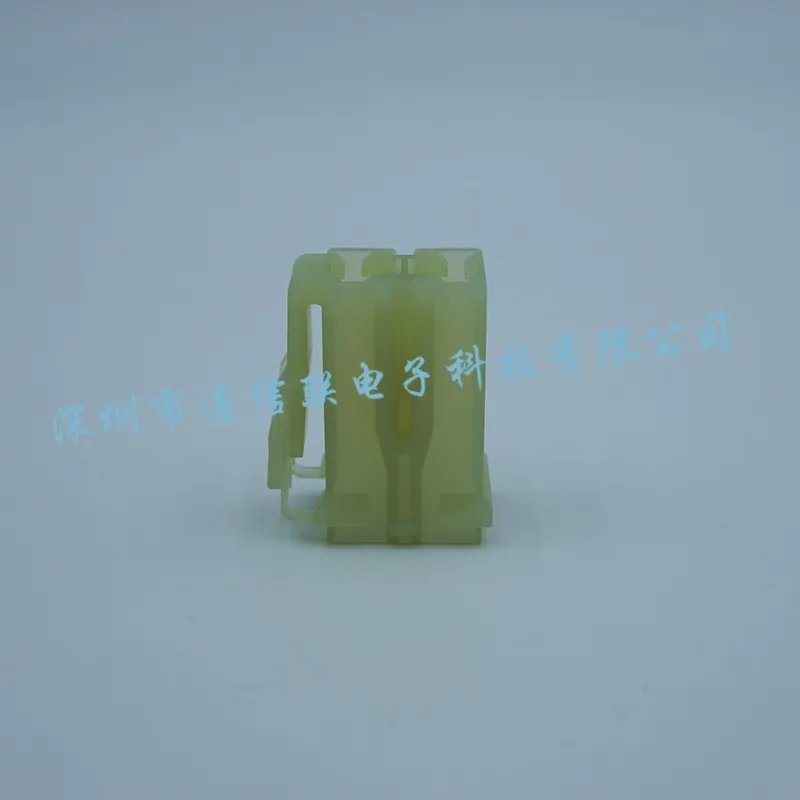

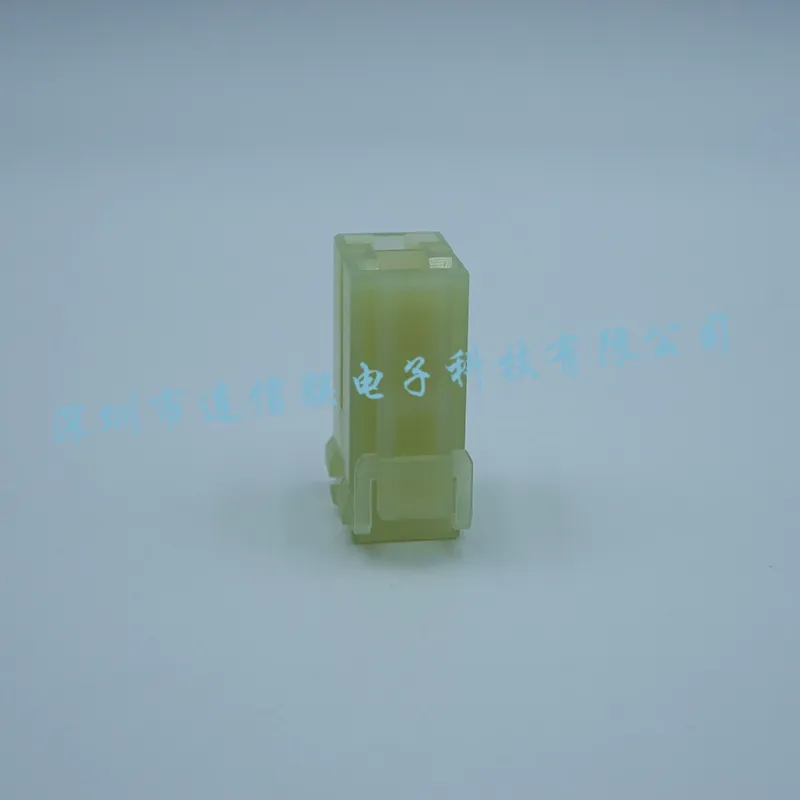

KET MG610557 Electrical Connector

MG610557 is a KET Wire-to-Wire Connectors. Review the verified specifications, packaging, compliance and availability information before ordering.

¥ 0.45 ¥ 0.45
Contact for quotation
  • Brand
  • Packaging
Add to cart
Add to wishlist
Sales and Website Terms
Price, availability, and lead time are subject to order confirmation
Contact Us
Hong Kong standard delivery: 17:00 cutoff, 3 business days handling + 3 business days transit, Monday–Friday, free shipping. View shipping policy
Brand：KET Category：Wire-to-Wire Connectors Series：375 Series

Product information

KET MG610557 Electrical Connector

MG610557 is a KET Wire-to-Wire Connectors. Review the verified specifications, packaging, compliance and availability information before ordering.

Part number

MG610557

Brand

KET

Category

Wire-to-Wire Connectors

Series

375 Series

Technical specifications

Pitch12.40mm
Brand regionInternational
Series375 SERIES
Number of positions2
TPAYES
Wire size (mm²)AVS 5.0~8.0,AV 8.0,AVS 3.0
Part NumberMG610557
Series375 SERIES
Material TypePA66
Dimensions16.2*34.0*28.1
SealedNO
ColorNatural
Primary Locking TypeHSG Lance
Number Of Poles2
T P AYES
Connector Position AssuranceNO
Mating Rear HolderMG630656-4
Mating TerminalST730722-3
Mating ConnectorMG620558
Pitch(Mm)12.4
Mating Tab Width(In).375
Wire Rangeavs 5.0~8.0,av 8.0,avs 3.0
Insulation ResistanceDC 500V 100MΩ MIN
Contact Resistance2mΩ MAX
Terminal Transmits( A)60

Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
