MG620407

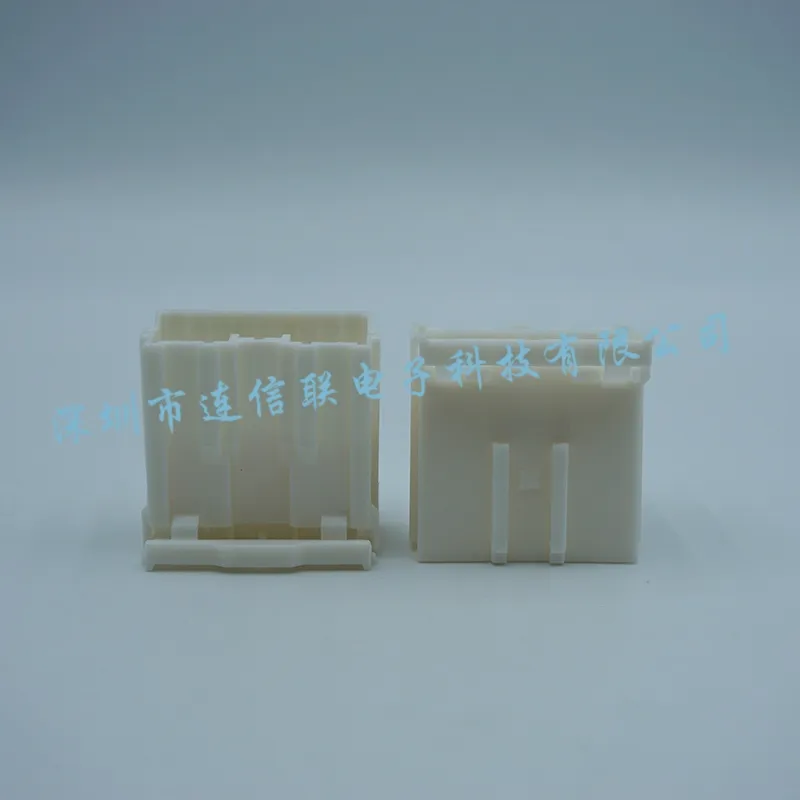

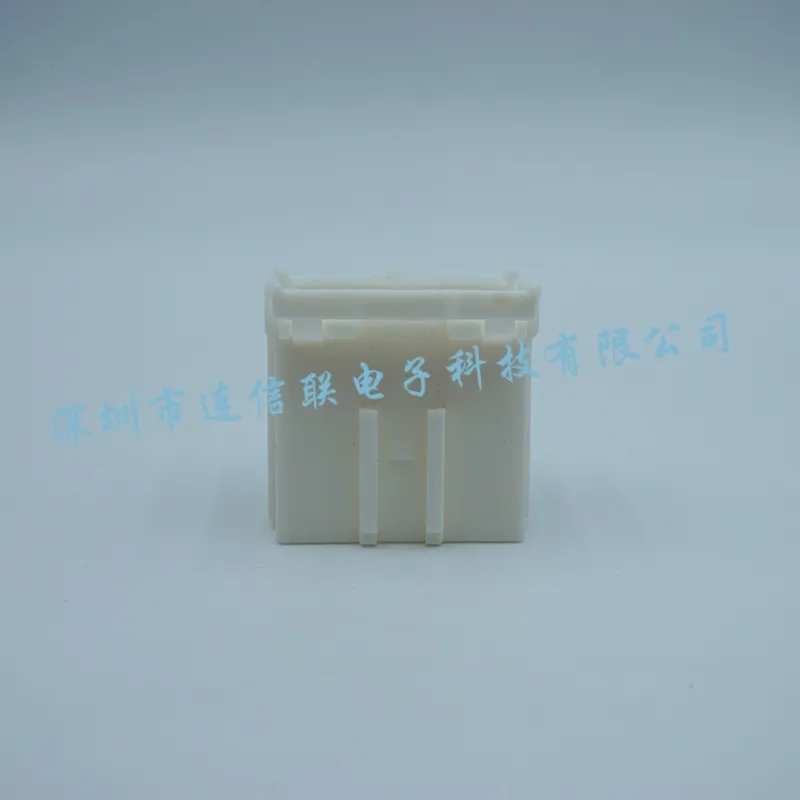

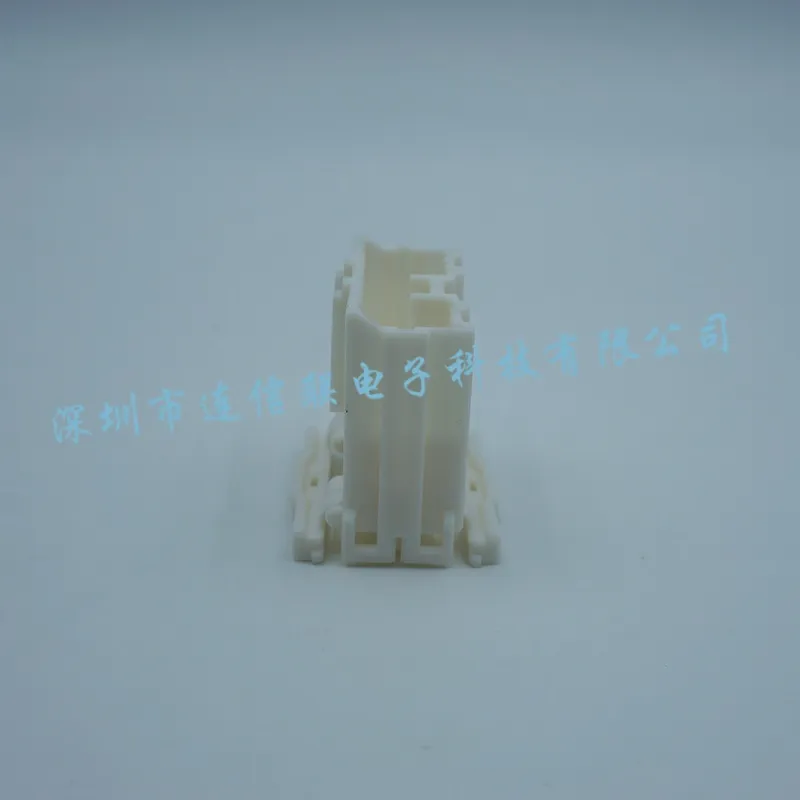

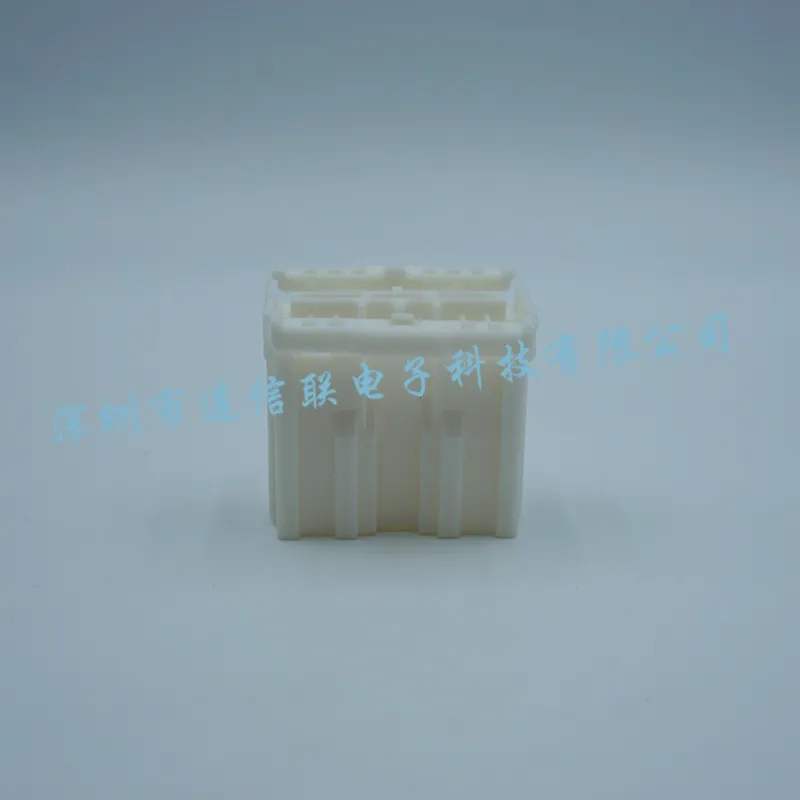

KET MG620407 Electrical Connector

MG620407 is a KET Wire-to-Wire Connectors. Review the verified specifications, packaging, compliance and availability information before ordering.

¥ 0.90 ¥ 0.90
Contact for quotation
  • Brand
  • Packaging
Add to cart
Add to wishlist
Sales and Website Terms
Price, availability, and lead time are subject to order confirmation
Contact Us
Hong Kong standard delivery: 17:00 cutoff, 3 business days handling + 3 business days transit, Monday–Friday, free shipping. View shipping policy
Brand：KET Category：Wire-to-Wire Connectors Series：SDL Series

Product information

KET MG620407 Electrical Connector

MG620407 is a KET Wire-to-Wire Connectors. Review the verified specifications, packaging, compliance and availability information before ordering.

Part number

MG620407

Brand

KET

Category

Wire-to-Wire Connectors

Series

SDL Series

Technical specifications

Pitch3.50mm
Brand regionInternational
SeriesSDL SERIES
Number of positions14
TPAYES
Wire size (mm²)AVSS 0.3~0.85,AVSS 1.25~2.0
Part NumberMG620407
SeriesSDL SERIES
Material TypePBT
Dimensions36.6*36.0*18.8
SealedNO
ColorNatural
T P AYES
Primary Locking TypeHSG Lance
Number Of Poles14
Mating ConnectorMG610406
Mating TerminalST740484-3, ST740485-3
Mating ClipMG630418, MG630559, MG631467, MG630922, MG633061, MG633713, MG634647
Pitch(Mm)3.5
Mating Tab Width(In).070
Wire Rangeavss 0.3~0.85,avss 1.25~2.0
Insulation ResistanceDC 500V 100MΩ MIN
Contact Resistance3mΩ MAX

Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
