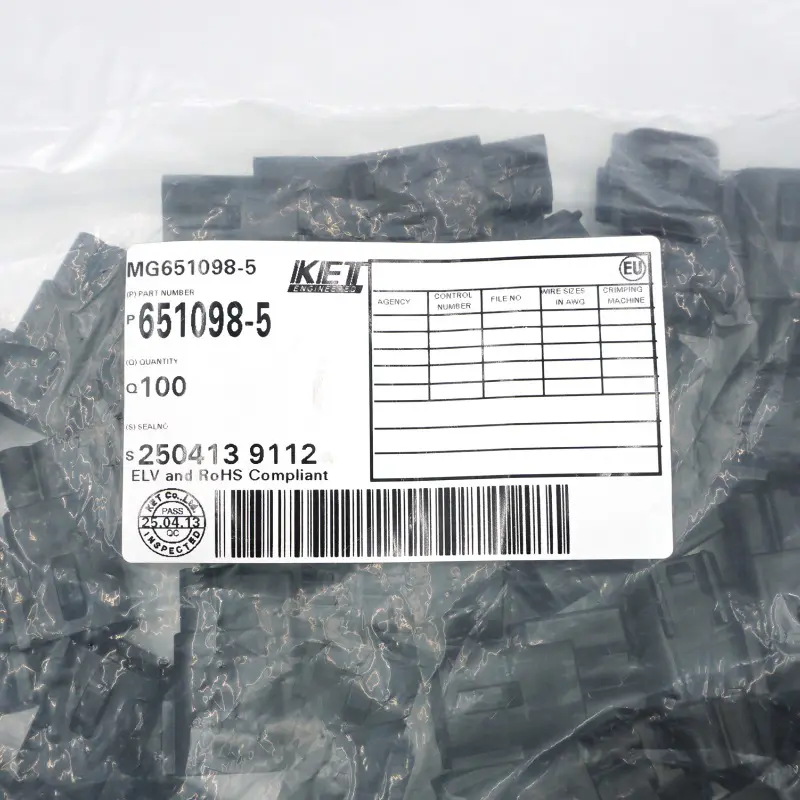

KET MG651098-5 Electrical Connector
MG651098-5 is a KET Wire To Wire Connector. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
MG651098-5
Brand
KET
Category
Wire To Wire Connector
Series
090 II SERIES
Technical specifications
| Pitch | 6.00mm |
|---|---|
| Brand region | International |
| Series | 090 II SERIES |
| Number of positions | 4 |
| TPA | YES |
| Wire size (mm²) | AVS(CAVS) 0.3-0.5,AVS(CAVS) 0.85-1.25,AVSS 2.0 |
| Part Number | MG651098-5 |
| Series | 090 II SERIES |
| Dimensions | 20.4*37.2*24.7 |
| Material Type | PBT |
| Sealed | YES |
| Color | Black |
| Primary Locking Type | HSG Lance |
| T P A | YES |
| Number Of Poles | 4 |
| Mating Terminal | h730623-3 |
| Mating Connector | MG641101-5 |
| Pitch(Mm) | 6 |
| Mating Tab Width(In) | .090 |
| Wire Range | avs(cavs) 0.3-0.5,avs(cavs) 0.85-1.25,avss 2.0 |
| Insulation Resistance | DC 500V 100MΩ MIN |
| Contact Resistance | 3mΩ MAX (Initial) |
| Terminal Transmits( A) | 10 |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
