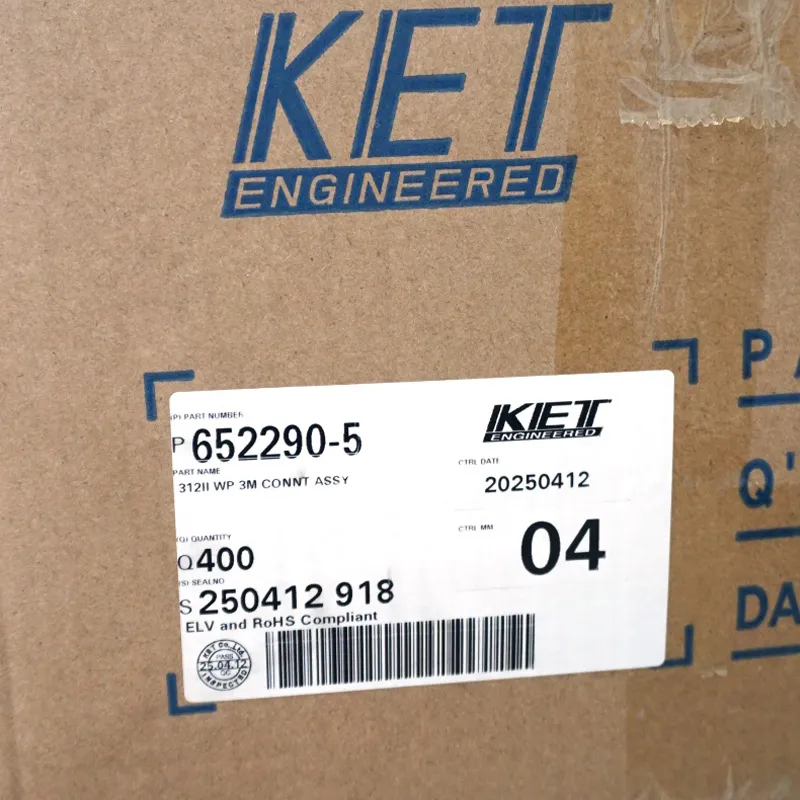

KET MG652290-5 Electrical Connector
MG652290-5 is a KET Wire To Wire Connector. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
MG652290-5
Brand
KET
Category
Wire To Wire Connector
Series
312 II SERIES
Technical specifications
| Pitch | 12.40mm |
|---|---|
| Brand region | International |
| Series | 312 II SERIES |
| Number of positions | 3 |
| TPA | YES |
| Wire size (mm²) | AVS1.25,AVS2.0~3.0,AVS5.0 |
| Part Number | MG652290-5 |
| Series | 312 II SERIES |
| Dimensions | 37.4*49.7*43.2 |
| Material Type | PBT |
| Sealed | YES |
| Color | Black |
| Primary Locking Type | HSG Lance |
| T P A | YES |
| Number Of Poles | 3 |
| Mating Clip | MG631970, MG631984, MG632729 |
| Mating Terminal | ST740653-3, ST740654-3, ST740655-3 |
| Mating Connector | MG642292 |
| Pitch(Mm) | 12.4 |
| Mating Tab Width(In) | .312 |
| Wire Range | avs1.25,avs2.0~3.0,avs5.0 |
| Insulation Resistance | DC 500V 100MΩ MIN |
| Contact Resistance | 3mΩ MAX (Initial) |
| Terminal Transmits( A) | 42 |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
