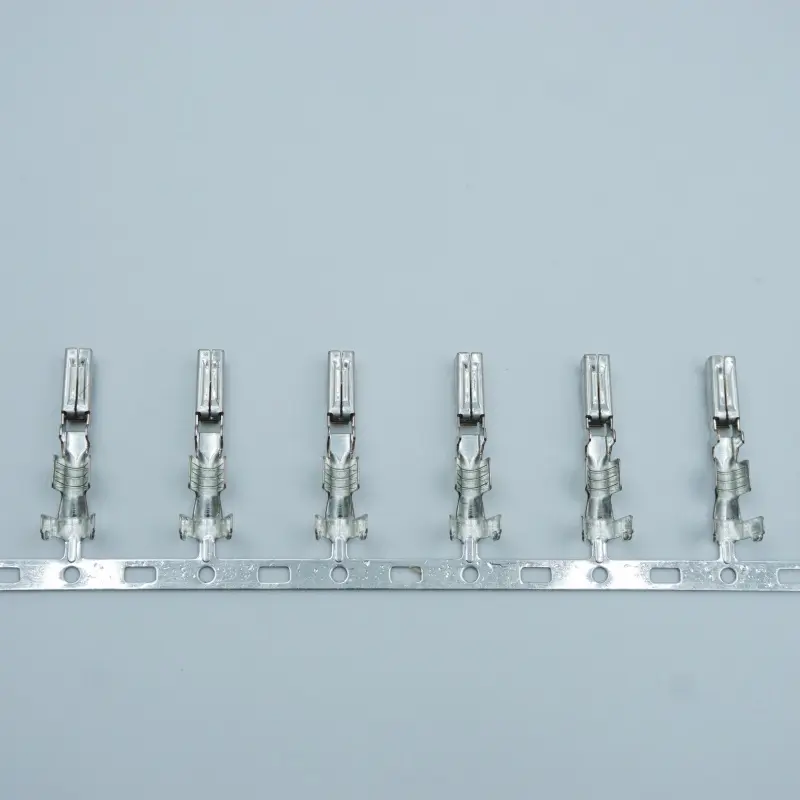

KET ST730496-3 Automotive
ST730496-3 is a KET Automotive. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
ST730496-3
Brand
KET
Category
Automotive
Series
SWP SERIES
Technical specifications
| Brand region | International |
|---|---|
| Series | SWP SERIES |
| Wire size (mm²) | 1.25 mm²,2 mm² |
| Contact plating | Tin |
| Part Number | ST730496-3 |
| Series | SWP SERIES |
| Material Type | Copper Alloy |
| Dimensions | 18.7*2.7*2.8 |
| Plating | Pre-Tin |
| Sealed | YES |
| Primary Locking Type | HSG Lance |
| Mating Wire Seal | MG680451 |
| Mating Tab Width(In) | .070 |
| Terminal Type | Straight-Side |
| Wire Range | avs,avs,aex,avx 1.25, avss 2.0 |
| Insulation Range | 2.5-2.7 |
| Terminal Transmits( A) | 9 |
| Contact Resistance | 3mΩ MAX |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
