Product information

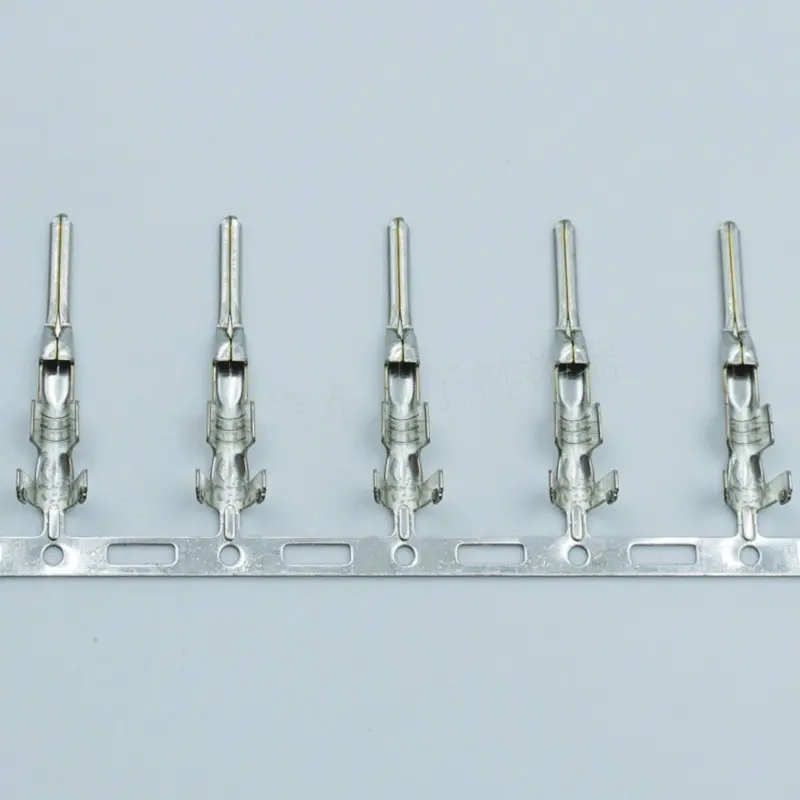

KET ST740483-3 Automotive
ST740483-3 is a KET Automotive Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
ST740483-3
Brand
KET
Category
Automotive Terminals
Series
SWP Series
Technical specifications
| Brand region | International |
|---|---|
| Series | SWP SERIES |
| Wire size (mm²) | 1.25 mm²,2 mm²,1 mm²,1.5 mm² |
| Contact plating | Tin |
| Part Number | ST740483-3 |
| Series | SWP SERIES |
| Material Type | Brass |
| Dimensions | 23.4*2.7*2.2 |
| Plating | Pre-Tin |
| Sealed | YES |
| Tab Thickness(Mm) | 0.64 |
| Mating Wire Seal | MG680449, MG680450, MG680451 |
| Mating Tab Width(In) | .070 |
| Terminal Type | Straight-Side |
| Terminal Transmits( A) | 9 |
| Insulation Range | 1.9-2.4 |
| Wire Range | avss 1.25, 2.0, flry-b 1.0, 1.5 |
| Contact Resistance | 3mΩ MAX |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
