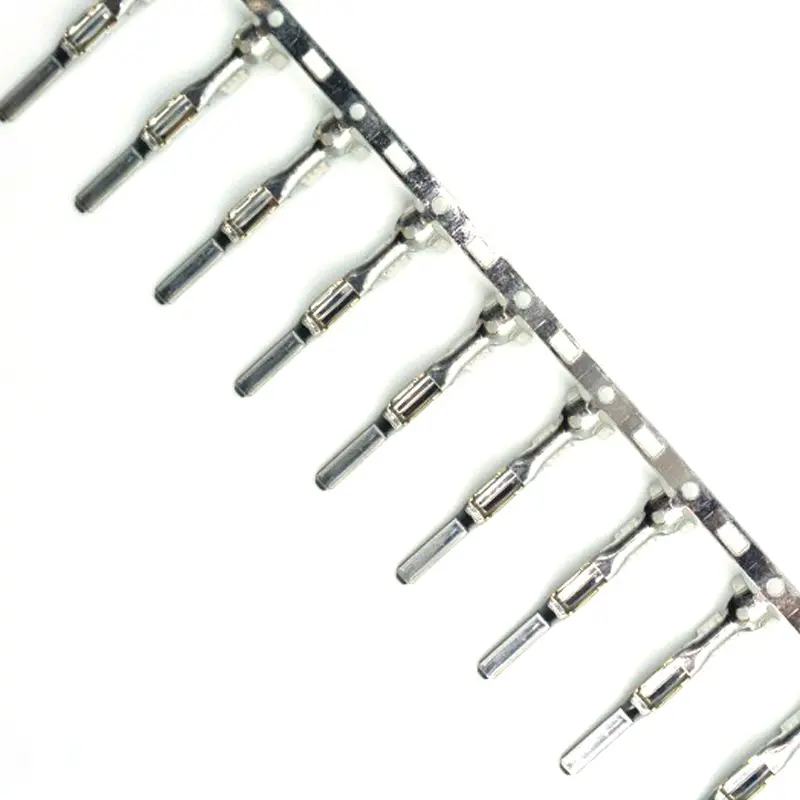

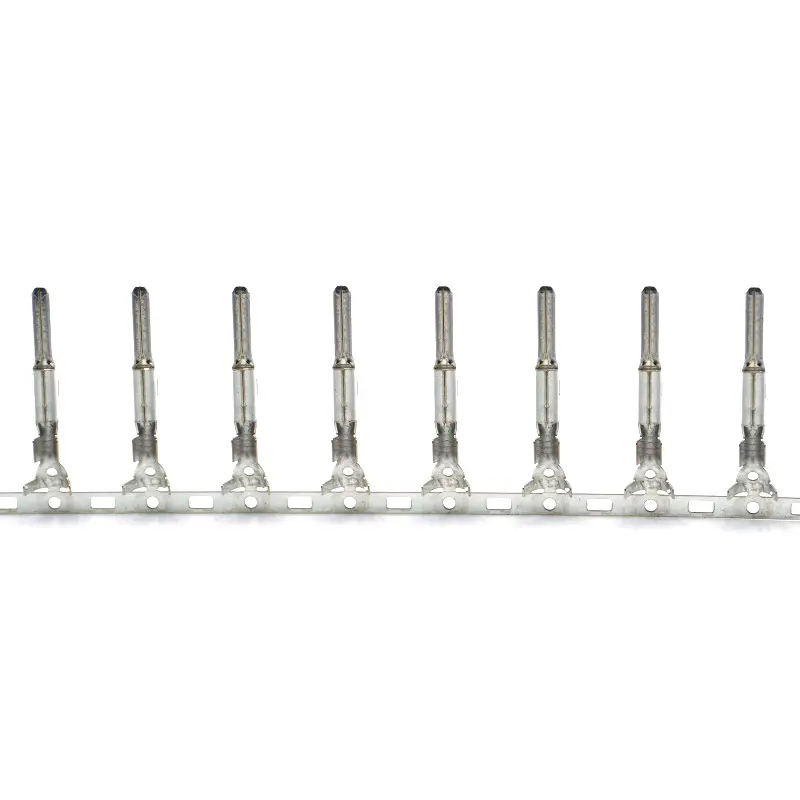

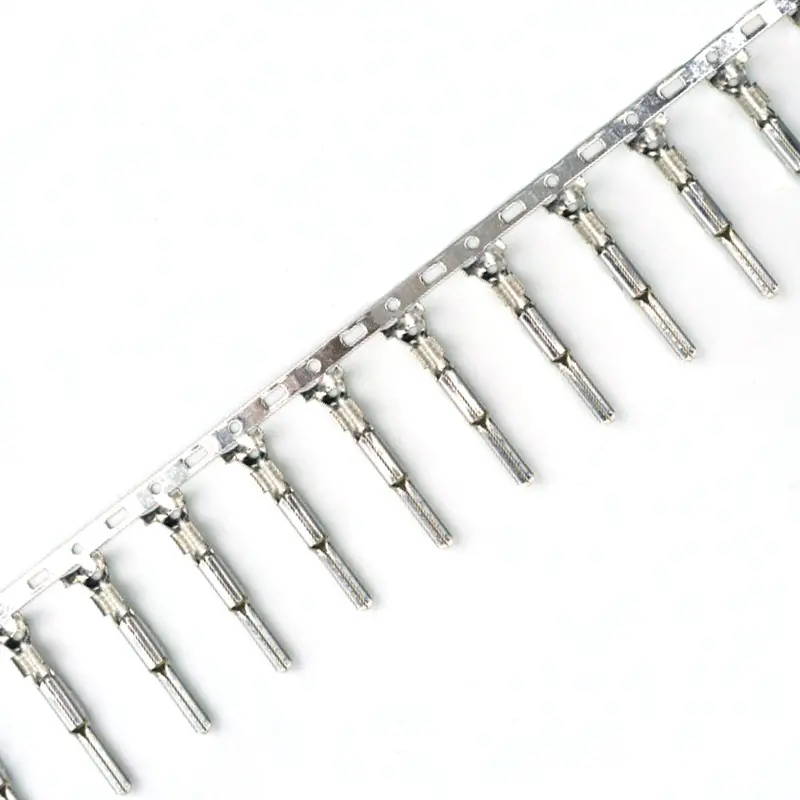

KET ST740687-3 Automotive
ST740687-3 is a KET Automotive. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
ST740687-3
Brand
KET
Category
Automotive
Series
090 II SERIES
Technical specifications
| Brand region | International |
|---|---|
| Series | 090 II SERIES |
| Wire size (mm²) | 0.85 to 1.25 mm² |
| Contact plating | Tin |
| Part Number | ST740687-3 |
| Series | 090 II SERIES |
| Material Type | Brass |
| Dimensions | 2.3*25.9*0.64 |
| Plating | Pre-Tin |
| Sealed | YES |
| Tab Thickness(Mm) | 0.64 |
| Mating Wire Seal | MG681115 |
| Mating Tab Width(In) | .090 |
| Terminal Type | Straight-Side |
| Terminal Transmits( A) | 10 |
| Insulation Range | 2.2-2.6 |
| Wire Range | avss[cavs]0.85-1.25 |
| Contact Resistance | 3mΩ MAX |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
