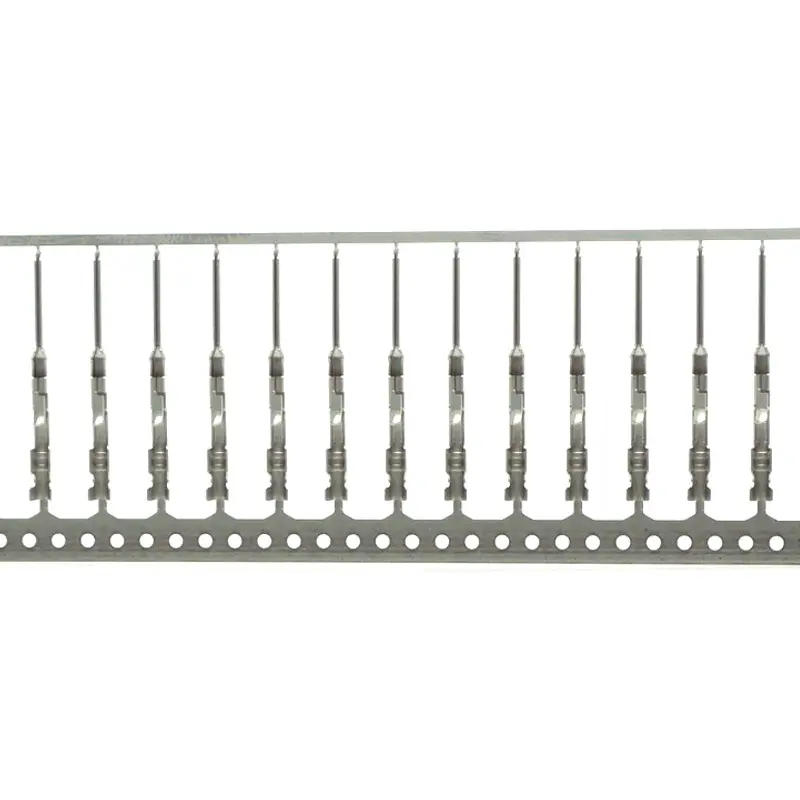

16-02-0107
16-02-0107 是 Molex 的 Products>Connectors>PCB / Wire Connectors>Crimp Terminals产品。适用信息：Wire-to-Wire。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Molex
制造商
Molex
产品类别
Products>Connectors>PCB / Wire Connectors>Crimp Terminals
技术参数
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 20000 |
| 单位重量（kg） | 9.4e-05 |
| 接口性别 | Male |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| 净重 | 142.500/mg |
| Packaging Alternative Part | {'productNumber': '0016020114', 'packagingType': 'Bag'} |
| Plating Min Mating | 3.810µm |
| Plating Min Termination | 3.810µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.63mm max. |
| Wire Size Awg | 22、24 |
| Wire Size Mm | N/A |
采购与包装
| 最小订购量 | 20000 |
|---|---|
| 订购倍数 | 20000 |
| 工厂库存 | 0 |
| 建议替代型号 | 538-16-02-0114 |
| 替代包装型号 | 16-02-0107 (Mouser Reel)、16-02-0107 (Cut Strip) |
| 包装类型 | Reel |
合规信息
| CNHTS | 8538900000 |
|---|---|
| TARIC | 8536699099 |
| CAHTS | 8536690020 |
| USHTS | 8536904000 |
| JPHTS | 853669000 |
| KRHTS | 8536691000 |
| MXHTS | 8536699999 |
| BRHTS | 85366990 |
| ECCN | EAR99 |
| Country of Origin | Malaysia |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44; 33 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Not Relevant |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
配套关系
| 配套系列 | 70066 - SL Single Row Crimp Housings and CPA Retainers、70107 - SL Single Row Crimp Housings |
|---|
其他信息
| 产品状态 | Active |
|---|---|
| 原产国 | HK,MY,US |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
