产品资料

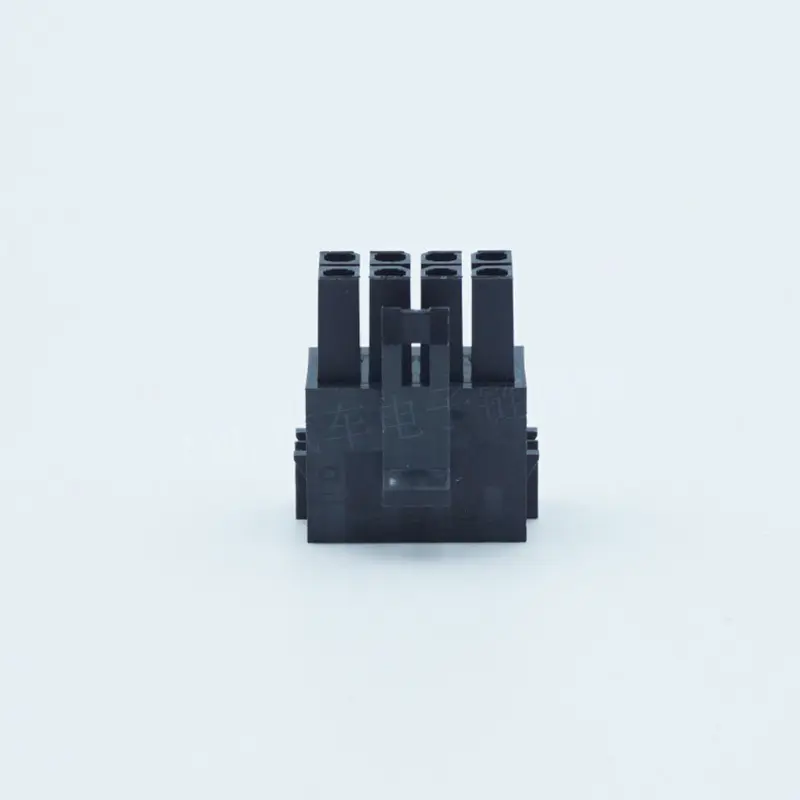

206461-0800
206461-0800 是 Molex 的 Products>Connectors>PCB / Wire Connectors>Connector Housings产品。适用信息：Wire-to-Board、Wire-to-Wire。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Molex
制造商
Molex
产品类别
Products>Connectors>PCB / Wire Connectors>Connector Housings
技术参数
| Standard Pack Qty | 2000 |
|---|---|
| 单位重量（kg） | 0.0009 |
| 最大回路数 | 8 |
| 颜色 | Black |
| Flammability | 94V-0 |
| 接口性别 | Receptacle |
| 耐灼热丝 | Yes |
| 配接防错键 | Yes |
| 配接锁定 | Yes |
| 树脂材料 | Nylon |
| 净重 | 0.825/g |
| 排数 | 2 |
| 面板安装 | No |
| 配接间距 | 3.00mm |
| Pitch Termination Interface | 3.00mm |
| 配接极性 | Yes |
| 工作温度范围 | -40° to +125°C |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
| 包装类型 | Bag |
合规信息
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200000 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| GADSL/IMDS | Not Relevant |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Not Relevant |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Contains 1,1'-(Ethane-1,2-diyl)bis[pentabromobenzene] per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
| CSA | LR19980 |
| UL | E29179 |
配套关系
| 配接系列 | 206832 - Micro-Fit+ Vertical, Dual Row, Through Hole Headers、212528 - Micro-Fit+ Right-Angle, Dual Row, Through Hole Headers、218216 - Micro-Fit+ Dual Row Surface Mount Headers、224246 - Micro-Fit+ Versa Color Vertical, Dual Row, Through Hole Headers、215922 - Micro-Fit+ Dual Row Plug Housings |
|---|---|
| 配套系列 | 206460 - Micro-Fit+ Female Crimp Terminals、206462 - Micro-Fit+ Terminal Position Assurance (TPA) Retainers |
其他信息
| 产品状态 | Active |
|---|---|
| 原产国 | CN |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
