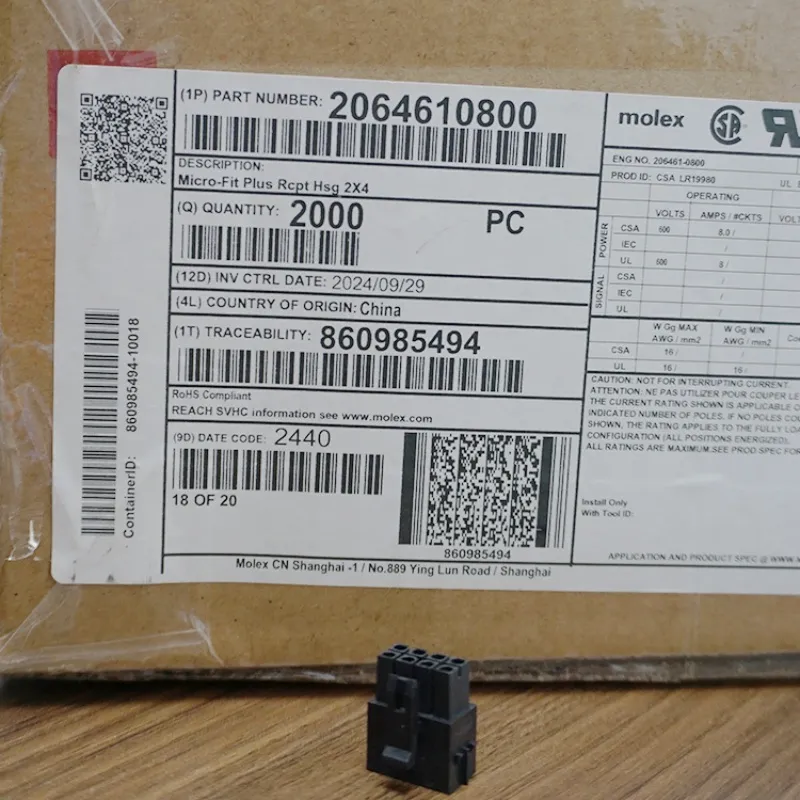

Molex 206461-0800 Connector Housing
206461-0800 is a Molex Connector Housings. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
206461-0800
Brand
Molex
Category
Connector Housings
Technical specifications
| Standard Pack Qty | 2000 |
|---|---|
| Unit weight (kg) | 0.0009 |
| Maximum circuits | 8 |
| Color | Black |
| Flammability | 94V-0 |
| Interface gender | Receptacle |
| Glow-wire capable | Yes |
| Mating keying | Yes |
| Mating lock | Yes |
| Resin material | Nylon |
| Net weight | 0.825/g |
| Number of rows | 2 |
| Panel mount | No |
| Mating pitch | 3.00mm |
| Pitch Termination Interface | 3.00mm |
| Mating polarization | Yes |
| Operating temperature | -40° to +125°C |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
| Packaging type | Bag |
Compliance information
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200000 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Not Relevant |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Not Relevant |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Contains 1,1'-(Ethane-1,2-diyl)bis[pentabromobenzene] per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
| CSA | LR19980 |
| UL | E29179 |
Mating and related products
| Mating series | 206832 - Micro-Fit+ Vertical, Dual Row, Through Hole Headers、212528 - Micro-Fit+ Right-Angle, Dual Row, Through Hole Headers、218216 - Micro-Fit+ Dual Row Surface Mount Headers、224246 - Micro-Fit+ Versa Color Vertical, Dual Row, Through Hole Headers、215922 - Micro-Fit+ Dual Row Plug Housings |
|---|---|
| Use-with series | 206460 - Micro-Fit+ Female Crimp Terminals、206462 - Micro-Fit+ Terminal Position Assurance (TPA) Retainers |
Additional information
| Product status | Active |
|---|---|
| Country of origin | CN |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
