产品资料

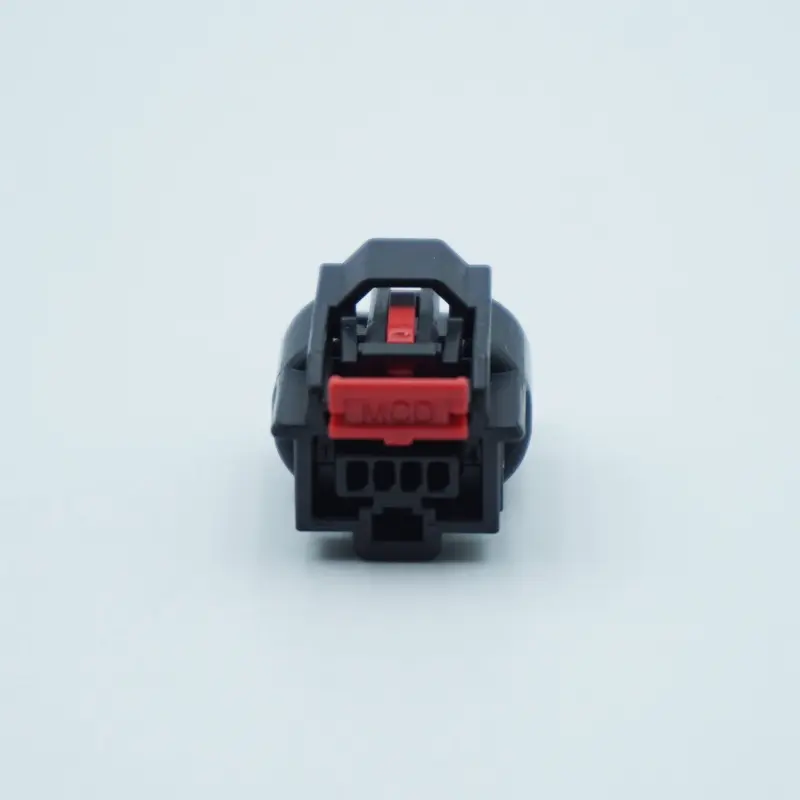

34967-4001
34967-4001 是 Molex 的 Products>Connectors>PCB / Wire Connectors>Connector Housings产品。适用信息：Automotive、Sealed、Wire-to-Board。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Molex
制造商
Molex
产品类别
Products>Connectors>PCB / Wire Connectors>Connector Housings
技术参数
| 产品状态 | 在售 |
|---|---|
| 产品间距 | 1.80mm |
| 公端/母端 | 母端 |
| 包装方式 | 袋 |
| 品牌归属地 | 国际 |
| 排数 | 1 |
| 系列 | 34967、34967 |
| 针位数 | 4 |
| 一级应用 | Automotive |
| 二级应用 | Power Connectors, Mini50 Connection Systems, Wire-to-Board Connectors |
| 产品名称 | Mini50 Sealed |
| 产品系列 | Mini50 Connection Systems |
| 可堆叠的 | No |
| 工作温度范围 | -40° to +105°C, -40° to +125°C |
| 应用 | Automotive, Power, Sealed, Wire-to-Board |
| 插接极性 | Yes |
| 有极性的插配件 | Yes |
| 树脂材料 | SPS/Nylon |
| 树脂颜色 | Black |
| 相关系列 | Molex does not manufacture the mating header interface. To provide you with maximum design flexibility, we include the interface specification drawing with the part drawing, and a 3D model is available at the following URL so that you may design the interface into your device as you require: COMING SOON |
| 符合灼热丝规范 | No |
| 类别 | Connector Housings |
| 说明 | Mini50 Sealed Receptacle, Single Row, with CPA, 4 Circuits, Polarization Option A, Black、-40°C to +105°C operating temperature for tin terminals; -40°C to +125°C operating temperature for silver terminals |
| 重量 | 2.765/g |
| 锁定插接部位 | Yes |
| 间距 - 终端界面 | 1.80mm |
| 面板安装式 | No |
| Standard Pack Qty | 2400 |
| 单位重量（kg） | 0.003453 |
| 最大回路数 | 4 |
| 颜色 | Black |
| 接口性别 | Receptacle |
| 耐灼热丝 | No |
| 配接防错键 | Yes |
| 配接锁定 | Yes |
| 净重 | 3.300/g |
| 面板安装 | No |
| 配接间距 | 1.80mm |
| Pitch Termination Interface | 1.80mm |
| Polarization | A |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
| 包装类型 | Bag |
合规信息
| REACH-SVHC | Dodecamethylcyclohexasiloxane [D6] (540-97-6)、Decamethylcyclopentasiloxane [D5] (541-02-6)、Octamethylcyclotetrasiloxane [D4] (556-67-2) |
|---|---|
| CNHTS | 8538900000 |
| TARIC | 8547200090 |
| CAHTS | 8538909090 |
| USHTS | 8538906000 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| GADSL/IMDS | Compliant |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Contains Dodecamethylcyclohexasiloxane; Decamethylcyclopentasiloxane; Octamethylcyclotetrasiloxane per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
配套关系
| 配套系列 | 34905 - CTX50 Sealed Receptacle Terminals |
|---|
其他信息
| 产地 | 中国/CHN批量参考批次： |
|---|---|
| 品名 | 塑壳 |
| 原产国 | CN |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
