产品资料

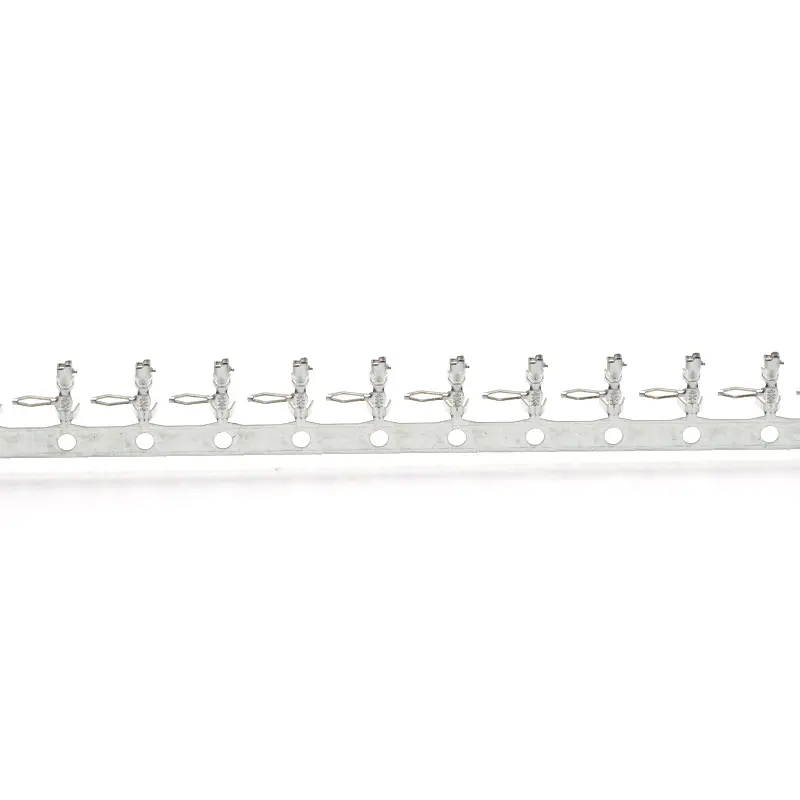

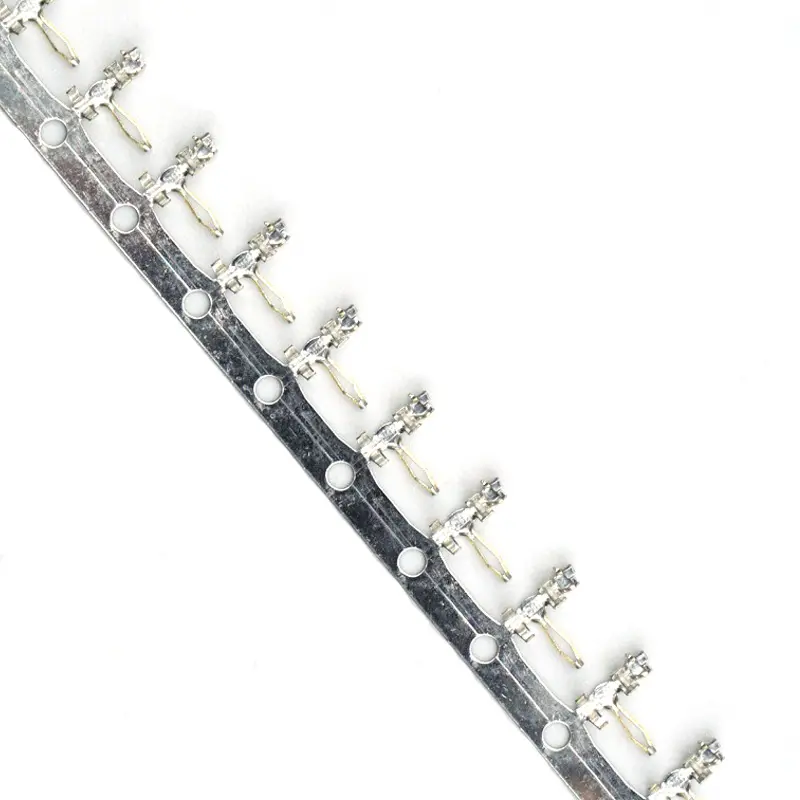

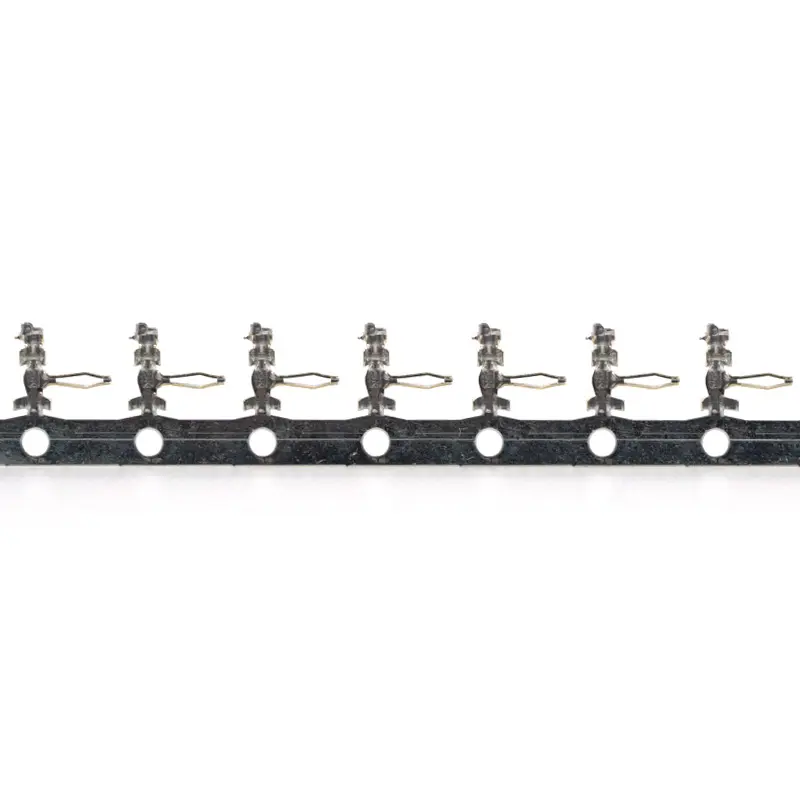

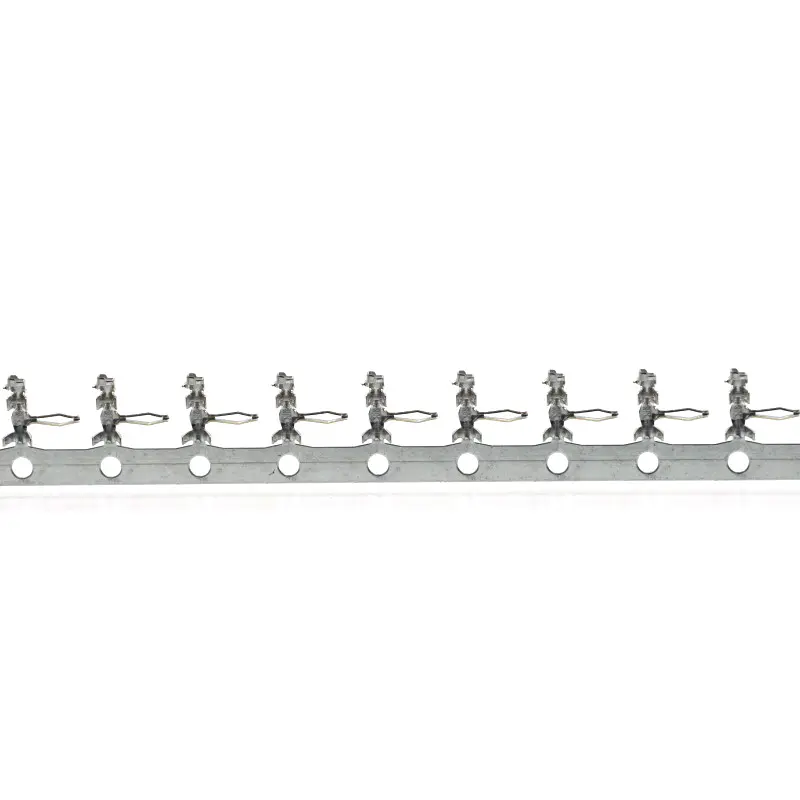

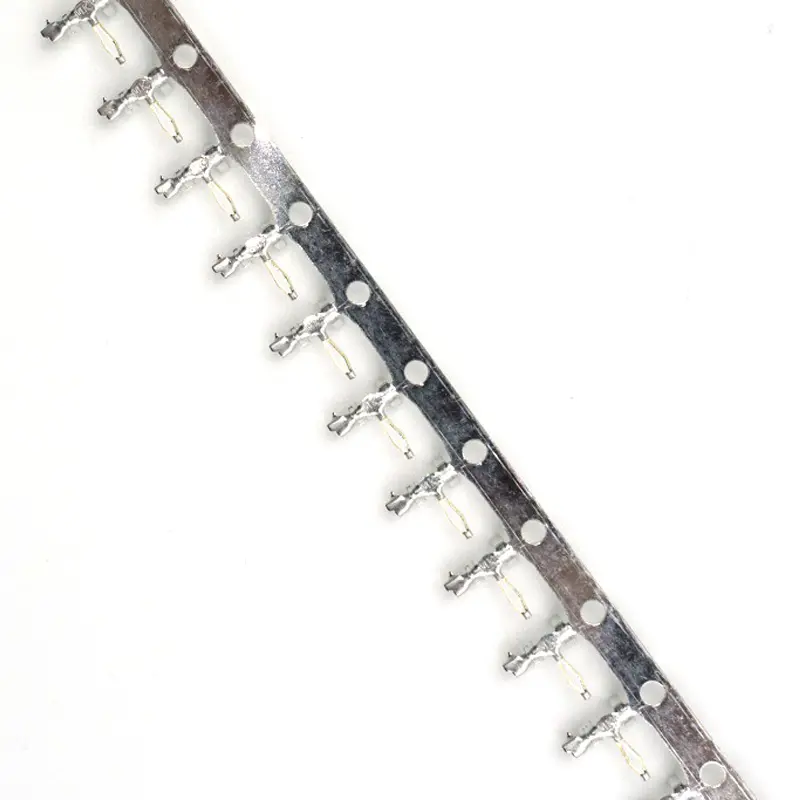

35021-1001
35021-1001 是 Molex 的 Products>Connectors>PCB / Wire Connectors>Crimp Terminals产品。适用信息：Wire-to-Board。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Molex
制造商
Molex
产品类别
Products>Connectors>PCB / Wire Connectors>Crimp Terminals
技术参数
| 产品状态 | 在售 |
|---|---|
| 公端/母端 | 公端 |
| 包装方式 | 卷 |
| 品牌归属地 | 国际 |
| 端接方法 | 压接 |
| 系列 | 35021、35021 |
| 线径-mm² | N/A |
| 线规-AWG | 22 AWG,30 AWG |
| 触头镀层 | 锡 |
| 镀层厚度 | 0.813μm |
| 额定电流 | 3A |
| 一级应用 | Connected Home,Telecommunications / Networking,Defense |
| 二级应用 | Wire-to-Board Connectors, Micro Connector Products |
| 产品名称 | Board-in |
| 产品系列 | Board-in Connectors |
| 导线绝缘直径 | 1.90mm max. |
| 应用 | Signal, Wire-to-Board |
| 最大电压 | 125V AC (RMS)/DC |
| 端接最薄镀层 | 0.813µm |
| 类别 | Crimp Terminals |
| 终端电镀材料 | Tin |
| 说明 | 2.50mm Pitch, Board-in Male Crimp Terminal, Right-Angle, Brass Tin (Sn) Plating, 22-28 AWG, Reel、Right Angle, Use with Housing 35022 |
| 重量 | 0.040/g |
| 金属材料 | Brass |
| Packaging | Reel |
| Standard Pack Qty | 11000 |
| 单位重量（kg） | 4e-05 |
| 接口性别 | Male |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| 净重 | 0.040/g |
| Plating Min Mating | 0.813µm |
| Plating Min Termination | 0.813µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.90mm max. |
| Wire Size Awg | 22、24、26、28 |
| Wire Size Mm | N/A |

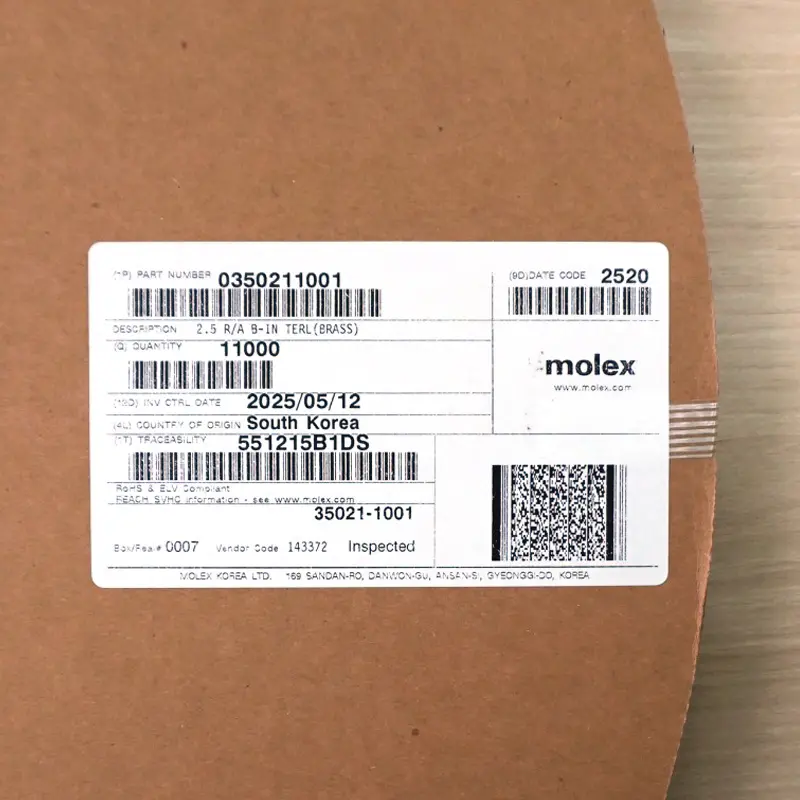

采购与包装
| 最小订购量 | 11000 |
|---|---|
| 订购倍数 | 11000 |
| 工厂库存 | 0 |
| 替代包装型号 | 35021-1001 (Cut Strip)、35021-1001 (Mouser Reel)、35021-1001 (Loose Piece) |
| 包装类型 | Reel |
合规信息
| CNHTS | 8538900000 |
|---|---|
| TARIC | 8536699099 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 8536900002 |
| KRHTS | 8536909010 |
| MXHTS | 85369099 |
| BRHTS | 85369090 |
| ECCN | EAR99 |
| Country of Origin | Korea, Republic of |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
配套关系
| 配套系列 | 212415 - 2.50mm Pitch, Board-In Right-Angle Crimp Housings、35022 - 2.50mm Pitch Board-In Right-Angle and Vertical Crimp Housings、35023 - 2.00mm Pitch Board-In Right-Angle and Vertical Crimp Housings |
|---|
其他信息
| 产地 | 韩国/KOR批量参考批次：2025+ |
|---|---|
| 品名 | 盘装端子 |
| 原产国 | HK,JP,KR |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
