Product information

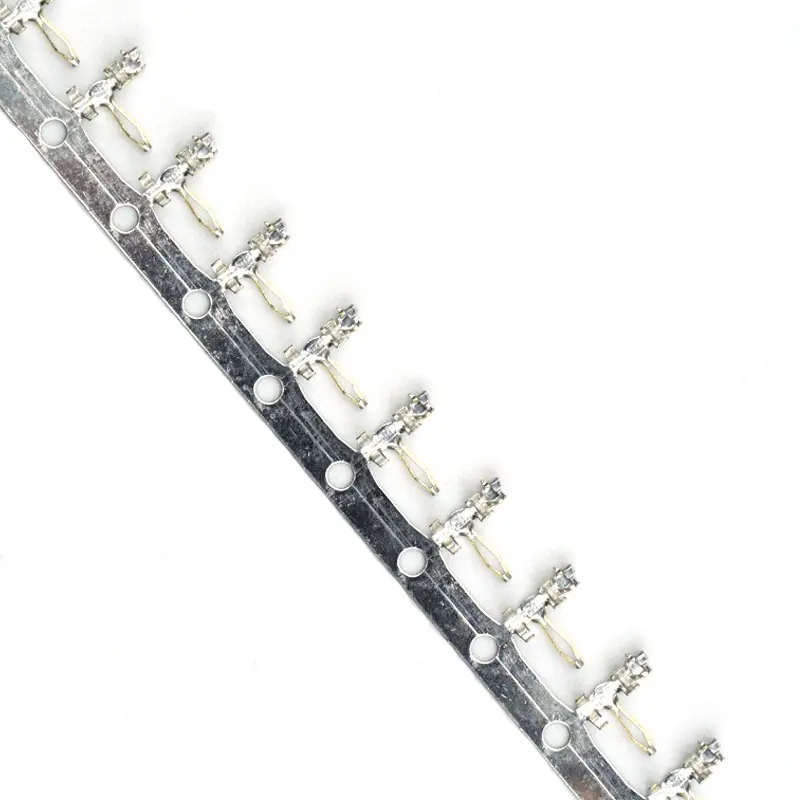

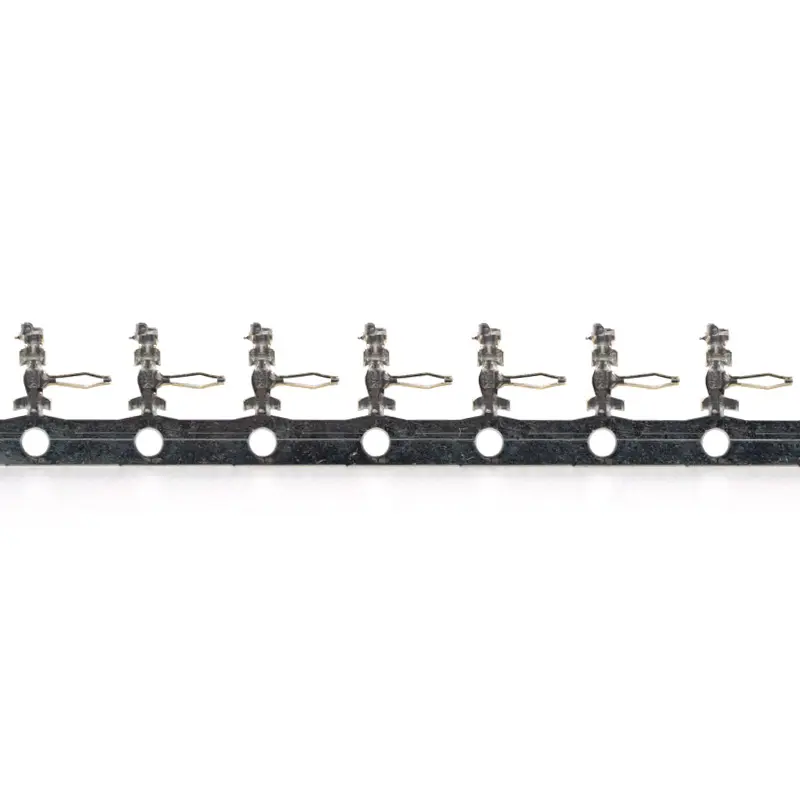

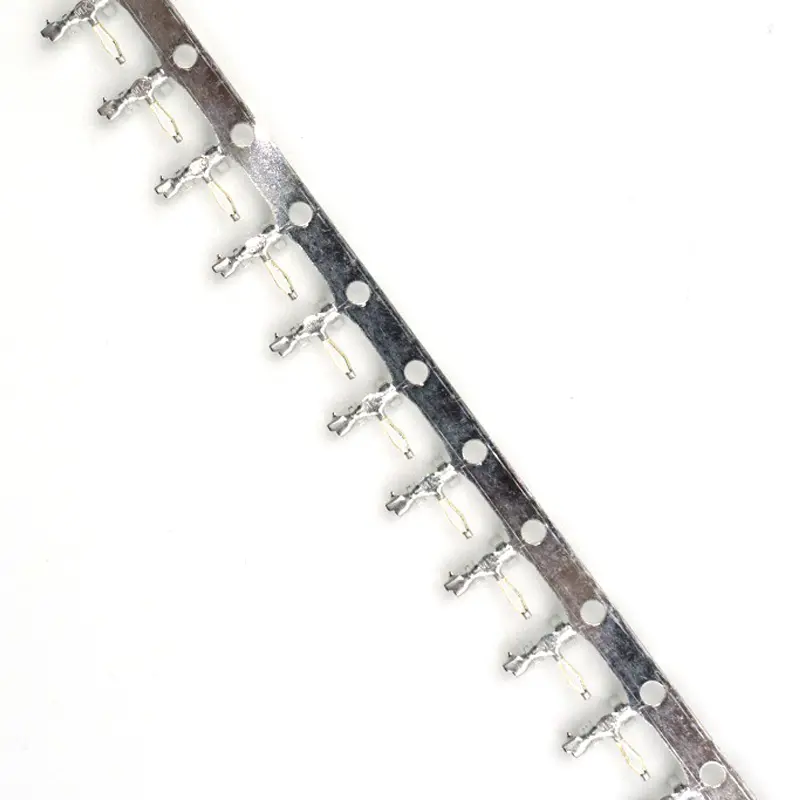

Molex 35021-1001 Connector Terminal
35021-1001 is a Molex Crimp Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
35021-1001
Brand
Molex
Category
Crimp Terminals
Series
Board-in Connectors
Applications
Connected Home, Telecommunications / Networking, Defense, Signal Connections, Wire-to-Board
Technical specifications
| Product status | Active |
|---|---|
| Gender | Male |
| Packaging | Reel |
| Brand region | International |
| Termination method | Crimp |
| Series | 35021、35021 |
| Wire size (mm²) | N/A |
| Wire size (AWG) | 22 AWG,30 AWG |
| Contact plating | Tin |
| Plating thickness | 0.813μm |
| Primary applications | Connected Home,Telecommunications / Networking,Defense |
| Secondary applications | Wire-to-Board Connectors, Micro Connector Products |
| Product family | Board-in |
| Product series | Board-in Connectors |
| Wire insulation diameter | 1.90mm max. |
| Applications | Signal, Wire-to-Board |
| Category | Crimp Terminals |
| Description | 2.50mm Pitch, Board-in Male Crimp Terminal, Right-Angle, Brass Tin (Sn) Plating, 22-28 AWG, Reel、Right Angle, Use with Housing 35022 |
| Weight | 0.040/g |
| Metal material | Brass |
| Packaging | Reel |
| Standard Pack Qty | 11000 |
| Unit weight (kg) | 4e-05 |
| Interface gender | Male |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net weight | 0.040/g |
| Plating Min Mating | 0.813µm |
| Plating Min Termination | 0.813µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.90mm max. |
| Wire Size Awg | 22、24、26、28 |
| Wire Size Mm | N/A |

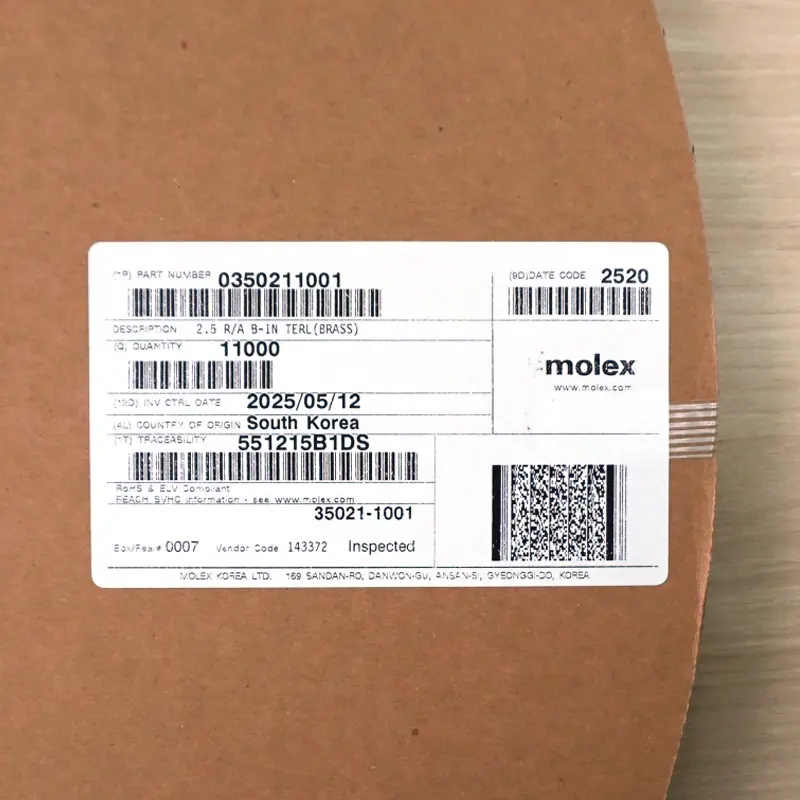

Ordering and packaging
| Minimum order quantity | 11000 |
|---|---|
| Order multiple | 11000 |
| Factory stock | 0 |
| Packaging type | Reel |
Compliance information
| CNHTS | 8538900000 |
|---|---|
| TARIC | 8536699099 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 8536900002 |
| KRHTS | 8536909010 |
| MXHTS | 85369099 |
| BRHTS | 85369090 |
| ECCN | EAR99 |
| Country of Origin | Korea, Republic of |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
Mating and related products
| Use-with series | 212415 - 2.50mm Pitch, Board-In Right-Angle Crimp Housings、35022 - 2.50mm Pitch Board-In Right-Angle and Vertical Crimp Housings、35023 - 2.00mm Pitch Board-In Right-Angle and Vertical Crimp Housings |
|---|
Additional information
| Country of origin | HK,JP,KR |
|---|
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
