产品资料

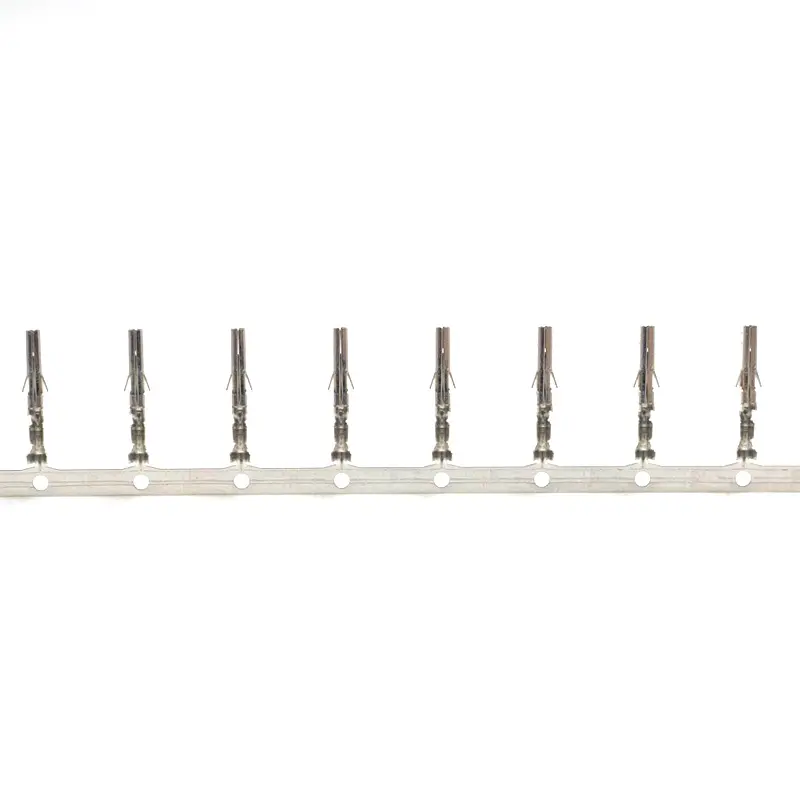

39-00-0046
39-00-0046 是 Molex 的 Products>Connectors>PCB / Wire Connectors>Crimp Terminals产品。适用信息：Wire-to-Board、Wire-to-Wire。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Molex
制造商
Molex
产品类别
Products>Connectors>PCB / Wire Connectors>Crimp Terminals
技术参数
| 产品状态 | 在售 |
|---|---|
| 公端/母端 | 母端 |
| 包装方式 | 卷 |
| 品牌归属地 | 国际 |
| 端接方法 | 压接 |
| 系列 | 5556、5556 |
| 线径-mm² | N/A |
| 线规-AWG | 28 to 22 AWG |
| 触头镀层 | 锡 |
| 镀层厚度 | 0.889μm |
| 额定电流 | 9A |
| 一级应用 | Appliances |
| 二级应用 | Wire-to-Board Connectors, Power Connectors, Wire-to-Wire Connectors, FiT Family Power Connectors, Mini-Fit Family Power Connectors |
| 产品名称 | Mini-Fit |
| 产品系列 | Mini-Fit Family Power Connectors |
| 导线绝缘直径 | 0.90-1.80mm |
| 应用 | Power, Wire-to-Board, Wire-to-Wire |
| 无铅 | N/A |
| 最多次数耐用性(插拔次数) | 30 |
| 最大电压 | 600V |
| 端接最薄镀层 | 0.889µm |
| 类别 | Crimp Terminals |
| 终端电镀材料 | Tin |
| 说明 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 22-28 AWG, Reel |
| 重量 | 165.000/mg |
| 金属材料 | Brass |
| Packaging | Reel |
| Standard Pack Qty | 6000 |
| 单位重量（kg） | 0.000123 |
| Durability Mating Cycles Max | 30 |
| 接口性别 | Female |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| 净重 | 165.000/mg |
| Packaging Alternative Part | {'productNumber': '0039000047', 'packagingType': 'Bag'} |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 0.90-1.80mm |
采购与包装
| 最小订购量 | 6000 |
|---|---|
| 订购倍数 | 6000 |
| 工厂库存 | 0 |
| 替代包装型号 | 39-00-0046 (Cut Strip)、39-00-0046 (Mouser Reel) |
| 包装类型 | Reel |
合规信息
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536699099 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 8536900002 |
| KRHTS | 8536909010 |
| MXHTS | 85369099 |
| BRHTS | 85369090 |
| ECCN | EAR99 |
| Country of Origin | United States |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
配套关系
| 配套系列 | 5557 - Mini-Fit Jr. Receptacle Housings、44516 - Mini-Fit BMI Dual Row Receptacle Housings、42474 - Mini-Fit BMI Dual Row Receptacle Housings、43760 - Mini-Fit BMI Dual Row Receptacle Housings、46992 - Mini-Fit Jr. Dual Row Receptacle Housings |
|---|
其他信息
| 原产国 | BR,CN,HK,IN,IT,JP,KR,US |
|---|
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
