Product information

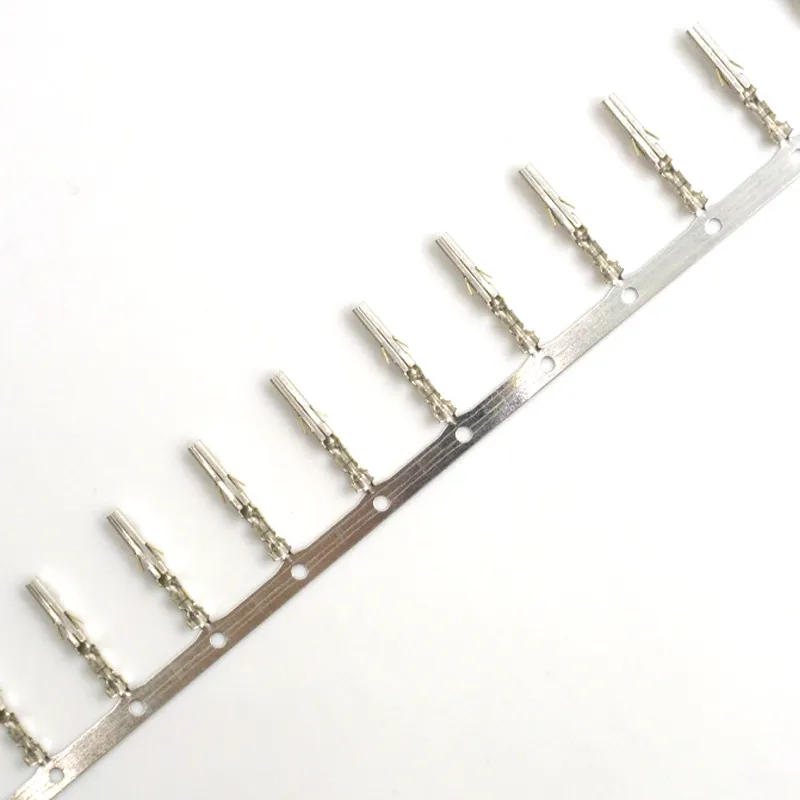

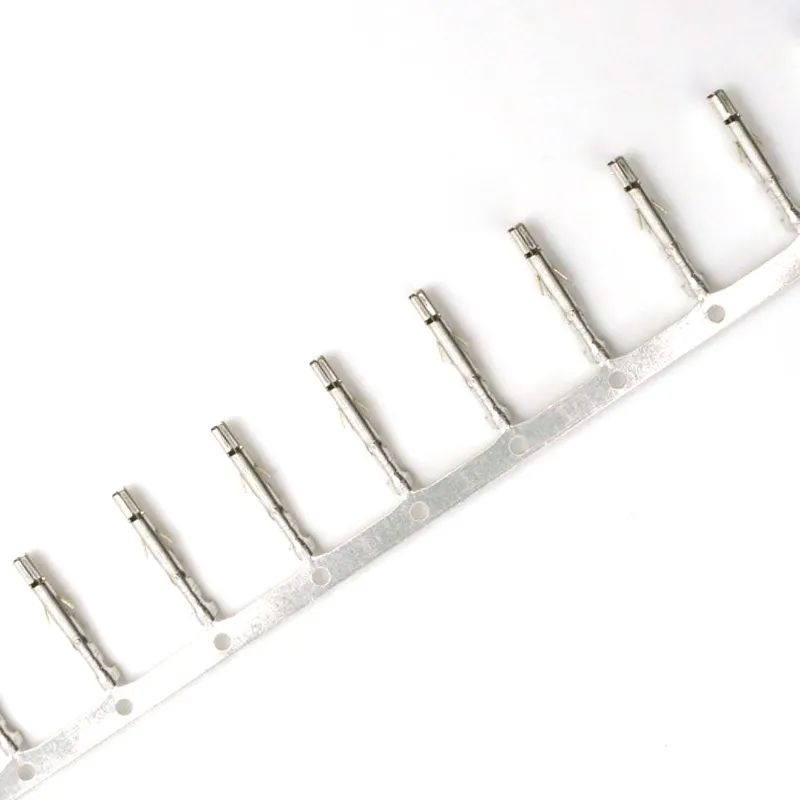

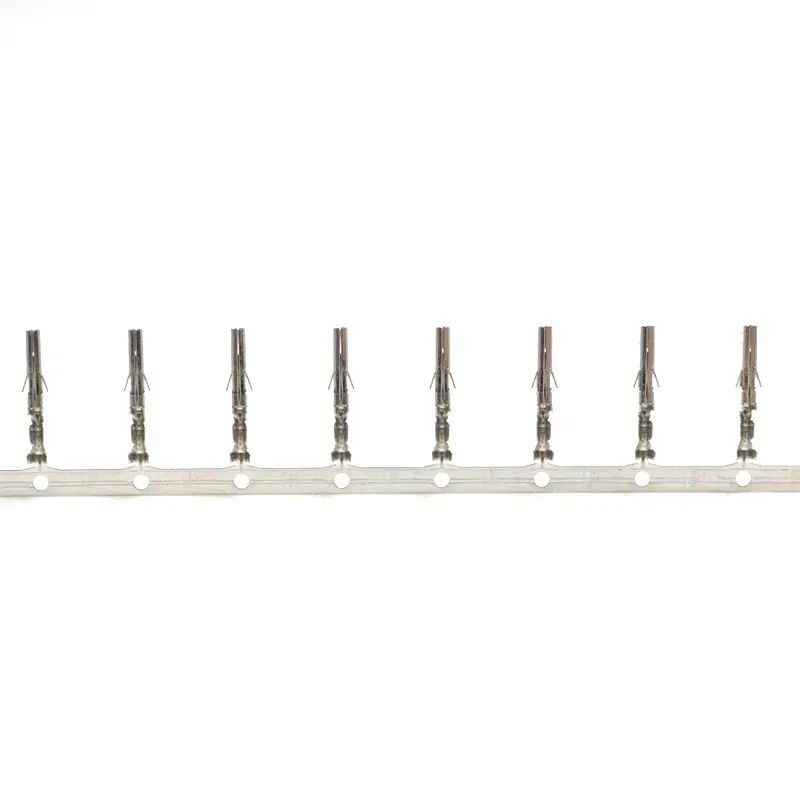

Molex 39-00-0046 Connector Terminal
39-00-0046 is a Molex Crimp Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
39-00-0046
Brand
Molex
Category
Crimp Terminals
Series
Mini-Fit Family Power Connectors
Applications
Appliances, Power Connections, Wire-to-Board, Wire-to-Wire
Technical specifications
| Product status | Active |
|---|---|
| Gender | Female |
| Packaging | Reel |
| Brand region | International |
| Termination method | Crimp |
| Series | 5556、5556 |
| Wire size (mm²) | N/A |
| Wire size (AWG) | 28 to 22 AWG |
| Contact plating | Tin |
| Plating thickness | 0.889μm |
| Primary applications | Appliances |
| Secondary applications | Wire-to-Board Connectors, Power Connectors, Wire-to-Wire Connectors, FiT Family Power Connectors, Mini-Fit Family Power Connectors |
| Product family | Mini-Fit |
| Product series | Mini-Fit Family Power Connectors |
| Wire insulation diameter | 0.90-1.80mm |
| Applications | Power, Wire-to-Board, Wire-to-Wire |
| Lead free | N/A |
| Category | Crimp Terminals |
| Description | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 22-28 AWG, Reel |
| Weight | 165.000/mg |
| Metal material | Brass |
| Packaging | Reel |
| Standard Pack Qty | 6000 |
| Unit weight (kg) | 0.000123 |
| Durability Mating Cycles Max | 30 |
| Interface gender | Female |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net weight | 165.000/mg |
| Packaging Alternative Part | {'productNumber': '0039000047', 'packagingType': 'Bag'} |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 0.90-1.80mm |

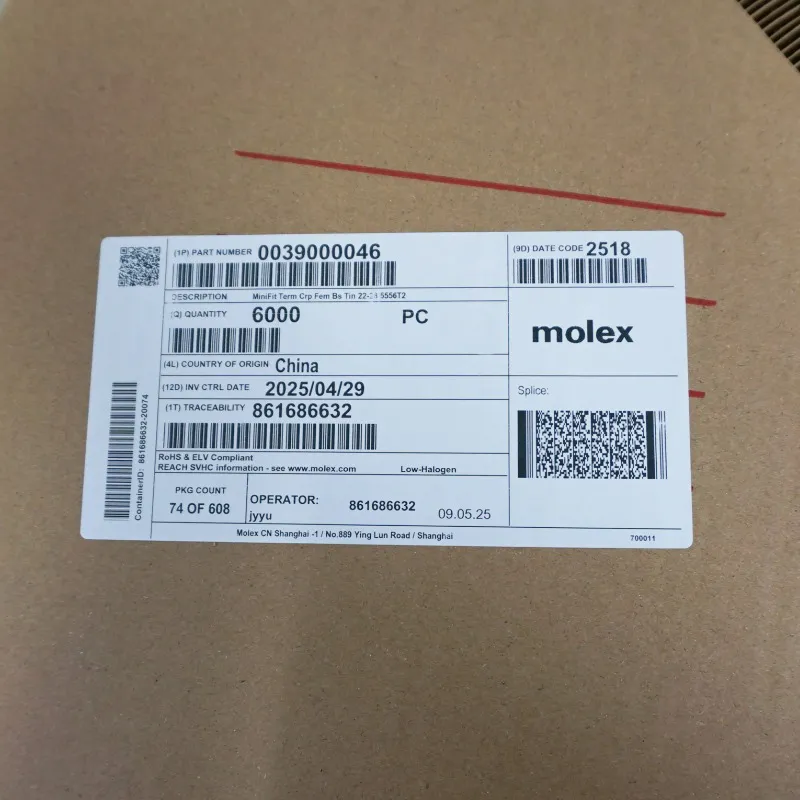

Ordering and packaging
| Minimum order quantity | 6000 |
|---|---|
| Order multiple | 6000 |
| Factory stock | 0 |
| Packaging type | Reel |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536699099 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 8536900002 |
| KRHTS | 8536909010 |
| MXHTS | 85369099 |
| BRHTS | 85369090 |
| ECCN | EAR99 |
| Country of Origin | United States |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
Mating and related products
| Use-with series | 5557 - Mini-Fit Jr. Receptacle Housings、44516 - Mini-Fit BMI Dual Row Receptacle Housings、42474 - Mini-Fit BMI Dual Row Receptacle Housings、43760 - Mini-Fit BMI Dual Row Receptacle Housings、46992 - Mini-Fit Jr. Dual Row Receptacle Housings |
|---|
Additional information
| Country of origin | BR,CN,HK,IN,IT,JP,KR,US |
|---|
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
