产品技术规格
| 应用领域 | Wire-to-Board、Wire-to-Wire |
|---|---|
| 1 | 1.721 |
| 15000 | 1.018 |
| 20 | 1.639 |
| 3000 | 1.047 |
| 30000 | 0.989 |
| 3D CAD图纸 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/3dcadmodelspdf/430/43025/430250610.pdf |
| 3D CAD模型 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/3dcadmodels/430/43025/430250610_stp.zip |
| 60000 | 0.969 |
| Assembly Country of Origin | Not available |
| batch | N |
| BRHTS | 85366990 |
| CAHTS | 8536690020 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| CNHTS | 8547200000 |
| Country of Diffusion | Not available |
| Country of Origin | China |
| CSA | LR19980 |
| ECCN | EAR99 |
| EU ELV | Not Relevant |
| EU RoHS | Compliant per EU 2015/863 |
| GADSL/IMDS | Not Relevant |
| JPHTS | 853669000 |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| MXHTS | 85366999 |
| Prop65 | Compliant per California Proposition 65 |
| RoHS状态 | RoHS Compliant |
| SAP型号 | 0430250610 |
| Standard Pack Qty | 3000 |
| TARIC | 8547200000 |
| UL | E29179 |
| USHTS | 8538906000 |
| 一级应用 | Agricultural Machinery, Appliances |
| 二级应用 | Wire-to-Board Connectors, Power Connectors, Micro-Fit Connector System, Wire-to-Wire Connectors, Board-to-Board Connectors, FiT Family Power Connectors |
| 交期 | 77 Days |

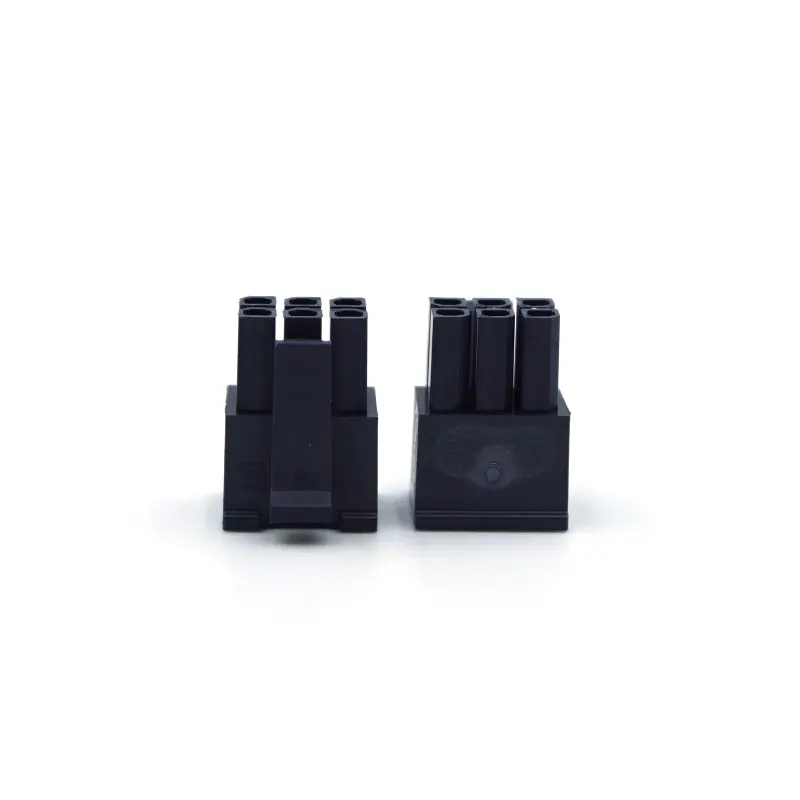

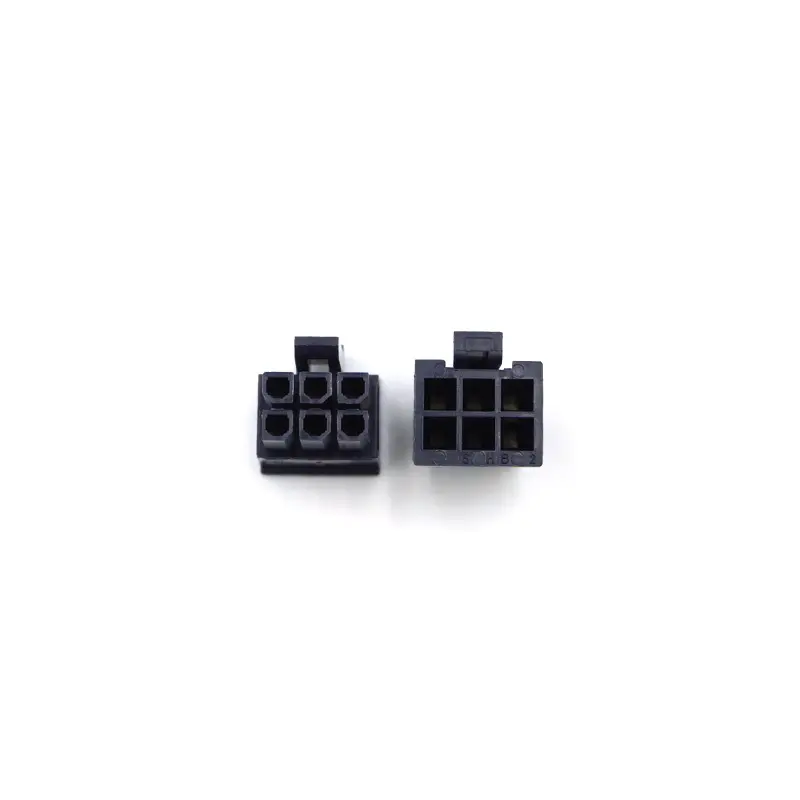

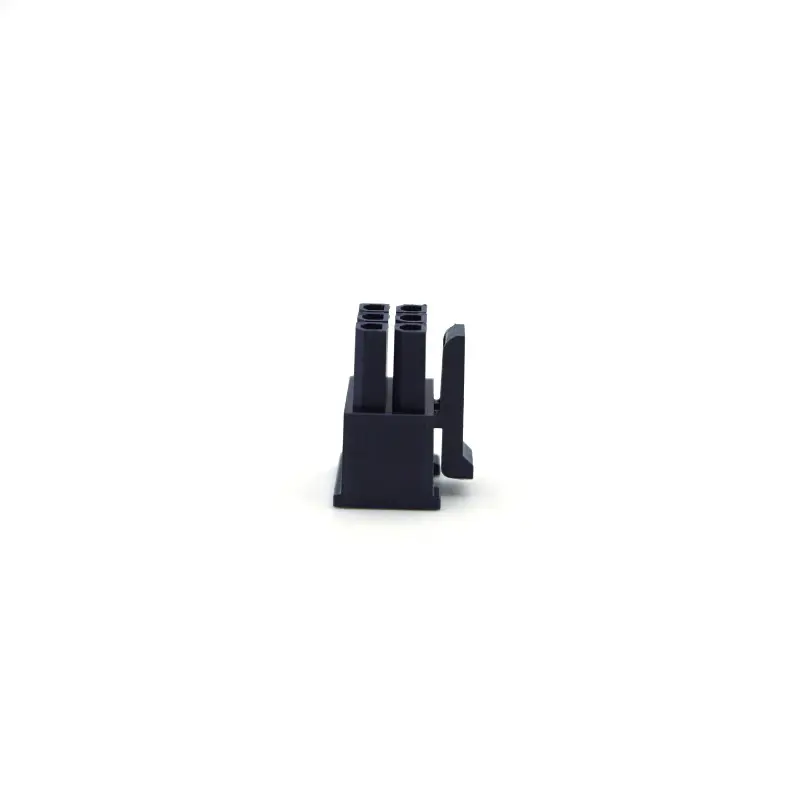

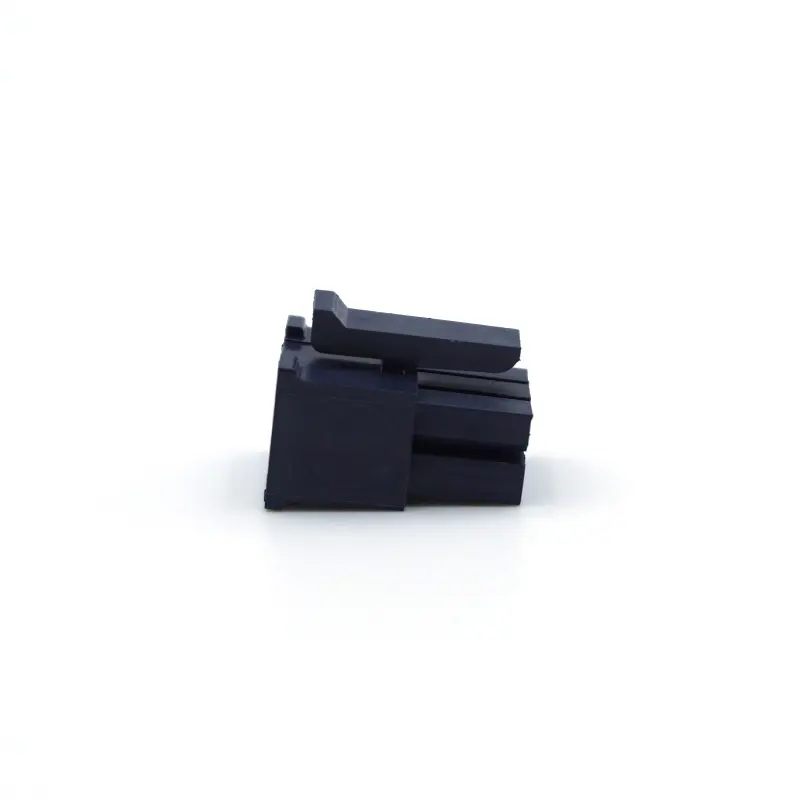

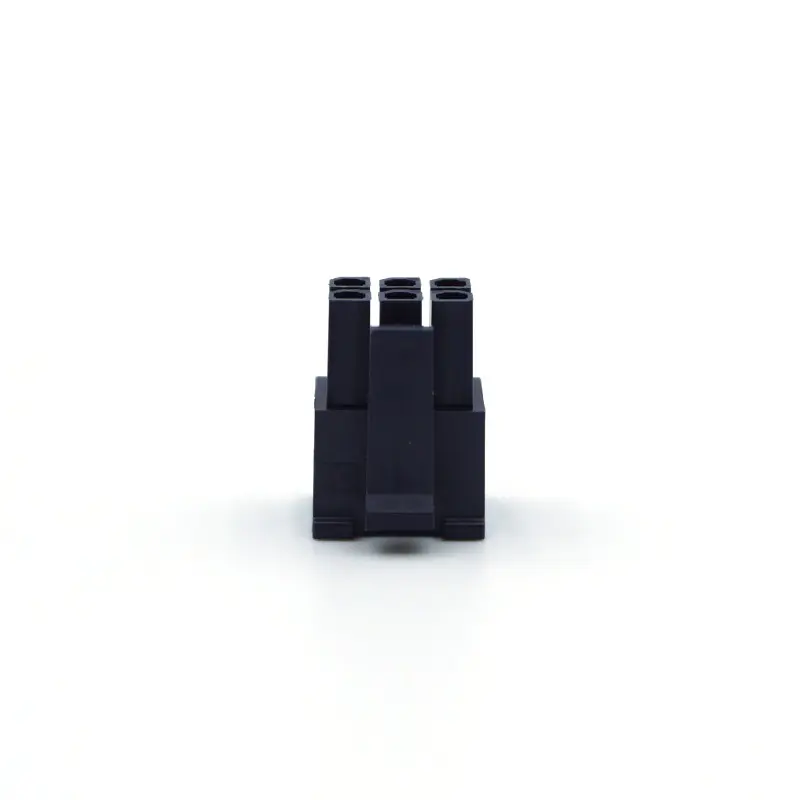

| 产品名称 | 43025-0610 (MOLEX) |
| 产品描述 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 6 Circuits, UL 94V-2, Glow-Wire Capable, Black |
| 产品状态 | Active |
| 产品系列 | Micro-Fit 3.0 |
| 产品链接 | https://www.mouser.hk/en/ProductDetail/Molex/43025-0610?qs=OAhjpuo3Vu5Yd98WxJn67Q%3D%3D |
| 产品间距 | 3.00mm |
| 产地 | 中国/CHN |
| 公端/母端 | 母端 |
| 净重 | 0.627/g |

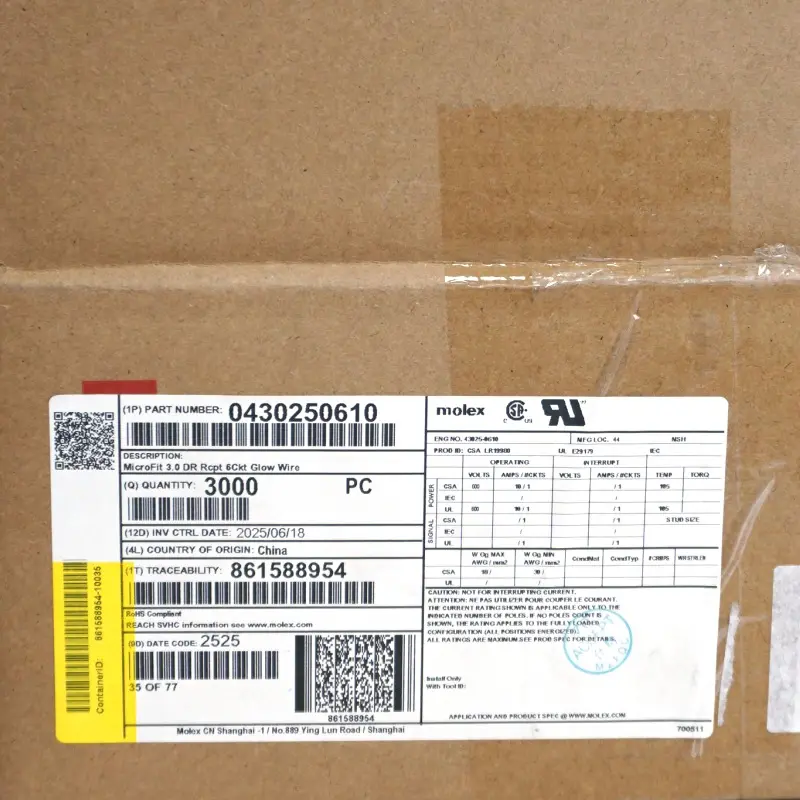

| 包装方式 | 袋 |
| 包装类型 | Bag |
| 包装规范 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/packagingspecificationpdf/430/43025/PK-43025-001-001.pdf |
| 单位重量（kg） | 0.000609 |
| 原产国 | CN,US |
| 可堆叠 | No |
| 可堆叠的 | No |
| 品名 | 塑壳 |
| 品牌归属地 | 国际 |
| 基本分类 | 连接器 |
| 工作温度范围 | -40° to +125°C |
| 排数 | 2 |
| 接口性别 | Receptacle |
| 插接极性 | None |
| 替代型号 | 92M8-00042（JiDC(济德)）、C3030HF-2x3P-GWT（CJT）、X3025HM-2x03-N2（中国星坤(XKB CONNECTION)） |
| 最后更新日期 | 2026-09-24 |
| 最大回路数 | 6 |
| 有极性的插配件 | Yes |
| 树脂材料 | Nylon |
| 树脂颜色 | Black |
| 相关系列 | 43020, 43045, 44242, 214757, 214758 |
| 符合灼热丝规范 | Yes |
| 组件类型 | Receptacle |
| 耐灼热丝 | Yes |
| 说明 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 6 Circuits, UL 94V-2, Glow-Wire Capable, Black、This Molex product is manufactured from material that has the following ratings, tested by independent agencies: a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12 and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety, section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customer's evaluation of suitability, that higher performance is required, please contact Molex for possible product options. |
| 贸泽编号 | 538-43025-0610 |
| 配套产品 | 0797580002 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female, Tin (Sn) Plating, 150.00mm Length, 20 AWG, Black、0797580004 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female, Gold (Au) Plating, 150.00mm Length, 20 AWG, Black、0797580010 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female, Tin (Sn) Plating, 300.00mm Length, 20 AWG, Black、0797580012 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female, Gold (Au) Plating, 300.00mm Length, 20 AWG, Black |
| 配套系列 | 43030 - Micro-Fit 3.0 Female Crimp Terminals、45773 - Micro-Fit 3.0 Female Crimp Terminals with Lubricant、46235 - Micro-Fit Reduced Mating Force Female Crimp Terminals、214760 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female、214761 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Pigtail |
| 配接极性 | Yes |
| 配接系列 | 43020 - Micro-Fit 3.0 Dual Row Plug Housings、43045 - Micro-Fit 3.0 Dual Row Headers、44242 - Micro-Fit 3.0 Dual Row Test Plugs、214757 - Micro-Fit 3.0 Male-to-Micro-Fit 3.0 Male Off-the-Shelf (OTS) Cable Assemblies、214758 - Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assemblies |
| 配接锁定 | Yes |
| 配接间距 | 3.00mm |
| 配接防错键 | No |
| 针位数 | 6 |
| 销售图纸 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/430/43025/430250610_sd.pdf |
| 销售状态 | Standard Product |
| 锁定插接部位 | Yes |
| 阻燃等级 | UL94 V-2 |
| 面板安装 | No |
| 面板安装式 | No |
| 颜色 | Black |
| 首次发布日期 | 2016-09-23 |
| 高清产品图片 | https://www.molex.com/content/dam/molex/molex-dot-com/products/manual/en-us/images/430/43025/0430250610_hires.jpg |
| 系列 | 43025、43025 |
| 重量 | 0.609/g |
相关产品信息
品牌：Molex
产品类别：连接器胶壳
产品系列：Micro-Fit Connector System
应用领域：农业机械
应用领域：家电
应用领域：电源
应用领域：线对板
应用领域：线对线
应用领域：板对板
同品牌、系列或类别的相似产品（不代表兼容或可替代）
已核验询价信息
- 包装方式
- 袋
- 最小订购量
- 1
制造商及授权来源记录
产品资料
43025-0610
43025-0610 是 Molex 的 Products>Connectors>PCB / Wire Connectors>Connector Housings产品。适用信息：Wire-to-Board、Wire-to-Wire。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Molex
制造商
Molex
产品类别
Products>Connectors>PCB / Wire Connectors>Connector Housings
技术参数
| 产品状态 | 在售 |
|---|---|
| 产品间距 | 3.00mm |
| 公端/母端 | 母端 |
| 包装方式 | 袋 |
| 品牌归属地 | 国际 |
| 排数 | 2 |
| 系列 | 43025、43025 |
| 针位数 | 6 |
| 阻燃等级 | UL94 V-2 |
| 一级应用 | Agricultural Machinery, Appliances |
| 二级应用 | Wire-to-Board Connectors, Power Connectors, Micro-Fit Connector System, Wire-to-Wire Connectors, Board-to-Board Connectors, FiT Family Power Connectors |
| 产品名称 | Micro-Fit 3.0 |
| 产品系列 | Micro-Fit Connector System |
| 可堆叠的 | No |
| 工作温度范围 | -40° to +125°C |
| 应用 | Power, Wire-to-Board, Wire-to-Wire |
| 插接极性 | None |
| 有极性的插配件 | Yes |
| 树脂材料 | Nylon |
| 树脂颜色 | Black |
| 相关系列 | 43020, 43045, 44242, 214757, 214758 |
| 符合灼热丝规范 | Yes |
| 类别 | Connector Housings |
| 说明 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 6 Circuits, UL 94V-2, Glow-Wire Capable, Black、This Molex product is manufactured from material that has the following ratings, tested by independent agencies: a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12 and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety, section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customer's evaluation of suitability, that higher performance is required, please contact Molex for possible product options. |
| 重量 | 0.609/g |
| 锁定插接部位 | Yes |
| 面板安装式 | No |
| Standard Pack Qty | 3000 |
| 单位重量（kg） | 0.000609 |
| 最大回路数 | 6 |
| 颜色 | Black |
| 接口性别 | Receptacle |
| 耐灼热丝 | Yes |
| 配接防错键 | No |
| 配接锁定 | Yes |
| 净重 | 0.627/g |
| 面板安装 | No |
| 配接间距 | 3.00mm |
| 配接极性 | Yes |
| 可堆叠 | No |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
| 包装类型 | Bag |
合规信息
| REACH-SVHC | Decabromodiphenylethane (DBDPE) (84852-53-9) |
|---|---|
| CNHTS | 8547200000 |
| TARIC | 8547200000 |
| CAHTS | 8536690020 |
| USHTS | 8538906000 |
| JPHTS | 853669000 |
| MXHTS | 85366999 |
| BRHTS | 85366990 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| GADSL/IMDS | Not Relevant |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Not Relevant |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Contains 1,1'-(ethane-1,2-diyl)bis[pentabromobenzene] per D(2025)7771-DC (04 Feb 2026) SCIP:f96ceba5-642b-4128-bbcd-083f955965d7 |
| EU RoHS | Compliant per EU 2015/863 |
| CSA | LR19980 |
| UL | E29179 |
配套关系
| 配接系列 | 43020 - Micro-Fit 3.0 Dual Row Plug Housings、43045 - Micro-Fit 3.0 Dual Row Headers、44242 - Micro-Fit 3.0 Dual Row Test Plugs、214757 - Micro-Fit 3.0 Male-to-Micro-Fit 3.0 Male Off-the-Shelf (OTS) Cable Assemblies、214758 - Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assemblies |
|---|---|
| 配套系列 | 43030 - Micro-Fit 3.0 Female Crimp Terminals、45773 - Micro-Fit 3.0 Female Crimp Terminals with Lubricant、46235 - Micro-Fit Reduced Mating Force Female Crimp Terminals、214760 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female、214761 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Pigtail |
| 配套产品 | 0797580002 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female, Tin (Sn) Plating, 150.00mm Length, 20 AWG, Black、0797580004 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female, Gold (Au) Plating, 150.00mm Length, 20 AWG, Black、0797580010 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female, Tin (Sn) Plating, 300.00mm Length, 20 AWG, Black、0797580012 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female, Gold (Au) Plating, 300.00mm Length, 20 AWG, Black |
其他信息
| 产地 | 中国/CHN批量参考批次： |
|---|---|
| 品名 | 塑壳 |
| 原产国 | CN,US |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
