Product information

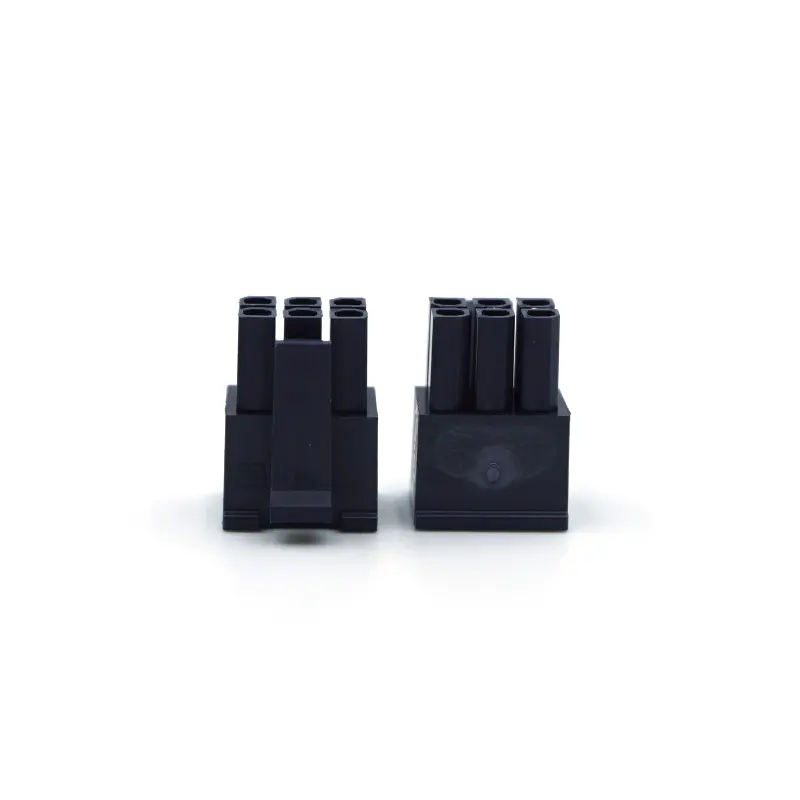

Molex 43025-0610 Connector Housing
43025-0610 is a Molex Connector Housings. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
43025-0610
Brand
Molex
Category
Connector Housings
Series
Micro-Fit Connector System
Applications
Agricultural Machinery, Appliances, Power Connections, Wire-to-Board, Wire-to-Wire, Board-to-Board
Technical specifications
| Product status | Active |
|---|---|
| Pitch | 3.00mm |
| Gender | Female |
| Packaging | Bag |
| Brand region | International |
| Number of rows | 2 |
| Series | 43025、43025 |
| Number of positions | 6 |
| Primary applications | Agricultural Machinery, Appliances |
| Secondary applications | Wire-to-Board Connectors, Power Connectors, Micro-Fit Connector System, Wire-to-Wire Connectors, Board-to-Board Connectors, FiT Family Power Connectors |
| Product family | Micro-Fit 3.0 |
| Product series | Micro-Fit Connector System |
| Operating temperature | -40° to +125°C |
| Applications | Power, Wire-to-Board, Wire-to-Wire |
| Mating polarization | None |
| Resin material | Nylon |
| Resin color | Black |
| Related series | 43020, 43045, 44242, 214757, 214758 |
| Glow-wire capable | Yes |
| Category | Connector Housings |
| Description | Micro-Fit 3.0 Receptacle Housing, Dual Row, 6 Circuits, UL 94V-2, Glow-Wire Capable, Black、This Molex product is manufactured from material that has the following ratings, tested by independent agencies: a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12 and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety, section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customer's evaluation of suitability, that higher performance is required, please contact Molex for possible product options. |
| Weight | 0.609/g |
| Panel mount | No |

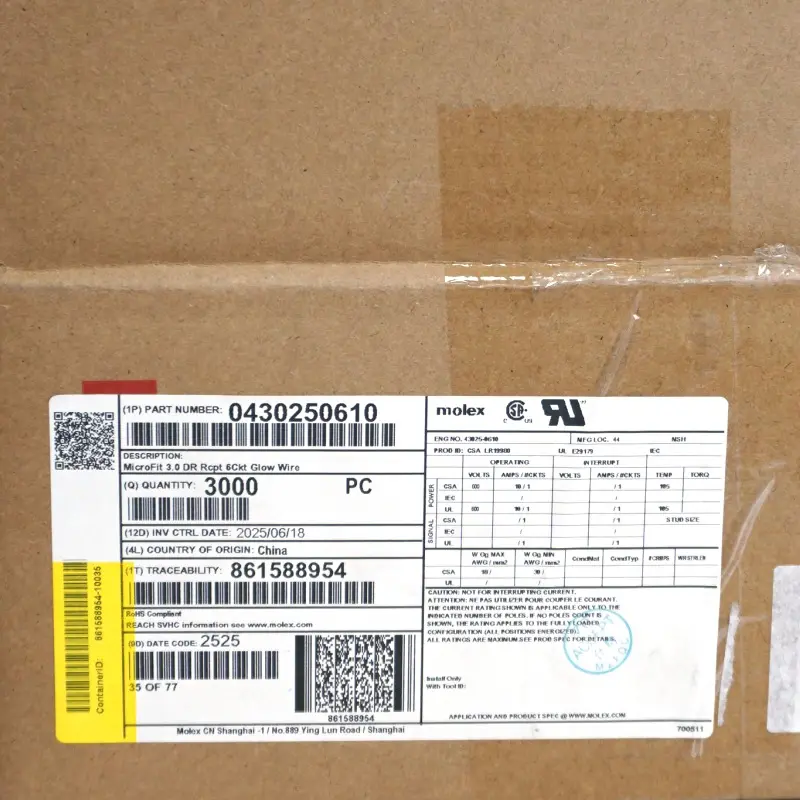

| Standard Pack Qty | 3000 |
| Unit weight (kg) | 0.000609 |
| Maximum circuits | 6 |
| Color | Black |
| Interface gender | Receptacle |
| Glow-wire capable | Yes |
| Mating keying | No |
| Mating lock | Yes |
| Net weight | 0.627/g |
| Panel mount | No |
| Mating pitch | 3.00mm |
| Mating polarization | Yes |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
| Packaging type | Bag |
Compliance information
| REACH-SVHC | Decabromodiphenylethane (DBDPE) (84852-53-9) |
|---|---|
| CNHTS | 8547200000 |
| TARIC | 8547200000 |
| CAHTS | 8536690020 |
| USHTS | 8538906000 |
| JPHTS | 853669000 |
| MXHTS | 85366999 |
| BRHTS | 85366990 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Not Relevant |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Not Relevant |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Contains 1,1'-(ethane-1,2-diyl)bis[pentabromobenzene] per D(2025)7771-DC (04 Feb 2026) SCIP:f96ceba5-642b-4128-bbcd-083f955965d7 |
| EU RoHS | Compliant per EU 2015/863 |
| CSA | LR19980 |
| UL | E29179 |
Mating and related products
| Mating series | 43020 - Micro-Fit 3.0 Dual Row Plug Housings、43045 - Micro-Fit 3.0 Dual Row Headers、44242 - Micro-Fit 3.0 Dual Row Test Plugs、214757 - Micro-Fit 3.0 Male-to-Micro-Fit 3.0 Male Off-the-Shelf (OTS) Cable Assemblies、214758 - Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assemblies |
|---|---|
| Use-with series | 43030 - Micro-Fit 3.0 Female Crimp Terminals、45773 - Micro-Fit 3.0 Female Crimp Terminals with Lubricant、46235 - Micro-Fit Reduced Mating Force Female Crimp Terminals、214760 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female、214761 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Pigtail |
Additional information
| Country of origin | CN,US |
|---|
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
