产品资料

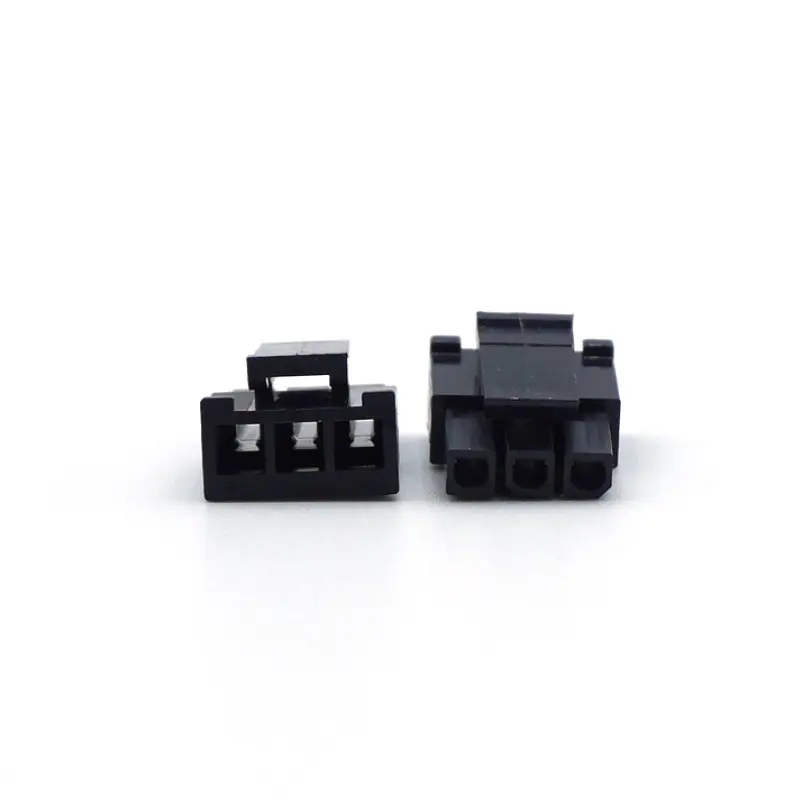

43645-0300
43645-0300 是 Molex 的 Products>Connectors>PCB / Wire Connectors>Connector Housings产品。适用信息：Wire-to-Board、Wire-to-Wire。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Molex
制造商
Molex
产品类别
Products>Connectors>PCB / Wire Connectors>Connector Housings
技术参数
| 产品状态 | 在售 |
|---|---|
| 产品间距 | 3.00mm |
| 公端/母端 | 母端 |
| 包装方式 | 袋 |
| 品牌归属地 | 国际 |
| 排数 | 1 |
| 系列 | 43645、43645 |
| 针位数 | 3 |
| 阻燃等级 | UL94 V-0 |
| 一级应用 | Agricultural Machinery, Appliances |
| 二级应用 | Wire-to-Board Connectors, Power Connectors, Micro-Fit Connector System, Wire-to-Wire Connectors, Board-to-Board Connectors, FiT Family Power Connectors |
| 产品名称 | Micro-Fit 3.0 |
| 产品系列 | Micro-Fit Connector System |
| 可堆叠的 | No |
| 工作温度范围 | -40° to +105°C |
| 应用 | Power, Wire-to-Board, Wire-to-Wire |
| 插接极性 | None |
| 无铅 | N/A |
| 有极性的插配件 | Yes |
| 树脂材料 | Nylon |
| 树脂颜色 | Black |
| 相关系列 | 43640, 200875, 43650, 214752, 214753 |
| 符合灼热丝规范 | No |
| 类别 | Connector Housings |
| 说明 | Micro-Fit 3.0 Receptacle Housing, Single Row, 3 Circuits, UL 94V-0, Low-Halogen, Black |
| 重量 | 0.456/g |
| 锁定插接部位 | Yes |
| 面板安装式 | No |
| Packaging | Bulk |
| Standard Pack Qty | 5000 |
| 单位重量（kg） | 0.00046 |
| 最大回路数 | 3 |
| 颜色 | Black |
| Flammability | 94V-0 |
| 接口性别 | Receptacle |
| 耐灼热丝 | No |
| 配接防错键 | No |
| 配接锁定 | Yes |
| 净重 | 0.365/g |
| 面板安装 | No |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
| 包装类型 | Bag |
合规信息
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200090 |
| CAHTS | 8536690020 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| KRHTS | 8536691000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | India |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| GADSL/IMDS | Not Relevant |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
| CSA | LR19980 |
| UL | E29179 |
配套关系
| 配接系列 | 43640 - Micro-Fit 3.0 Single Row Plug Housings、200875 - Micro-Fit TPA Single Row Plug Housings、43650 - Micro-Fit 3.0 Single Row Headers、214752 - Micro-Fit 3.0 Male-to-Micro-Fit 3.0 Male Off-the-Shelf (OTS) Cable Assemblies、214753 - Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assemblies |
|---|---|
| 配套系列 | 43030 - Micro-Fit 3.0 Female Crimp Terminals、46235 - Micro-Fit Reduced Mating Force Female Crimp Terminals、214760 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female、214761 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Pigtail |
其他信息
| 产地 | 中国/CHN批量参考批次：202604 |
|---|---|
| 品名 | 塑壳 |
| 原产国 | CN,HK,IN,JP,MX,US |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
