产品资料

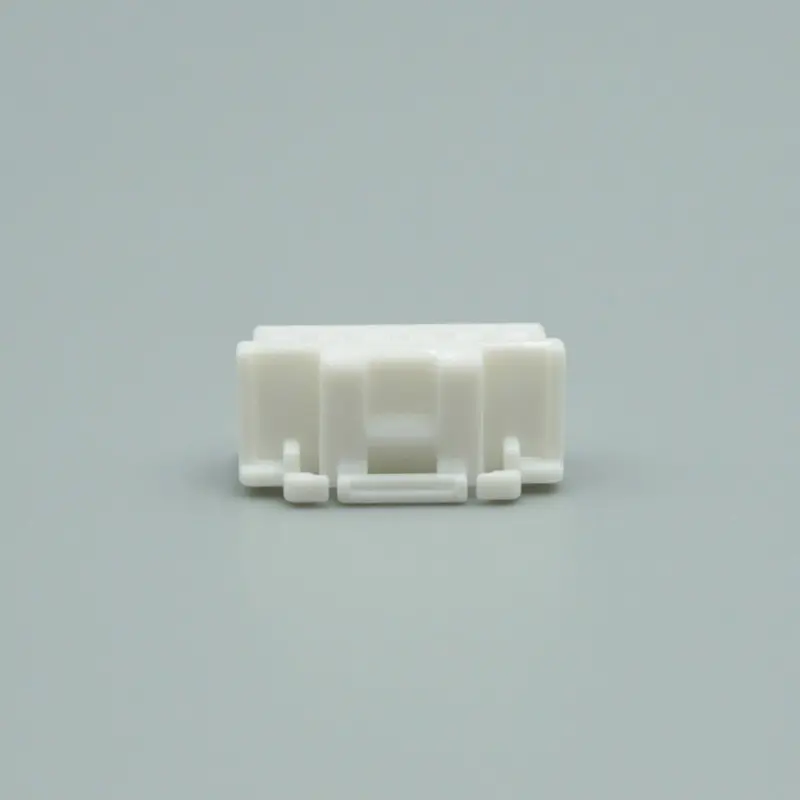

502351-0600
502351-0600 是 Molex 的 Products>Connectors>PCB / Wire Connectors>Connector Housings产品。适用信息：Automotive、Wire-to-Board。本页汇总官方技术资料、贸易合规、包装和国内供货信息。
品牌
Molex
制造商
Molex
产品类别
Products>Connectors>PCB / Wire Connectors>Connector Housings
技术参数
| 产品状态 | 在售 |
|---|---|
| 产品间距 | 2.00mm |
| 公端/母端 | 母端 |
| 包装方式 | 袋 |
| 品牌归属地 | 国际 |
| 排数 | 1 |
| 系列 | 502351、502351 |
| 针位数 | 6 |
| 额定电流 | 3A |
| 一级应用 | Telecommunications / Networking,Connected Home,Commercial Vehicle |
| 二级应用 | DuraClik Connector System, Wire-to-Board Connectors |
| 产品名称 | DuraClik |
| 产品系列 | DuraClik Connector System |
| 工作温度范围 | -40° to +105°C |
| 应用 | Automotive, Signal, Wire-to-Board |
| 插接极性 | Yes |
| 无铅 | N/A |
| 有极性的插配件 | Yes |
| 树脂颜色 | Natural |
| 相关系列 | 502352, 560020 |
| 符合灼热丝规范 | No |
| 类别 | Connector Housings |
| 说明 | DuraClik Wire-to-Board Receptacle Housing, Single Row, 6 Circuits, Natural、Molex part has an inner-locking system versus an outer-locking system. Molex part with tail protection feature. |
| 重量 | 267.000/mg |
| 锁定插接部位 | Yes |
| 面板安装式 | No |
| Packaging | Bulk |
| Standard Pack Qty | 15000 |
| 单位重量（kg） | 0.00027 |
| 最大回路数 | 6 |
| 颜色 | Natural |
| 接口性别 | Receptacle |
| 耐灼热丝 | No |
| 配接防错键 | Yes |
| 配接锁定 | Yes |
| 树脂材料 | Polyester Alloy |
| 净重 | 267.000/mg |
| 面板安装 | No |
| 配接间距 | 2.00mm |
| Pitch Termination Interface | 2.00mm |
采购与包装
| 最小订购量 | 1 |
|---|---|
| 订购倍数 | 1 |
| 工厂库存 | 0 |
| 包装类型 | Bag |
合规信息
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200090 |
| CAHTS | 8538903900 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS状态 | RoHS Compliant |
| GADSL/IMDS | Compliant |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
配套关系
| 配接系列 | 502352 - DuraClik Right-Angle Single Row Headers、560020 - DuraClik Vertical Single Row Headers |
|---|---|
| 配套系列 | 560085 - DuraClik Female Crimp Terminals、50212 - Micro-Latch Female Crimp Terminals、56161 - DuraClik Female Terminals |
| 配套产品 | 0797581008 - Pre-Crimped Lead DuraClik Female-to-DuraClik Female, Tin (Sn) Plating, 150.00mm Length, 26 AWG, Black、0797581009 - Pre-Crimped Lead DuraClik Female-to-DuraClik Female, Tin (Sn) Plating, 300.00mm Length, 26 AWG, Black |
其他信息
| 产地 | 中国/CHN批量参考批次：202605 |
|---|---|
| 品名 | 塑壳 |
| 原产国 | CN,JP |
参数来自已配置的数据源，仅供选型参考；订购前请以制造商最新资料为准。
