Product information

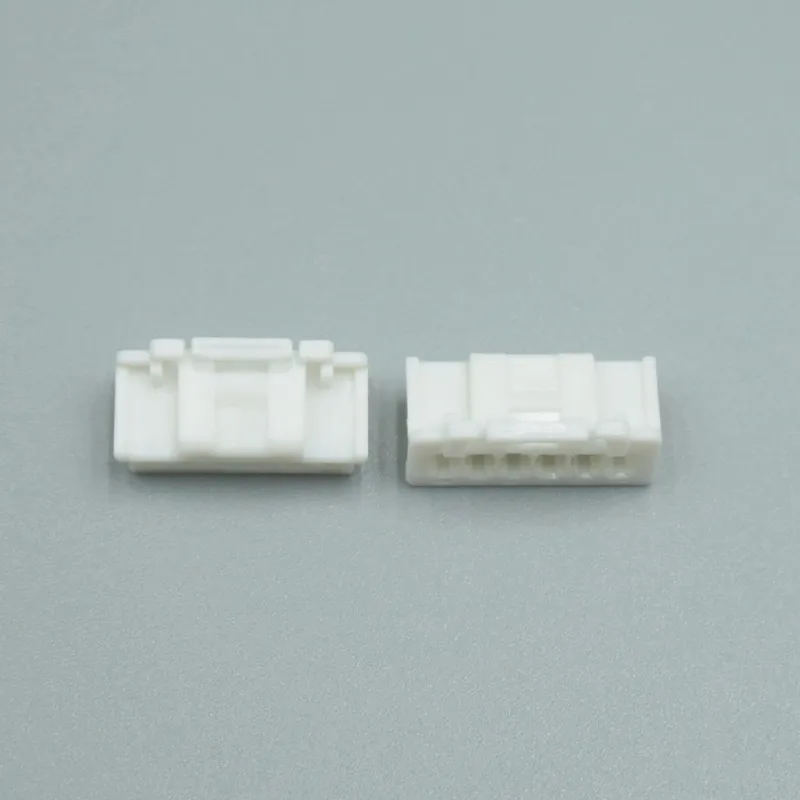

Molex 502351-0600 Connector Housing
502351-0600 is a Molex Connector Housings. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
502351-0600
Brand
Molex
Category
Connector Housings
Series
DuraClik Connector System
Applications
Telecommunications / Networking, Connected Home, Commercial Vehicle, Automotive, Signal Connections, Wire-to-Board
Technical specifications
| Product status | Active |
|---|---|
| Pitch | 2.00mm |
| Gender | Female |
| Packaging | Bag |
| Brand region | International |
| Number of rows | 1 |
| Series | 502351、502351 |
| Number of positions | 6 |
| Primary applications | Telecommunications / Networking,Connected Home,Commercial Vehicle |
| Secondary applications | DuraClik Connector System, Wire-to-Board Connectors |
| Product family | DuraClik |
| Product series | DuraClik Connector System |
| Operating temperature | -40° to +105°C |
| Applications | Automotive, Signal, Wire-to-Board |
| Mating polarization | Yes |
| Lead free | N/A |
| Resin color | Natural |
| Related series | 502352, 560020 |
| Glow-wire capable | No |
| Category | Connector Housings |
| Description | DuraClik Wire-to-Board Receptacle Housing, Single Row, 6 Circuits, Natural、Molex part has an inner-locking system versus an outer-locking system. Molex part with tail protection feature. |
| Weight | 267.000/mg |
| Panel mount | No |
| Packaging | Bulk |
| Standard Pack Qty | 15000 |
| Unit weight (kg) | 0.00027 |
| Maximum circuits | 6 |
| Color | Natural |
| Interface gender | Receptacle |
| Glow-wire capable | No |
| Mating keying | Yes |
| Mating lock | Yes |
| Resin material | Polyester Alloy |
| Net weight | 267.000/mg |
| Panel mount | No |
| Mating pitch | 2.00mm |
| Pitch Termination Interface | 2.00mm |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |

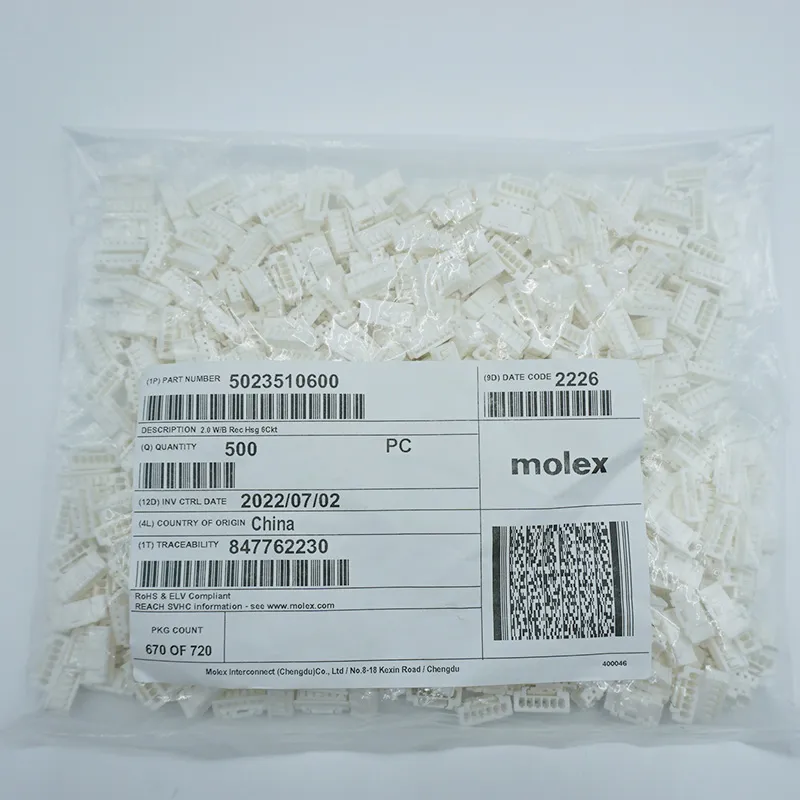

| Packaging type | Bag |
Compliance information
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200090 |
| CAHTS | 8538903900 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Compliant |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
Mating and related products
| Mating series | 502352 - DuraClik Right-Angle Single Row Headers、560020 - DuraClik Vertical Single Row Headers |
|---|---|
| Use-with series | 560085 - DuraClik Female Crimp Terminals、50212 - Micro-Latch Female Crimp Terminals、56161 - DuraClik Female Terminals |
Additional information
| Country of origin | CN,JP |
|---|
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
