产品技术规格
| 1 | 1.282 |
|---|---|
| 1734-1143-1-ND | Cut Tape (CT) |
| 1734-1143-2-ND | Tape & Reel (TR) |
| 20 | 1.221 |
| 20000 | 0.759 |
| 3D_CVM_CVM_1060-16-0622_J.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_1060-16-0622&DocType=Customer%20View%20Model&DocLang=3D&DocFormat=pdf&PartCntxt=1060-16-0622 |
| 4000 | 0.781 |
| 40000 | 0.738 |
| 80000 | 0.723 |
| Assembly Country of Origin | Not available |
| batch | N |
| BRHTS | 85366990 |
| CAHTS | 8536900020 |
| CNHTS | 8536901100 |
| Compatible Insulation Diameter Range | 1.4 – 2.5 mm [ .055 – .1 in ] |
| Compatible With Wire Base Material | Copper |
| Contact Fabrication | Stamped & Formed |
| Contact Finish | Nickel |
| Contact Finish Thickness | - |
| Country of Diffusion | Not available |
| Country of Origin | United States |
| Crimp Type | F-Crimp |
| Customer Drawing | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1060-16-06XX&DocType=Customer%20Drawing&DocLang=English&DocFormat=pdf&PartCntxt=1060-16-0622 |
| Customer Preferred Contact | Yes |
| DigiKey编号 | 1734-1143-2-ND |
| ECCN | EAR99 |
| ENG_CS_8-1773982-0_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=8-1773982-0&DocType=Catalog%20Section&DocLang=English&DocFormat=pdf&PartCntxt=1060-16-0622 |
| ENG_CVM_CVM_1060-16-0622_J.2d_dxf.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_1060-16-0622&DocType=Customer%20View%20Model&DocLang=English&DocFormat=2d_dxf.zip&PartCntxt=1060-16-0622 |
| ENG_CVM_CVM_1060-16-0622_J.3d_igs.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_1060-16-0622&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_igs.zip&PartCntxt=1060-16-0622 |
| ENG_CVM_CVM_1060-16-0622_J.3d_stp.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_1060-16-0622&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_stp.zip&PartCntxt=1060-16-0622 |
| ENG_DS_1-1773962-8_A.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-1773962-8&DocType=Data%20Sheet&DocLang=English&DocFormat=pdf&PartCntxt=1060-16-0622 |
| ENG_SS_108-151000_J.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-151000&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=1060-16-0622 |
| ENG_SS_114-151000_R.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=114-151000&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=1060-16-0622 |
| ENG_SS_502-151000_B.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=502-151000&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=1060-16-0622 |
| ENG_SS_TEC-407-55_E.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=TEC-407-55&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=1060-16-0622 |
| HTSUS编码 | 8536.90.4000 |
| Interface Plating | Nickel (Ni) |
| JPHTS | 853690000 |
| KRHTS | 8536699000 |
| Mating Pin Diameter | 1.5 mm [ .062 in ] |
| MXHTS | 8536902800 |
| 工作温度（Max） | 125 °C [ 257 °F ] |
| 工作温度 | -55 – 125 °C [ -67 – 257 °F ] |
| Packaging Method | Reel |
| Packaging Quantity | 4000 |
| Pin or Socket | Pin |
| Primary Locking Feature | Integrated in Housing |
| Product Features & Characteristics | Select All |
| Product Terminates To | Wire |
| REACH状态 | REACH Unaffected |
| Receptacle Style | 180° |
| Sealable | No |
| Standard Pack Qty | 4000 |
| TARIC | 8536901000 |
| Terminal Seal Type | Family Seal or Unsealed |
| Terminal Transmits | 0 – 24 A (Low Power) |
| Terminal Type | Pin |
| Termination Method to Wire & Cable | Crimp |
| TE内部描述 | PIN, SF, SIZE 16, 16-20, NI/SN |
| TE内部编号 | 1060-16-0622 |
| Type | Power, Stamped |
| Typical Current Rating (A) | 13 |
| USHTS | 8536904000 |
| Wire Contact Termination Area Plating Material | Tin |
| Wire Gauge | 16-20 AWG |
| Wire Size (AWG) | 20 – 16 |
| Wire Size (mm²) | .5 – 1 |
| Wire Size Search (AWG) | 16 | 18 | 20 |
| Wire Size Search (mm²) | .5 | .75 | 1 |
| 与电线基础材料兼容 | 铜 |
| 主要锁定特性 | 端子上 |
| 交期 | 32 Days |
| 产品别名 | 1060-16-0622-L |
| 产品名称 | 1060-16-0622 (TE Connectivity) |
| 产品描述 | Automotive Terminals, Pin, Pin Diameter 1.59 mm [.063 in], 20 – 16 AWG Wire Size, .52 – 1.31 mm² Wire Size, DEUTSCH Common Contact |
| 产品状态 | Id：0；Status：Active |
| 产品端接到 | 导线 |
| 产地 | 美国/USA |
| 公端/母端 | 公端 |
| 制造商交期（周） | 5 |
| 包装方式 | 卷 |
| 单位重量（kg） | 0.00032 |
| 压接类型 | F 型压接 |
| 参考单价（USD） | 0.23 |
| 可密封 | 否 |
| 可用库存 | 150429 |
| 品名 | 盘装端子 |
| 品牌归属地 | 国际 |
| 基本分类 | 连接器 |
| 官方产品图片1 | https://www.te.com/catalog/common/images/PartImages/pr1060-16-0622.jpg |
| 封装数量 | 4000 |
| 工作温度（Max） | 176 °F |
| 工作温度范围 | -67 – 257 °F |
| 接触面电镀 | 镍 (Ni) |
| 插片宽度 | 1.59mm |
| 替代包装型号 | 1060-16-0622 (Mouser Reel)、1060-16-0622 (Cut Strip)、1060-16-0622 (Loose Piece) |
| 替代型号 | 84524-0030（MOLEX）、AT60-16-0622（AMPHENOL）、HY8506-2（UELINK(寰宇科技)） |
| 湿敏等级 | Not Applicable |
| 端子传导 | 0 – 24 A（低功率） |
| 端子制造 | 冲压成形 |
| 端子大小 | 尺寸 16 |
| 端接方法 | 压接 |
| 线径-mm² | 0.52 to 1.31 mm² |
| 线规-AWG | 16 AWG |
| 绝缘 | 非绝缘 |
| 触头镀层 | 锡 |
| 贸泽编号 | 571-1060-16-0622 |
| 适用的绝缘层直径范围 | .055 – .1 in |
| 额定电流 | 13A |
| 接触件材质 | Copper Alloy |
| 包装 | Reel |
| 间距 | Size 16 |
| 系列 | - |
| 端接方式 | Crimp |
Related product information
Similar products for discovery (not a compatibility or replacement claim)
TE Connectivity 0460-204-12141 Connector TerminalTE Connectivity 5-965906-1 Connector TerminalTE Connectivity 936207-1 Connector HousingTE Connectivity 3-1534127-1 Connector HousingTE Connectivity 2822357-1 Connector SealTE Connectivity 2822354-1 Connector SealTE Connectivity 963142-3 Connector SealTE Connectivity 1564411-7 Connector Accessory
Verified inquiry information
- Packaging
- Reel
- Minimum order quantity
- 4000
Manufacturer and authorized source records
Product information

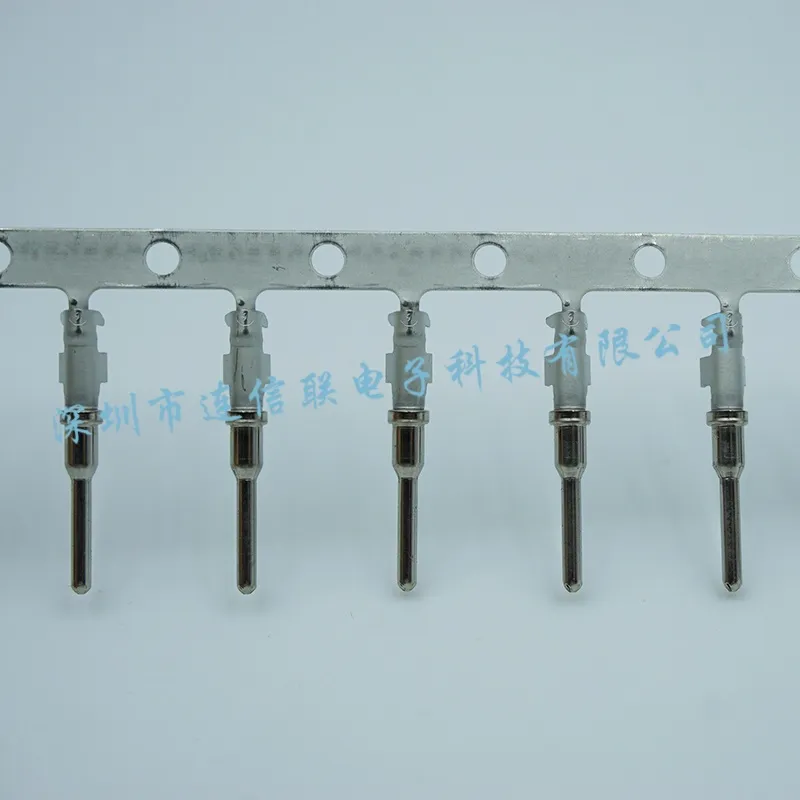

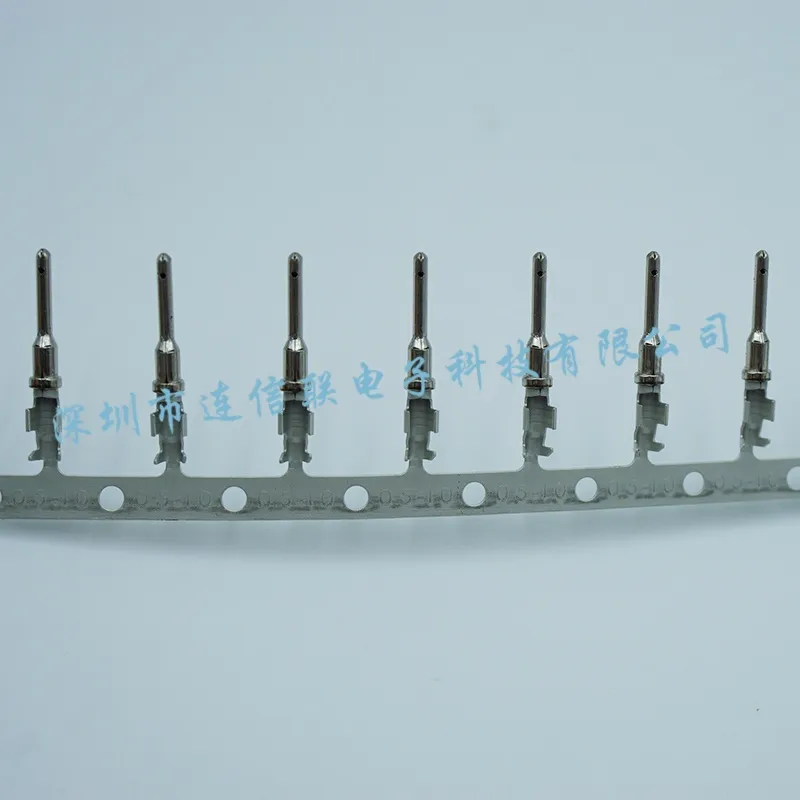

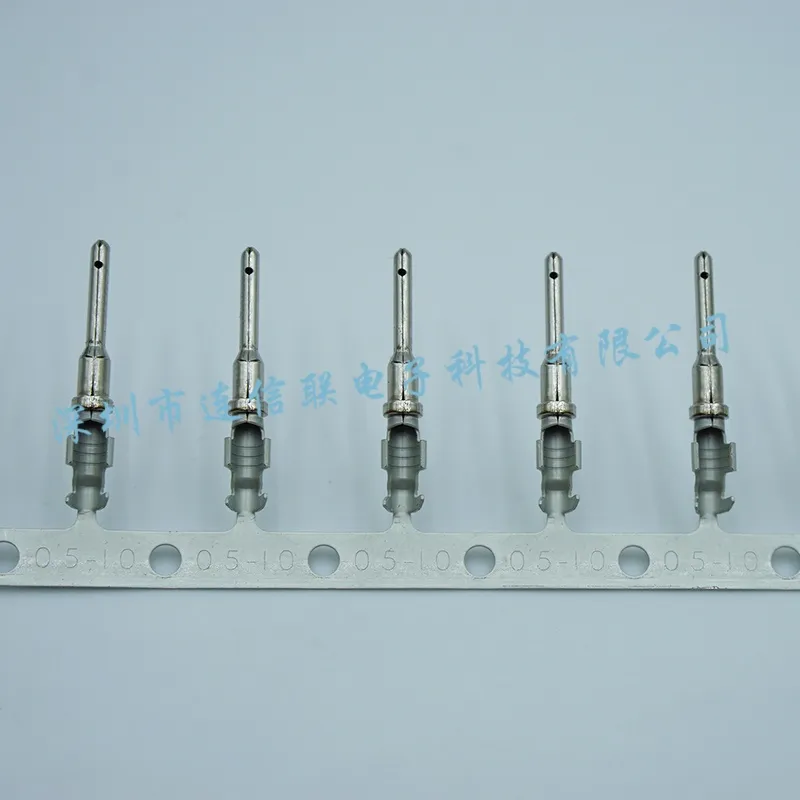

TE Connectivity 1060-16-0622 Connector Terminal
1060-16-0622 is a TE Connectivity Automotive Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
1060-16-0622
Brand
TE Connectivity
Category
Automotive Terminals
Series
Common Contact
Technical specifications
| Gender | Male |
|---|---|
| Packaging | Reel |
| Brand region | International |
| Termination method | Crimp |
| Series | Common Contact |
| Wire size (mm²) | 0.52 to 1.31 mm² |
| Wire size (AWG) | 16 AWG |
| Contact plating | Tin |
| Operating temperature | -67 – 257 °F |
| Packaging | Reel |
| Standard Pack Qty | 4000 |
| Type | Power, Stamped |
| Pin or Socket | Pin |
| Contact Termination | Crimp |
| Wire Gauge | 16-20 AWG |
| Contact Material | Copper Alloy |
| Contact Finish | Nickel |
| Contact Finish Thickness | - |
| Unit weight (kg) | 0.00032 |
| Terminal Type | Pin |
| Wire Size ( A W G) | 20 – 16 |
| Wire Size (Mm²) | .5 – 1 |
| Interface Plating | Nickel (Ni) |
Ordering and packaging
| Minimum order quantity | 4000 |
|---|---|
| Order multiple | 4000 |
Compliance information
| RoHS status | ROHS3 Compliant |
|---|---|
| REACH status | REACH Unaffected |
| Moisture sensitivity level | Not Applicable |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| KRHTS | 8536699000 |
| MXHTS | 8536902800 |
| BRHTS | 85366990 |
| Country of Origin | United States |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
