Product information

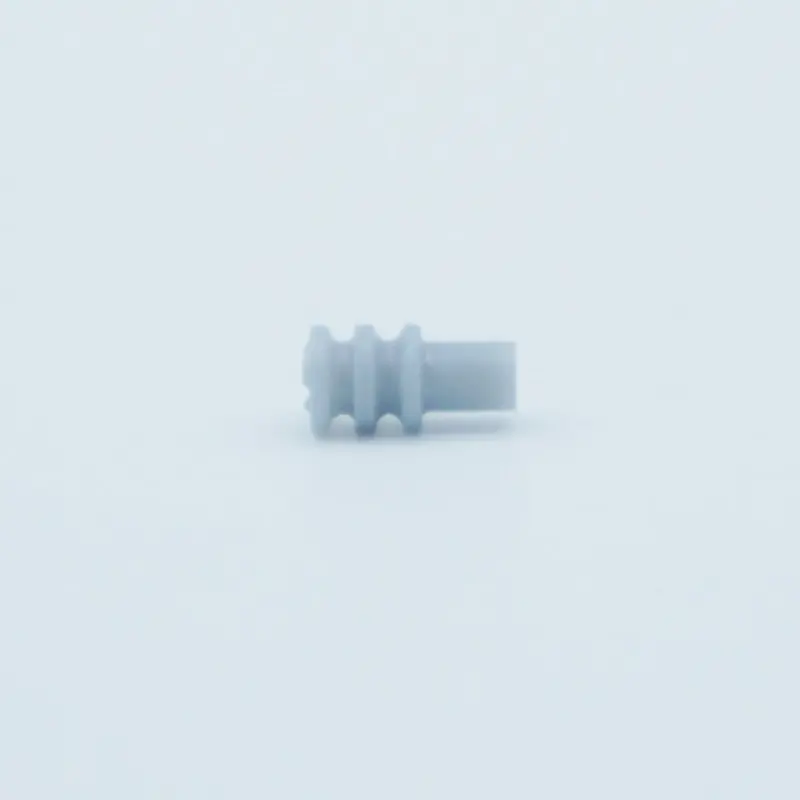

TE Connectivity 963530-1 Connector Seal
963530-1 is a TE Connectivity Connector Seals & Cavity Plugs. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
963530-1
Brand
TE Connectivity
Category
Connector Seals & Cavity Plugs
Series
Timer Connector System
Technical specifications
| Brand region | International |
|---|---|
| Series | Timer Connector System |
| Operating temperature | 149 °F、-40 – 266 °F |

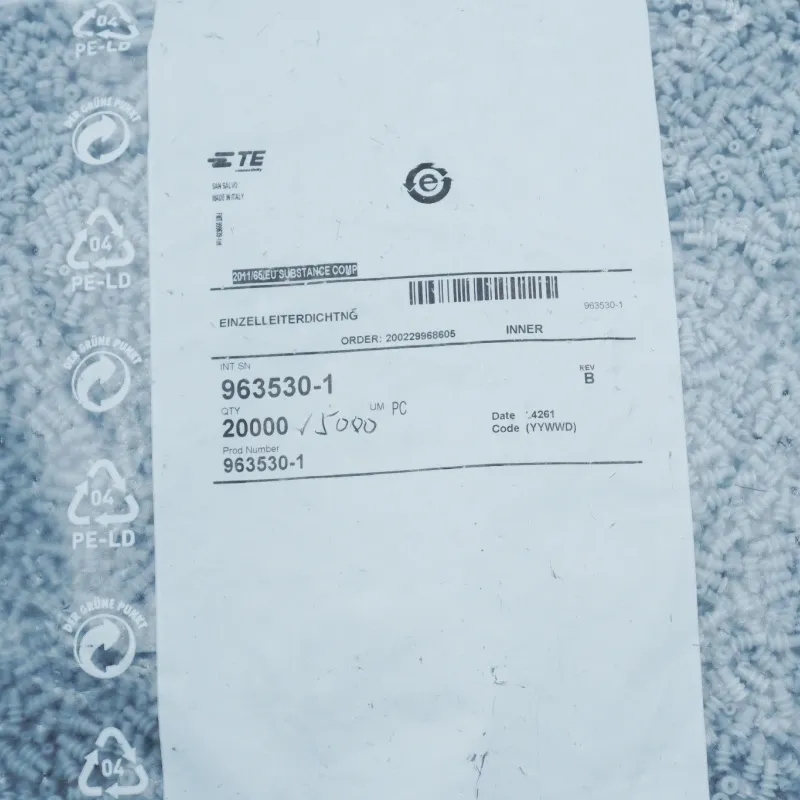

| Standard Pack Qty | 20000 |
| Unit weight (kg) | 5e-05 |
| Connector Seal & Plug Type | Single Wire Seal (SWS) |
| Cavity Diameter | 3.9 mm [ .153 in ] |
| Operating Temperature Range | -40 – 125 °C [ -40 – 257 °F ] |
| Primary Product Color | Gray |
| Primary Product Material | Silicone |
| Product Features & Characteristics | Select All |
| Wire Size ( A W G) | 20 – 18 |
| Wire Size (Mm²) | .5 – .75 |
| Compatible Insulation Diameter Range | 1.4 – 1.9 mm [ .055 – .074 in ] |
| Operating Temperature ( Max) | 125 °C [ 257 °F ] |
| Resistance To Hydrocarbons | Poor |
| Shore A Hardness Range | 50 |
| Contains Lubricant | Yes |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
Compliance information
| CNHTS | 3926909090 |
|---|---|
| TARIC | 3926909790 |
| CAHTS | 3926909130 |
| USHTS | 8538908180 |
| JPHTS | 853890000 |
| KRHTS | 8536909010 |
| MXHTS | 85369099 |
| BRHTS | 85369090 |
| ECCN | EAR99 |
| Country of Origin | United States |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
