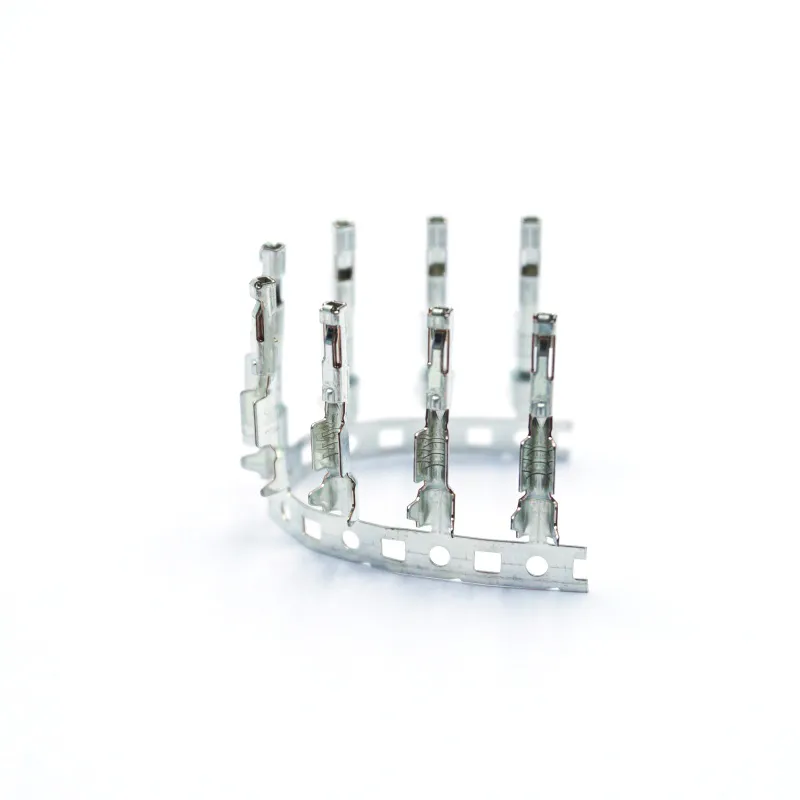

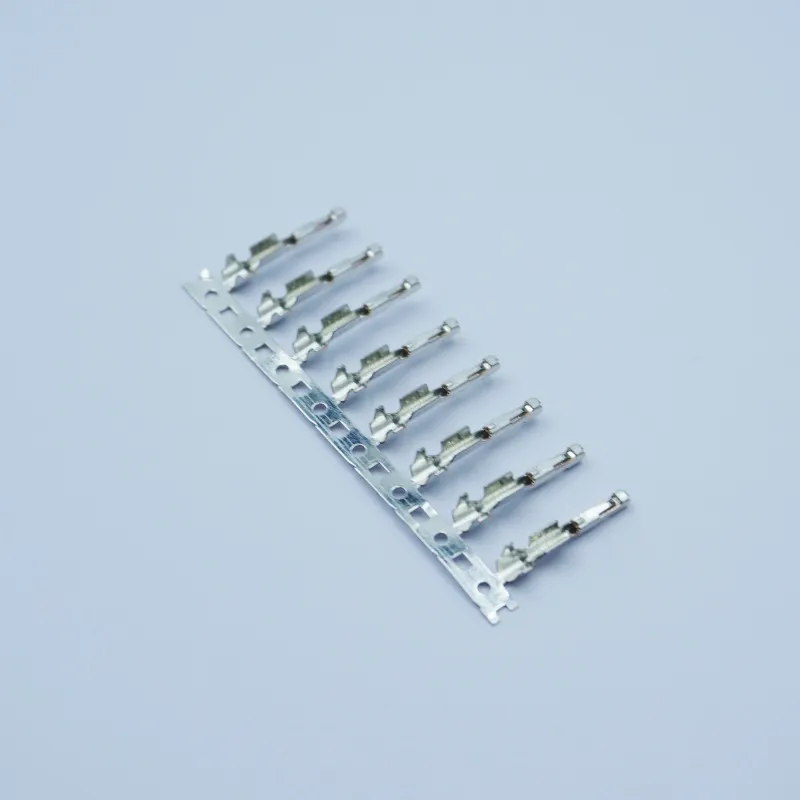

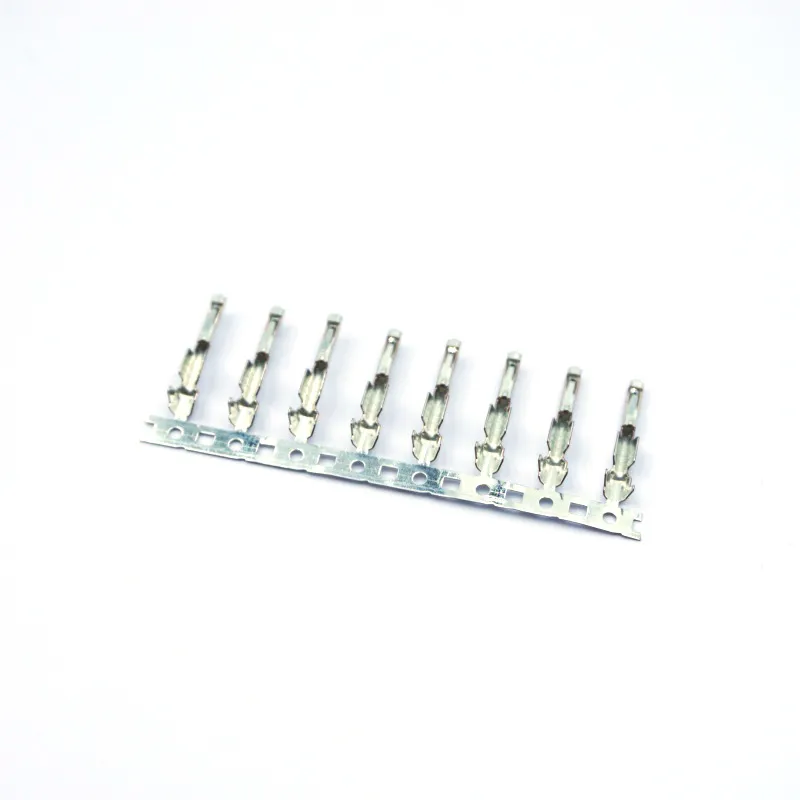

Hirose ZE05-2022SCF Wire-to-Board
ZE05-2022SCF is a Hirose Wire-to-Board. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
ZE05-2022SCF
Brand
Hirose
Category
Wire-to-Board
Series
ZE05
Technical specifications
| Brand region | International |
|---|---|
| Termination method | Crimp |
| Series | ZE05 |
| Wire size (mm²) | 0.3mm²、0.5mm² |
| Wire size (AWG) | 22、20 |
| Contact plating | Tin |
| Plating thickness | 1μm |
| Operating temperature | 125℃、-40℃ |
| Weight | 0.09g |
| Packaging | Reel |
| Standard Pack Qty | 10000 |
| Unit weight (kg) | 9e-05 |
| Connector Type | Contact |
| Cable Assembly | No |
| Rated Current | 2.0 A |
| Rated Voltage ( A C) | AC 60.0 V |
| Rated Voltage ( D C) | DC 60.0 V |
| Mating/ Unmating Cycles | 30 |
| Contact Plating | Tin |
| Plating Thickness | 1.0 μm |
| Wire Termination Method | Crimping |
| Recommended Wire Type | Discrete wire |
| Recommended Min. Wire Size ( A W G) | 22 |
| Recommended Max. Wire Size ( A W G) | 20 |
| Recommended Min. Wire Size (Mm²) | 0.3 mm² |
| Recommended Max. Wire Size (Mm²) | 0.5 mm² |
| Operating Temperature Max. | 125 ℃ |
| Operating Temperature Min. | -40 ℃ |
| Ro H S ( E U)2015/863 | Conforming |
| S V H C | 35th Non-Contained |
| Contact Resistance | 10.0 mΩ Max. |
| Packaging Type | Reel |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| TARIC | 8536901000 |
| MXHTS | 8536902800 |
| ECCN | EAR99 |
| Country of Origin | Japan |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
