产品技术规格
| 应用领域 | 工业自动化/电子设备 |
|---|---|
| 100 | 12.052 |
| A99543-ND | Bag |
| Assembly Country of Origin | Not available |
| batch | ZK |
| Body Orientation | Straight |
| BRHTS | 85366990 |
| Cable Entry Diameter | 11.51 mm [ .453 in ] |
| Cable Exit | 180° |
| Cable Opening | 0.453" (11.51mm) |
| CAHTS | 8536690020 |
| CNHTS | 8538900000 |
| Color | Black |
| Compatible With Connector Shape | Circular |
| Compatible With Connector Shell Size | 13 |
| Country of Diffusion | Not available |
| Country of Origin | Czech Republic |
| C.P.C. cable clamp kit - size 13 | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=182663&DocType=Customer%20Drawing&DocLang=English&DocFormat=tif&PartCntxt=182663-1 |
| Customer Drawing | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=182663&DocType=Customer%20Drawing&DocLang=English&DocFormat=pdf&PartCntxt=182663-1 |
| Diameter - Outside | 0.949" (24.10mm) |
| DigiKey编号 | A99543-ND |
| ECCN | EAR99 |
| ENG_CVM_182663-1_C.2d_dxf.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=182663-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=2d_dxf.zip&PartCntxt=182663-1 |
| ENG_CVM_182663-1_C.3d_igs.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=182663-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_igs.zip&PartCntxt=182663-1 |
| ENG_CVM_182663-1_C.3d_stp.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=182663-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_stp.zip&PartCntxt=182663-1 |
| ENG_CVM_182663-1_C.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=182663-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=pdf&PartCntxt=182663-1 |
| ENG_DS_9-1773984-4_2510.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=9-1773984-4&DocType=Data%20Sheet&DocLang=English&DocFormat=pdf&PartCntxt=182663-1 |
| ENG_DS_circular-plastic-connectors-catalog_2608.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=circular-plastic-connectors-catalog&DocType=Data%20Sheet&DocLang=English&DocFormat=pdf&PartCntxt=182663-1 |
| ENG_DS_cpc-protective-caps-ds-en_2601.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=cpc-protective-caps-ds-en&DocType=Data%20Sheet&DocLang=English&DocFormat=pdf&PartCntxt=182663-1 |
| Features | Clamp Screws |
| HTSUS编码 | 8205.70.0060 |
| 防护等级 | - |
| JPHTS | 853890000 |
| KRHTS | 8536691000 |
| Material | Thermoplastic |
| MXHTS | 8536699999 |
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
| Packaging Method | Bag |
| Packaging Quantity | 100 |
| Plating | - |
| Primary Product Color | Black |
| Primary Product Material | Thermoplastic |
| Product Features & Characteristics | Select All |
| Product Length | 35.6 mm [ 1.401 in ] |
| REACH状态 | REACH not applicable |
| RoHS状态 | RoHS Compliant |
| Shell Size - Insert | 13 |
| Shielded | No |
| Shielding | - |
| Standard Pack Qty | 100 |
| Strain Relief Accessory Type | Cable Clamp Kit |
| TARIC | 8538909999 |
| TE内部描述 | 13 SIZE CPC STD CLAMP |
| TE内部编号 | 182663-1 |
| Type | Backshell, Cable Clamp |
| UL Flammability Rating | UL 94V-0 |
| USHTS | 3926909989 |
| 与连接器外壳尺寸兼容 | 13 |
| 与连接器形状兼容 | 圆形 |
| 主体方向 | 直式 |
| 主体颜色 | 黑色 |
| 主要产品材料 | 热塑塑料 |
| 交期 | 154 Days |
| 产品名称 | 182663-1 (TE Connectivity) |
| 产品描述 | Unscreened, Cable Clamp & Body, .453 in [11.51 mm] Cable Entry, Thermoplastic, Straight, Shell Size 13, AMP CPC |
| 产品状态 | Id：0；Status：Active |
| 产地 | 意大利/ITA |
| 元件类型 | 线夹 |
| 制造商交期（周） | 22 |
| 包装方式 | - |
| 单位重量（kg） | 0.012 |
| 参考单价（USD） | 12.2 |
| 可用库存 | 133 |
| 品名 | 塑壳 |
| 品牌归属地 | 国际 |
| 基本分类 | 连接器 |
| 子品牌 | AMP |
| 官方产品图片1 | https://www.te.com/content/dam/te-com/catalog/part/001/826/631/182663-1-t1.jpg/jcr:content/renditions/product-details.png |
| 封装数量 | 100 |
| 年份批次 | 202510 |
| 排数 | 不适用 |
| 数据手册 | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=182663&DocType=Customer+Drawing&DocLang=English |
| 替代型号 | 92T0-00169（JiDC(济德)） |
| 湿敏等级 | 1 (Unlimited) |
| 电缆入口直径 | .453 in |
| 螺丝/孔螺纹尺寸 | 3/4-20 UNEF-2B |
| 触头材料 | 不适用 |
| 贸泽编号 | 571-182663-1 |
| 连接器后盖产品类型 | Unscreened |
| 阻燃等级 | UL94 V-0 |
| 零件编号 | 182663-1 |
| 接触件材质 | 不适用 |
| 包装 | Bulk |
| 系列 | CPC |
Related product information
Similar products for discovery (not a compatibility or replacement claim)
TE Connectivity 5-965906-1 Connector TerminalTE Connectivity 936207-1 Connector HousingTE Connectivity 3-1534127-1 Connector HousingTE Connectivity 2822357-1 Connector SealTE Connectivity 2822354-1 Connector SealTE Connectivity 963142-3 Connector SealTE Connectivity 1564411-7 Connector AccessoryTE Connectivity 1703278-2 Connector Terminal
Verified inquiry information
- Packaging
- -
- Packaging
- Bulk
- Minimum order quantity
- 1
Manufacturer and authorized source records
Product information

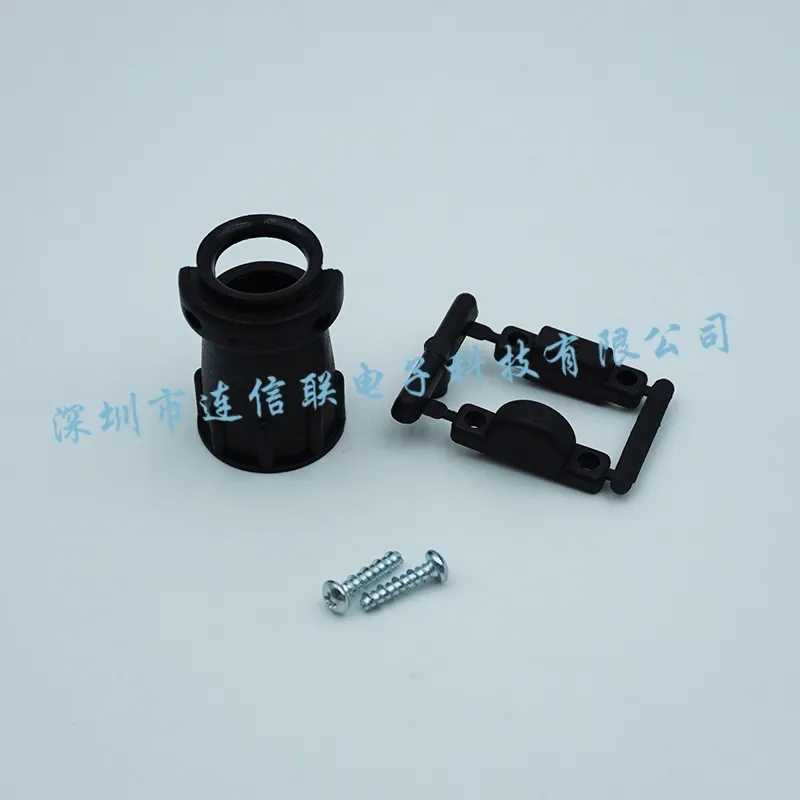

TE Connectivity 182663-1 Electrical Connector
182663-1 is a TE Connectivity Connector Strain Relief. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
182663-1
Brand
TE Connectivity
Category
Connector Strain Relief
Series
AMP CPC
Technical specifications
| Packaging | - |
|---|---|
| Brand region | International |
| Series | AMP CPC |
| Packaging | Bulk |
| Standard Pack Qty | 100 |
| Type | Backshell, Cable Clamp |
| Cable Opening | 0.453" (11.51mm) |
| Diameter - Outside | 0.949" (24.10mm) |
| Shell Size - Insert | 13 |
| Thread Size | 3/4-20 UNEF |
| Cable Exit | 180° |
| Material | Thermoplastic |
| Plating | - |
| Shielding | - |
| Color | Black |
| Features | Clamp Screws |
| Ingress Protection | - |
| Unit weight (kg) | 0.012 |
| Strain Relief Accessory Type | Cable Clamp Kit |
| Primary Product Material | Thermoplastic |
| Primary Product Color | Black |
| Compatible With Connector Shell Size | 13 |
| Cable Entry Diameter | 11.51 mm [ .453 in ] |
| Product Features & Characteristics | Select All |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
Compliance information
| RoHS status | RoHS Compliant |
|---|---|
| REACH status | REACH not applicable |
| Moisture sensitivity level | 1 (Unlimited) |
| ECCN | EAR99 |
| CNHTS | 8538900000 |
| TARIC | 8538909999 |
| CAHTS | 8536690020 |
| USHTS | 3926909989 |
| JPHTS | 853890000 |
| KRHTS | 8536691000 |
| MXHTS | 8536699999 |
| BRHTS | 85366990 |
| Country of Origin | Czech Republic |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
