Product information

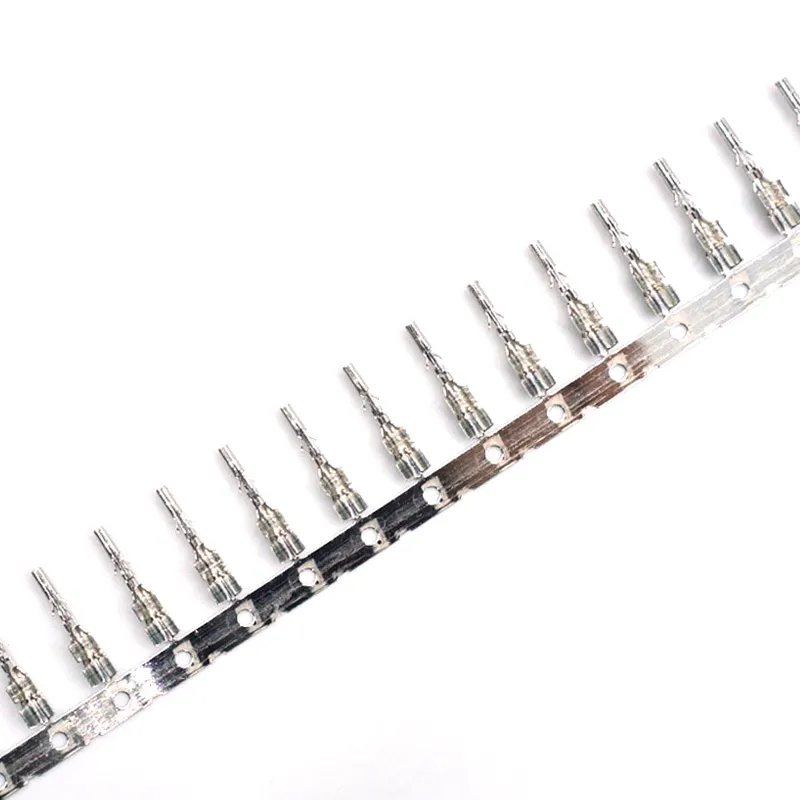

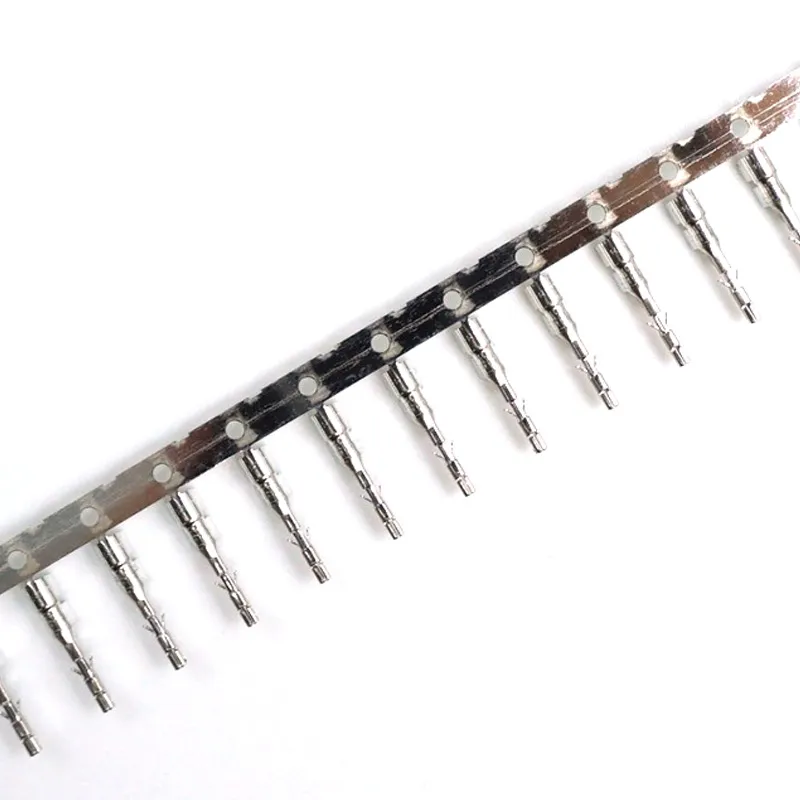

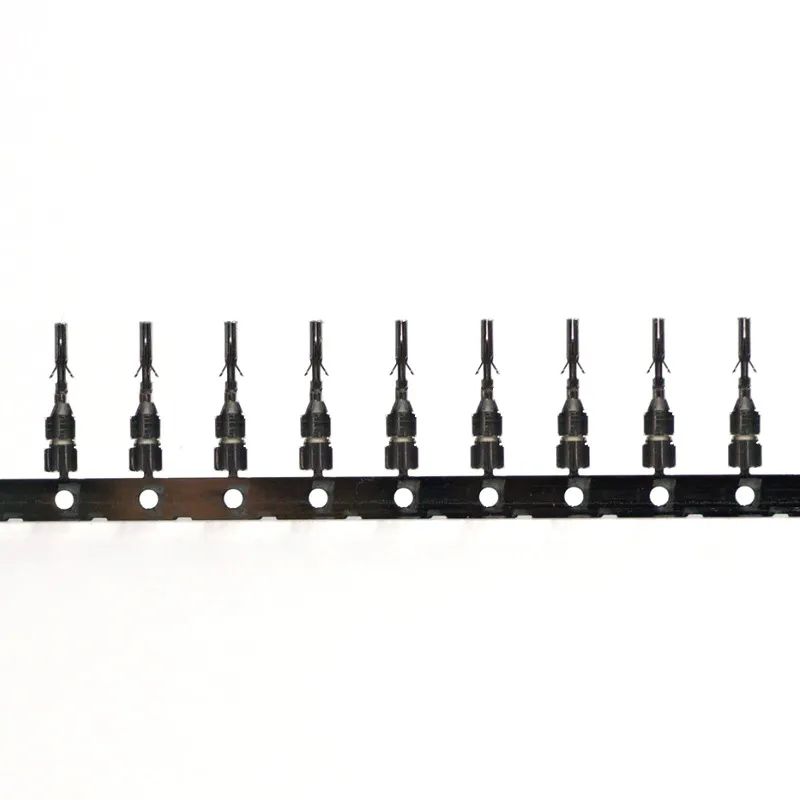

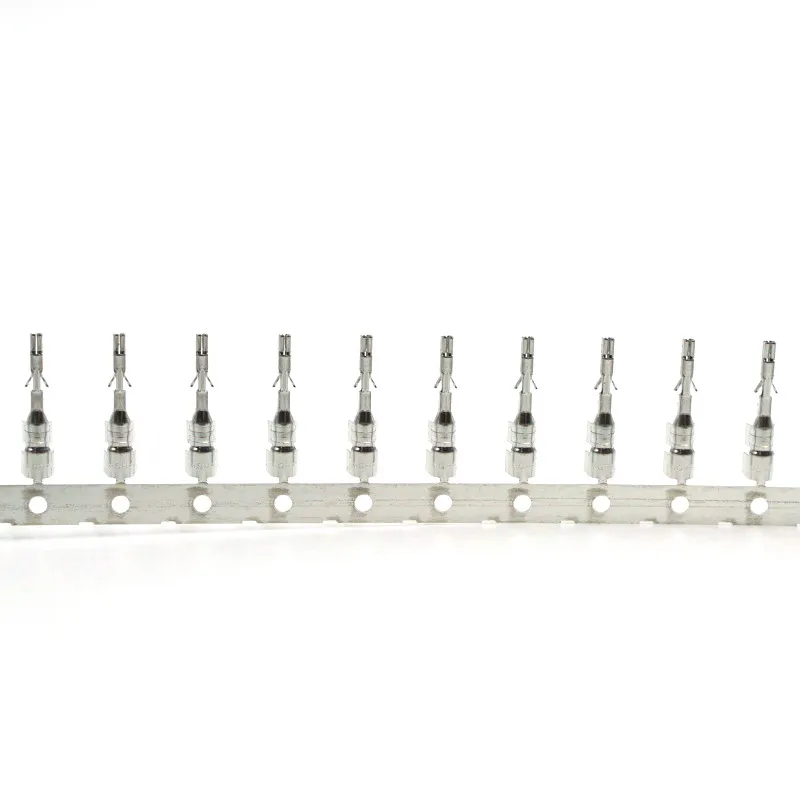

Molex 206460-0041 Connector Terminal
206460-0041 is a Molex Crimp Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
206460-0041
Brand
Molex
Category
Crimp Terminals
Series
Micro-Fit+ Connector System
Applications
Commercial Vehicle, Telecommunications / Networking, Defense, Power, Wire-to-Board, Wire-to-Wire
Technical specifications
| Product status | Active |
|---|---|
| Gender | Female |
| Packaging | Reel |
| Brand region | International |
| Termination method | Crimp |
| Series | 206460、206460 |
| Wire size (mm²) | N/A |
| Wire size (AWG) | 16 AWG |
| Contact plating | Tin |
| Primary applications | Commercial Vehicle,Telecommunications / Networking,Defense |
| Secondary applications | Power Connectors, FiT Family Power Connectors |
| Product family | Micro-Fit+ |
| Product series | Micro-Fit+ Connector System |
| Wire insulation diameter | 2.00mm |
| Applications | Power, Wire-to-Board, Wire-to-Wire |
| Category | Crimp Terminals |
| Description | Micro-Fit+ Crimp Terminal, Female, Tin (Sn) Plating, 16 AWG |
| Weight | 0.092/g |
| Metal material | High Conductivity Copper |
| Packaging | Reel |
| Standard Pack Qty | 10000 |
| Unit weight (kg) | 9.2e-05 |
| Durability Mating Cycles Max | 25 |
| Interface gender | Female |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net weight | 0.092/g |
| Plating Min Mating | 2.500µm |
| Plating Min Termination | 2.500µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 2.00mm |
| Wire Size Awg | 16 |
| Wire Size Mm | N/A |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
| Packaging type | Reel |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536901000 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 853690000 |
| MXHTS | 8536902800 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44; 34; 33 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Not Relevant |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
| UL | E29179 |
Mating and related products
| Use-with series | 206461 - Micro-Fit+ Dual Row Receptacle Housings、215759 - Micro-Fit+ Single Row Receptacle Housings |
|---|
Additional information
| Product type | Connector |
|---|---|
| Country of origin | CN |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
