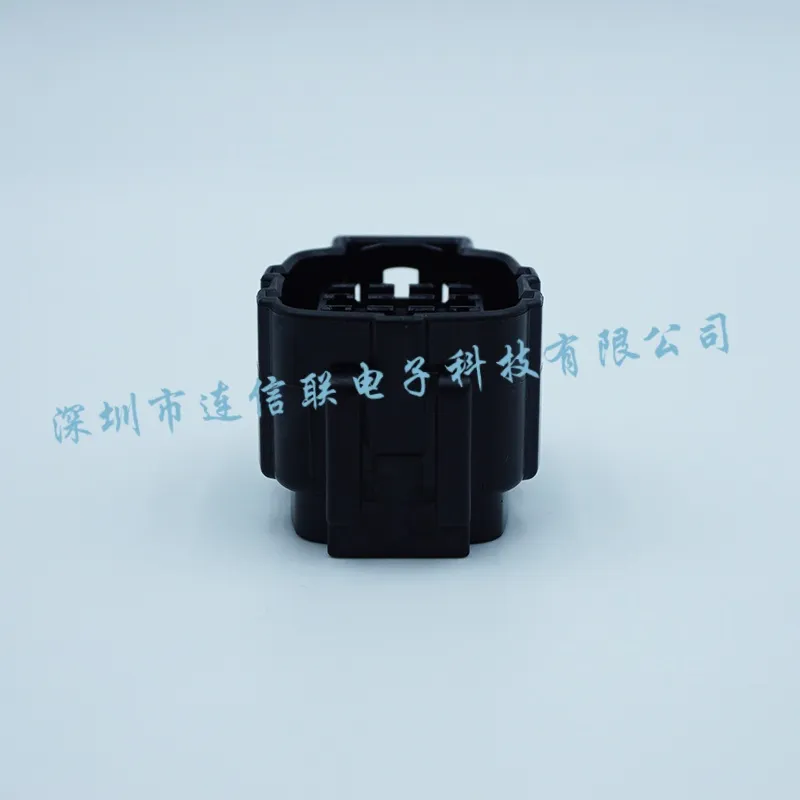

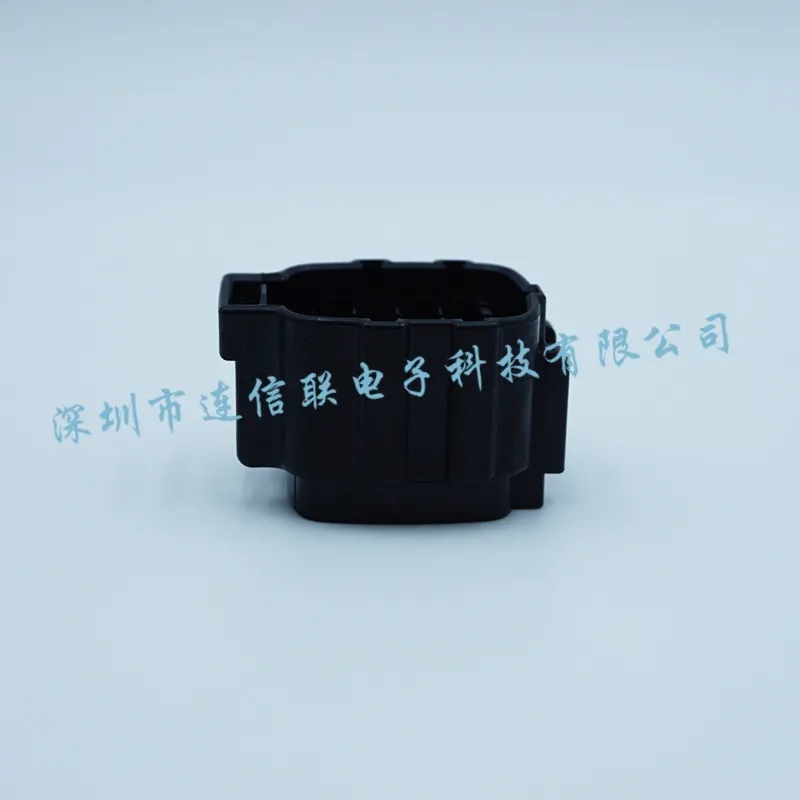

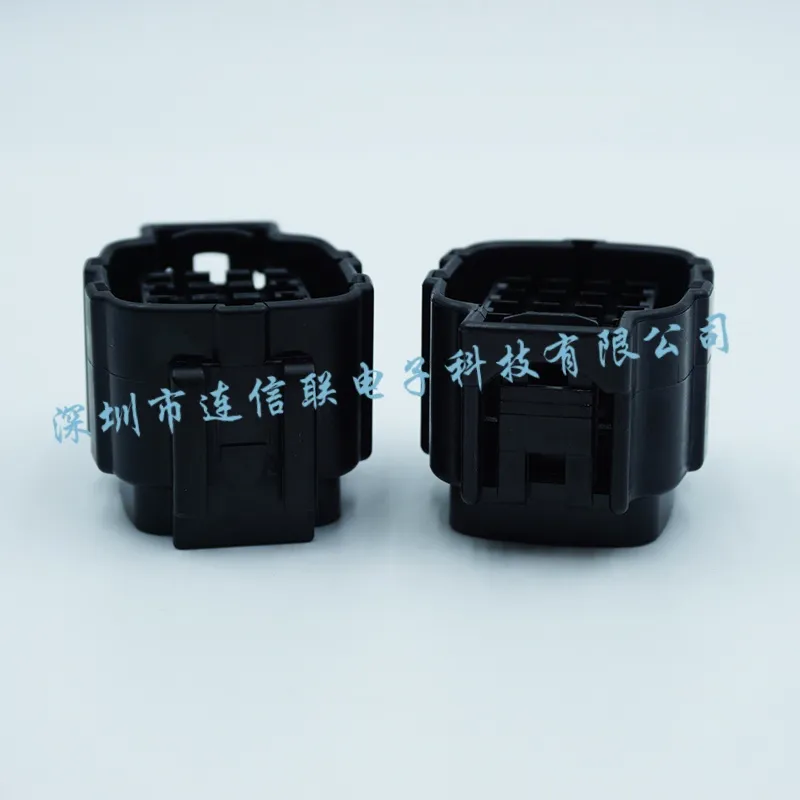

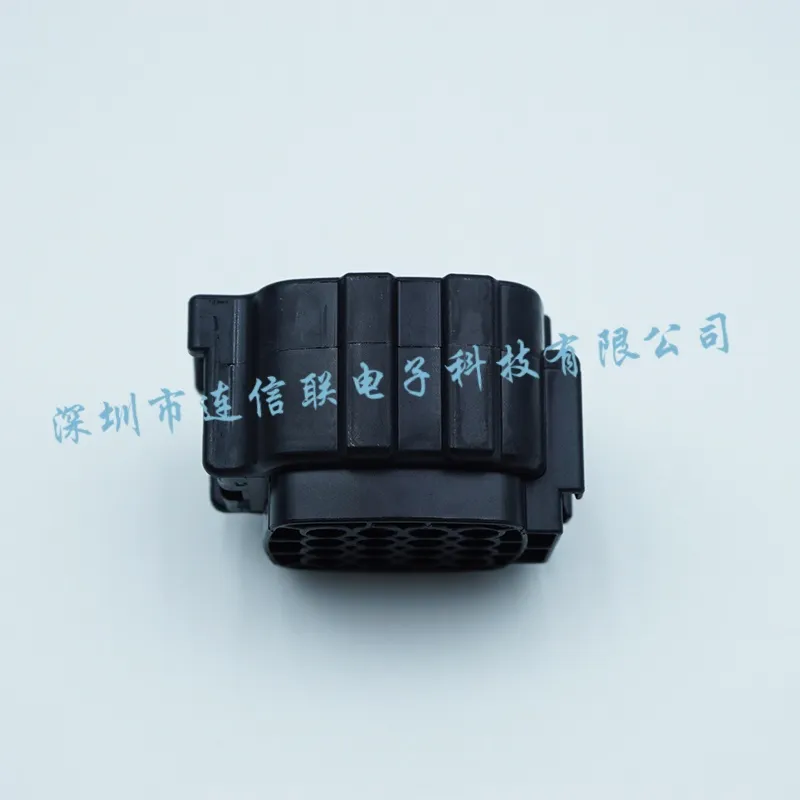

TE Connectivity 368047-1 Connector Housing

368047-1 is a TE Connectivity Automotive Housings. Review the verified specifications, packaging, compliance and availability information before ordering.

¥ 4.00

Packaging
- Piece
- Carton
- 袋

Add to cart

Add to wishlist

Sales and Website Terms
Price, availability, and lead time are subject to order confirmation

Hong Kong standard delivery: 17:00 cutoff, 3 business days handling + 3 business days transit, Monday–Friday, free shipping. View shipping policy

产品技术规格

75	3.48
A142462-ND	Tray
Assembly Country of Origin	Not available
batch	ZK
BRHTS	85389090
Cable Exit Angle (°)	180
CAHTS	8538909090
Centerline (Pitch)	4.8 mm [ .188 in ]
Circuit Application	Power
CNHTS	8547200000
Color	Black
Connector & Contact Terminates To	Wire & Cable
Connector Height	30.6 mm [ 1.2 in ]
Connector & Housing Type	Housing for Female Terminals
Connector Mounting Type	Free-Hanging (In-Line)
Connector Position Assurance Capable	No
Connector Shape	Rectangular
Connector System	Wire-to-Wire
Connector Type	Plug
Country of Diffusion	Not available
Country of Origin	Korea, Republic of
Customer Drawing	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=368047&DocType=Customer%20Drawing&DocLang=English&DocFormat=pdf&PartCntxt=368047-1
DigiKey编号	A142462-ND
ECCN	EAR99
ENG_CS_1654365_Econoseal_0911.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1654365_Econoseal&DocType=Catalog%20Section&DocLang=English&DocFormat=pdf&PartCntxt=368047-1
ENG_CVM_368047-1_C.2d_dxf.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=368047-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=2d_dxf.zip&PartCntxt=368047-1
ENG_CVM_368047-1_C.3d_igs.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=368047-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_igs.zip&PartCntxt=368047-1
ENG_CVM_368047-1_C.3d_stp.zip	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=368047-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_stp.zip&PartCntxt=368047-1
ENG_CVM_368047-1_C.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=368047-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=pdf&PartCntxt=368047-1
Fastening Type	Locking Ramp
Features	-
Housing Material	Polybutylene Terephthalate (PBT)
HTSUS编码	8536.69.8000
Insulation Material	Polybutylene Terephthalate (PBT)
JPHTS	853890000
Mating Alignment	With
Mating Alignment Type	Polarizing Slot
Mating Tab Width	1.8 mm [ .07 in ]
Mixed & Hybrid Connector	No
Nominal Voltage Architecture (V)	12
Number of Rows	4
Packaging Method	Bag
Packaging Quantity	75
Primary Locking Feature	Integrated in Housing
Primary Product Color	Black
Product Features & Characteristics	Select All
Product Length	44.4 mm [ 1.74 in ]
Product Width	27.6 mm [ 1.08 in ]
REACH状态	REACH Unaffected
Row Spacing	0.220" (5.60mm)
Row-to-Row Spacing	5.6 mm [ .22 in ]
S_108-61054_O.pdf	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-61054&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=368047-1
S_108-61054_O.tif	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-61054&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=tif&PartCntxt=368047-1
Sealable	Yes
Serviceable	No
Standard Pack Qty	75
Strain Relief	Without
TARIC	8538909999
Terminal Position Assurance	No
TE 内部产品描述	E-S MK-2(+) 16P PLUG ASSY
TE内部描述	E-S MK-2(+) 16P PLUG ASSY
TE内部编号	368047-1
USHTS	8538908180
中心线（间距）	4.8 mm [.188 in]
主体颜色	黑色
主要产品颜色	Black
主要锁定特性	外壳集成
交期	126 Days
产品名称	368047-1 (TE Connectivity)
产品宽度	1.08 in
产品描述	Housing for Female Terminals, Wire-to-Wire, 16 Position, .188 in [4.8 mm] Centerline, Sealable, Black, Wire & Cable, Signal, Econoseal J - Mark II
产品状态	Id：0；Status：Active
产品长度	1.2 in
产地	韩国/KOR
公端/母端	母端
出线角度	180°
制造商交期（周）	18
包装方式	托盘
单位重量（kg）	0.01625
参考单价（USD）	2.56
可密封	是
可密封性	是
可用库存	836
可维修	否
品名	塑壳
品牌归属地	国际
基本分类	连接器
外壳材料	PBT
子品牌	TE Connectivity
官方产品图片1	https://www.te.com/content/dam/te-com/catalog/part/003/680/471/368047-1-t1.jpg/jcr:content/renditions/product-details.png
对接公端宽度	.047 in
封装数量	50
工组温度范围	-30 – 105 °C [ -22 – 221 °F ]
年份批次	202501
应力消除	不带
排数	4
排距	0.220"（5.60mm）
接合对准	带有
接合对准类型	极化槽
数据手册	https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=368047&DocType=Customer%20Drawing&DocLang=English&PartCntxt=368047-1&DocFormat=pdf
替代型号	92T7-00028（JiDC(济德)）、307416001AAH（胡连）
标称电压架构 (V)	12
混合型连接器	否
湿敏等级	1 (Unlimited)
电路应用	Signal
端子位置保证	否
端子大小	1.8mm
能够保证连接器位置	否
行距	5.59mm
贸泽编号	571-368047-1
连接器和壳体类型	母端子护套
连接器和端子端接到	电线和电缆
连接器形状	矩形
连接器类型	插头
连接器系统	Wire-to-Wire
连接器高度	1.74 in
针位数	16
零件编号	368047-1
安装风格	Free Hanging (In-Line)
工作温度（Max）	105 °C [ 221 °F ]
芯数	16
系列	EconoSeal J Mark II
端接方式	Crimp

Brand：TE Connectivity Category：Automotive Housings Series：Econoseal J - Mark II
