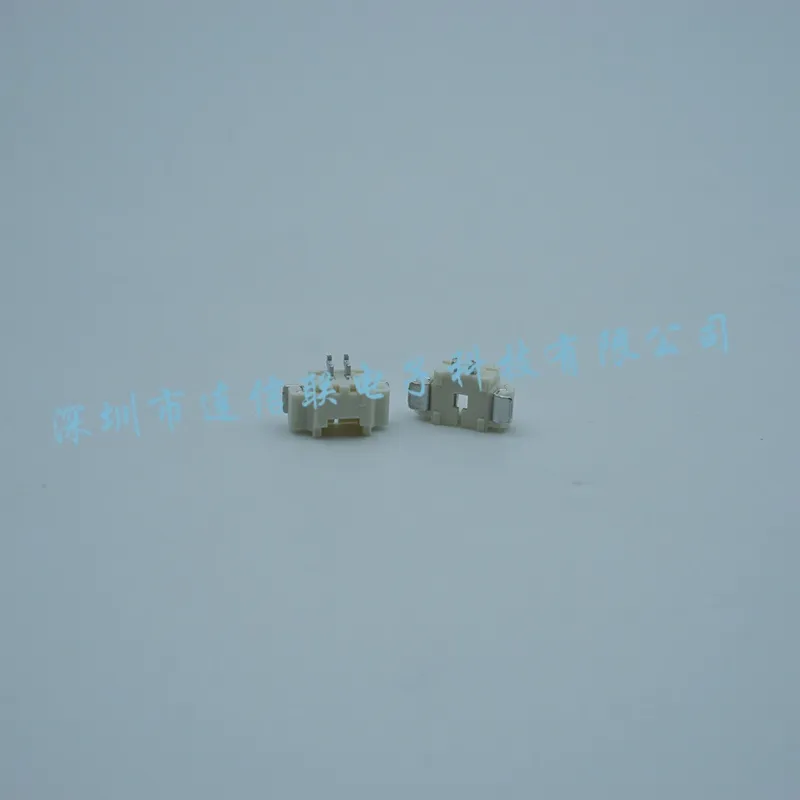

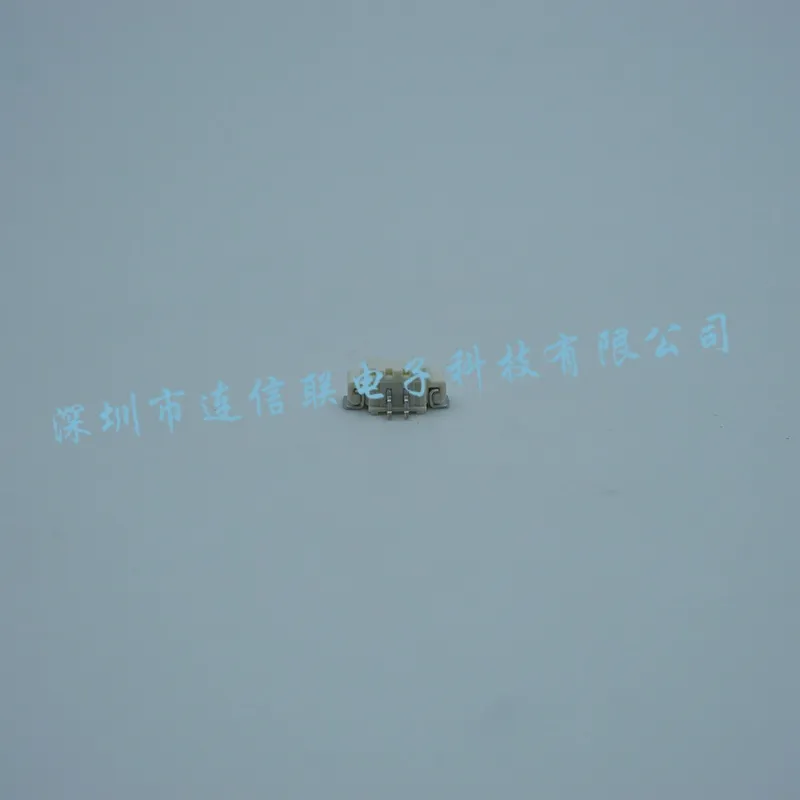

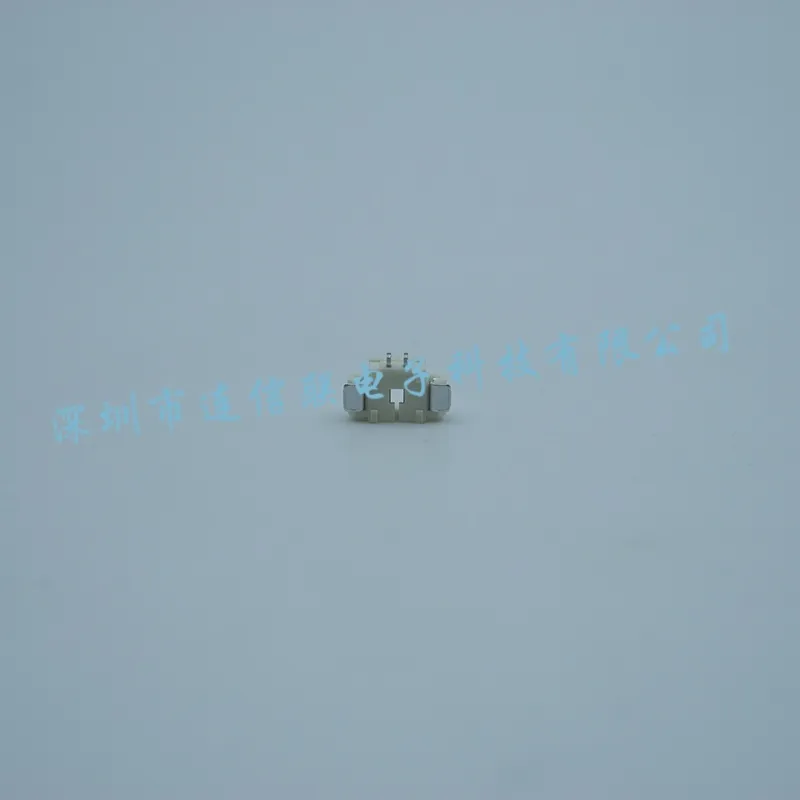

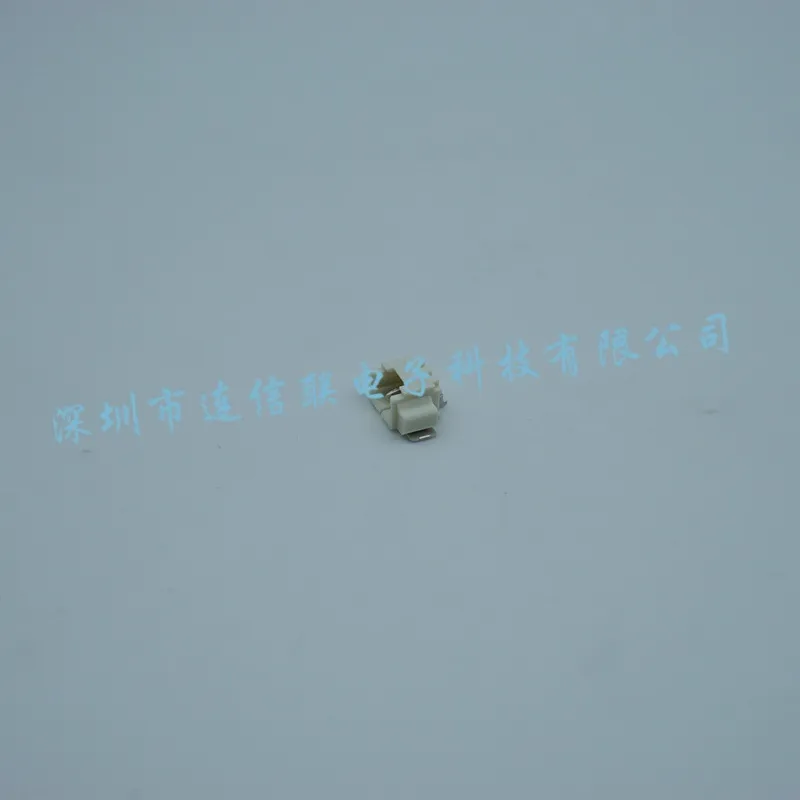

Molex 53261-0271 Connector Header
53261-0271 is a Molex PCB Headers and Receptacles. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
53261-0271
Brand
Molex
Category
PCB Headers and Receptacles
Technical specifications
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 12800 |
| Unit weight (kg) | 0.00012 |
| Breakaway | No |
| Circuits Loaded | 2 |
| Maximum circuits | 2 |
| Color | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Interface gender | Male |
| Glow-wire capable | No |
| Guide To Mating Part | Yes |
| Mating keying | No |
| Mating lock | Yes |
| Mated Height | 3.40mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Resin material | Polyamide (PA) |
| Net weight | 122.260/mg |
| Number of rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Mating pitch | 1.25mm |
| Pitch Termination Interface | 1.25mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Operating temperature | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
| Packaging type | Embossed Tape on Reel |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536693000 |
| CAHTS | 8536690020 |
| USHTS | 8536694040 |
| JPHTS | 853669000 |
| KRHTS | 8536691000 |
| MXHTS | 8536699999 |
| BRHTS | 85366990 |
| ECCN | EAR99 |
| Country of Origin | Malaysia |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44; 33 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
| CSA | LR19980 |
| UL | E29179 |
Mating and related products
| Mating series | 51021 - PicoBlade Single Row Receptacle Housings、15134 - PicoBlade Female-to-PicoBlade Female Off-the-Shelf (OTS) Cable Assemblies |
|---|
Additional information
| Product status | Active |
|---|---|
| Country of origin | JP,KR,MX,MY,SG |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
