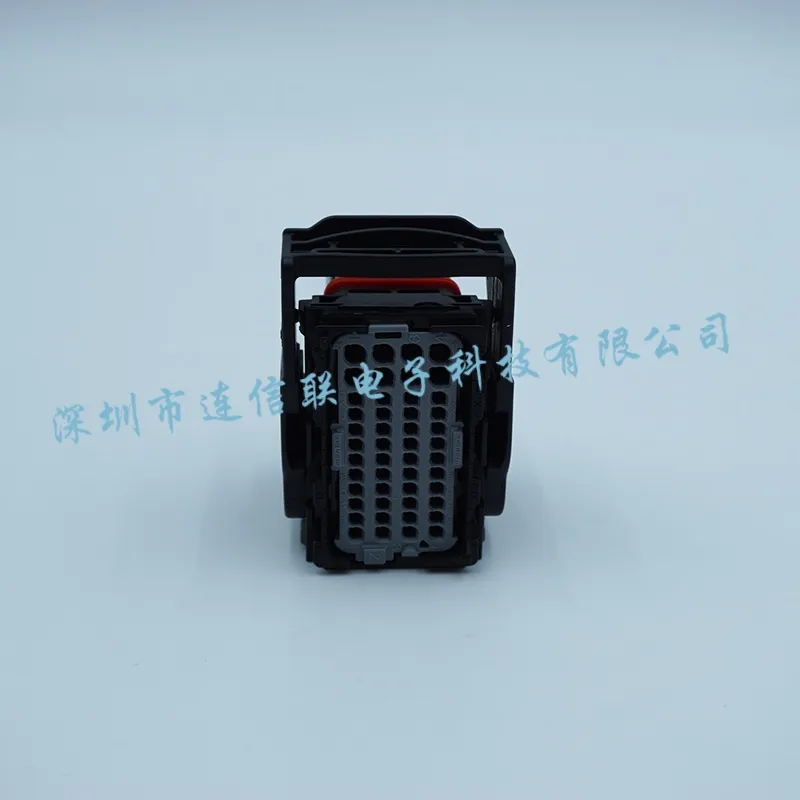

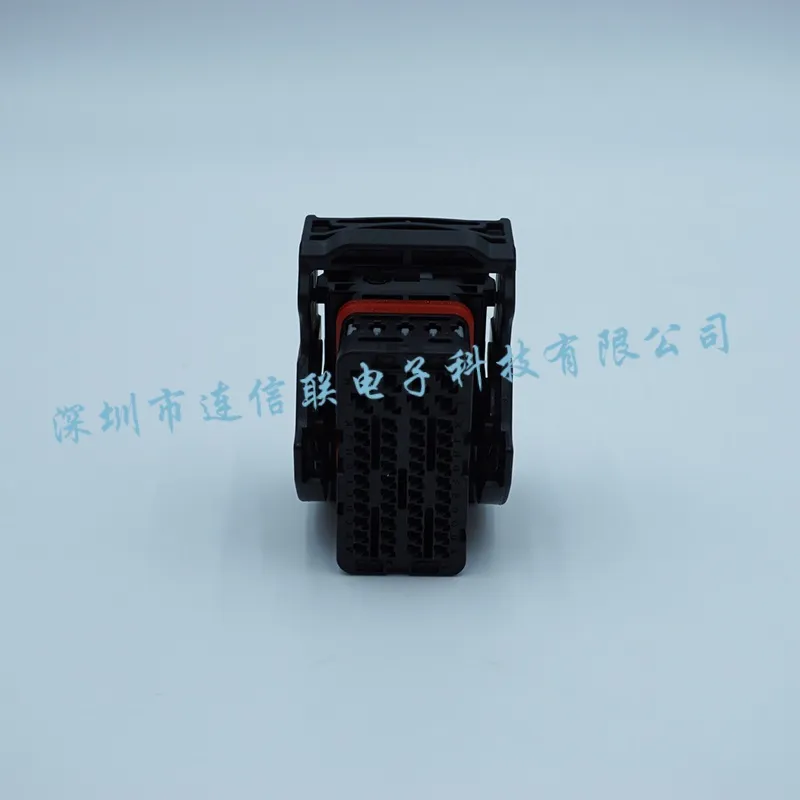

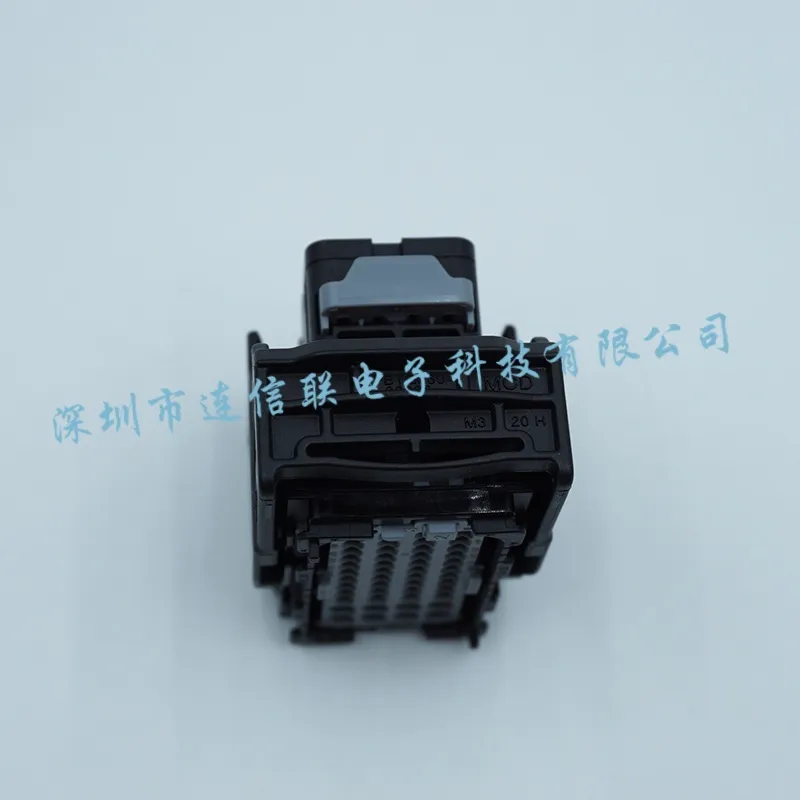

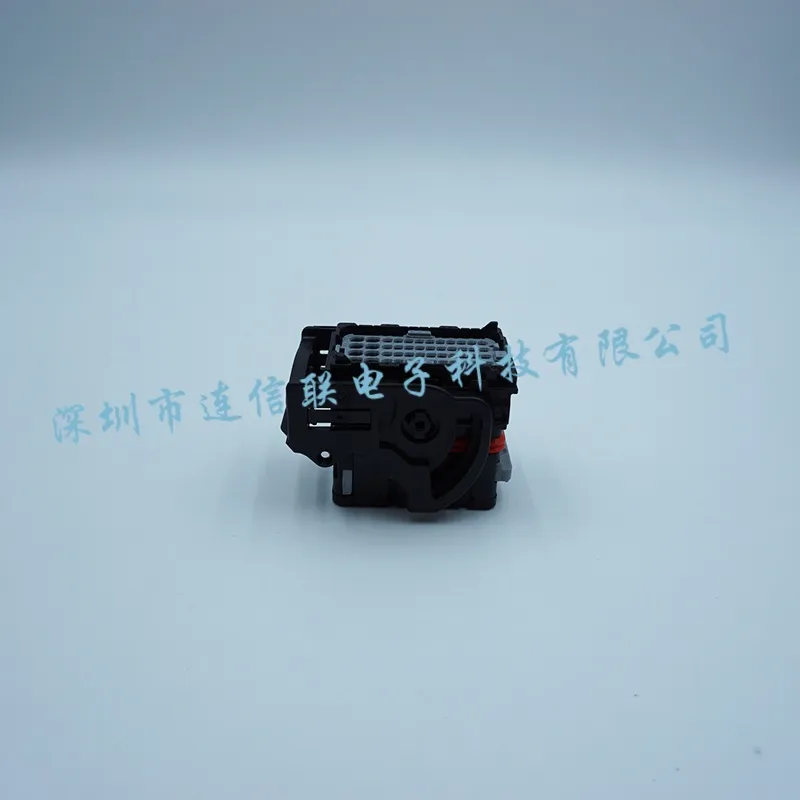

Molex 64320-3311 Connector Housing
64320-3311 is a Molex Connector Housings. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
64320-3311
Brand
Molex
Category
Connector Housings
Series
CMC and CMX Sealed, Hybrid Series
Applications
Automotive, Power Connections, Wire-to-Board, Modular Connections, Wire-to-Wire
Technical specifications
| Product status | Active |
|---|---|
| Pitch | 2.54mm,3.70mm |
| Gender | Female |
| Brand region | International |
| Number of rows | 4 |
| Series | 64320、64320 |
| Number of positions | 48 |
| Primary applications | Automotive |
| Secondary applications | CMC and CMX Sealed, Hybrid, Modular Connectors, Power Connectors, Wire-to-Wire Connectors, Wire-to-Board Connectors |
| Product family | CMC |
| Product series | CMC and CMX Sealed, Hybrid, Modular Connectors |
| Operating temperature | -40° to +125°C |
| Applications | Automotive, Power, Wire-to-Board |
| Mating polarization | Yes |
| Lead free | N/A |
| Resin material | Polyester |
| Resin color | Black |
| Related series | 5007620481, 36638 |
| Glow-wire capable | No |
| Category | Connector Housings |
| Description | .635mm, 1.50mm, CMC Receptacle, 48 Circuits, Right Wire Output, Black Coding, Mat Sealed、Current tested on a 5 terminals loaded connector, current for temperature increase of 40°C; Current max = 6.0A for 0.635mm Terminal (0.75mm² wire) and 12.0A for 1.50mm Terminal (2.00mm² wire) |
| Weight | 35.680/g |
| Panel mount | No |
| Packaging | Bulk |
| Standard Pack Qty | 220 |
| Unit weight (kg) | 0.03568 |
| Circuits Detail | 8 x 1.5mm & 40 x 0.635mm terminals |
| Maximum circuits | 48 |
| Color | Black |
| Interface gender | Receptacle |
| Glow-wire capable | No |
| Mating keying | Yes |
| Mating lock | Yes |
| Net weight | 35.680/g |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
| Packaging type | Carton |
Compliance information
| REACH-SVHC | Decamethylcyclopentasiloxane [D5] (541-02-6)、Octamethylcyclotetrasiloxane [D4] (556-67-2)、Dodecamethylcyclohexasiloxane [D6] (540-97-6) |
|---|---|
| CNHTS | 8547200000 |
| TARIC | 8547200090 |
| CAHTS | 8538903900 |
| USHTS | 8538908180 |
| JPHTS | 853890000 |
| BRHTS | 85389090 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Compliant |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Not Reviewed per California Proposition 65 |
| REACH SVHC | Contains Dodecamethylcyclohexasiloxane; Decamethylcyclopentasiloxane; Octamethylcyclotetrasiloxane per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
Mating and related products
| Mating series | 36638 - CMC Right-Angle Headers |
|---|---|
| Use-with series | 64322 - 0.635mm CMC CP Female Terminals、64323 - 1.50mm CMC CP Female Terminals |
Additional information
| Country of origin | CN,FR,IN,US |
|---|
