产品技术规格
| 12500 | 2.939 |
|---|---|
| 2500 | 3.023 |
| 25000 | 2.855 |
| 3D_CVM_CVM_929504-1_N.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_929504-1&DocType=Customer%20View%20Model&DocLang=3D&DocFormat=pdf&PartCntxt=929504-1 |
| 50000 | 2.8 |
| A126784-ND | Bulk |
| Assembly Country of Origin | Not available |
| batch | ZK |
| BRHTS | 85389090 |
| Cable Exit Angle (°) | 180 |
| CAHTS | 8538903900 |
| Centerline (Pitch) | 5 mm [ .197 in ] |
| Circuit Application | Power |
| CNHTS | 8547200000 |
| Color | Black |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Height | 29.5 mm [ 1.16 in ] |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Mounting Type | Free-Hanging (In-Line) |
| Connector Position Assurance Capable | No |
| Connector Shape | Rectangular |
| Connector System | Wire-to-Board | Wire-to-Wire |
| Connector Type | Receptacle |
| Contact Current Rating (Max) (A) | 30 |
| Country of Diffusion | Not available |
| Country of Origin | Belgium |
| Customer Drawing | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=929504&DocType=Customer%20Drawing&DocLang=English&DocFormat=pdf&PartCntxt=929504-1 |
| DigiKey编号 | A126784-ND |
| ECCN | EAR99 |
| ENG_CVM_CVM_929504-1_N.2d_dxf.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_929504-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=2d_dxf.zip&PartCntxt=929504-1 |
| ENG_CVM_CVM_929504-1_N.3d_igs.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_929504-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_igs.zip&PartCntxt=929504-1 |
| ENG_CVM_CVM_929504-1_N.3d_stp.zip | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=CVM_929504-1&DocType=Customer%20View%20Model&DocLang=English&DocFormat=3d_stp.zip&PartCntxt=929504-1 |
| ENG_SS_108-18013_F.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=108-18013&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=929504-1 |
| ENG_SS_114-18050_U.pdf | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=114-18050&DocType=Specification%20Or%20Standard&DocLang=English&DocFormat=pdf&PartCntxt=929504-1 |
| Fastening Type | - |
| Features | - |
| Housing Material | Polybutylene Terephthalate (PBT) |
| HTSUS编码 | 8536.69.8000 |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| JPHTS | 853890000 |
| Mating Alignment | With |
| Mating Alignment Type | Polarization |
| Mating Tab Width | 2.8 mm [ .11 in ] |
| Mixed & Hybrid Connector | No |
| MXHTS | 8538900100 |
| Nominal Voltage Architecture (V) | 12 | 24 | 48 |
| Number of Rows | 2 |
| Packaging Method | Carton |
| Packaging Quantity | 3000 |
| Primary Locking Feature | Integrated in Housing | Locking Lance |
| Primary Product Color | Black |
| Product Features & Characteristics | Select All |
| Product Length | 18.5 mm [ .728 in ] |
| Product Width | 29.5 mm [ 1.16 in ] |
| REACH状态 | REACH not applicable |
| Row Spacing | 0.220" (5.60mm) |
| Row-to-Row Spacing | 5.6 mm [ .22 in ] |
| Sealable | No |
| Serviceable | No |
| Standard Pack Qty | 2500 |
| Strain Relief | Without |
| TARIC | 8547200090 |
| Terminal Position Assurance | No |
| TE内部描述 | 2X 2P JUN POW TIMGH |
| TE内部编号 | 929504-1 |
| USHTS | 8538906000 |
| 中心线（间距） | .197 in |
| 主体颜色 | 黑色 |
| 主要锁定特性 | 外壳集成 |
| 交期 | 126 Days |
| 产品名称 | 929504-1 (TE Connectivity) |
| 产品宽度 | .629 in |
| 产品描述 | Housing for Female Terminals, Wire-to-Board / Wire-to-Wire, 4 Position, .197 in [5 mm] Centerline, Black, Wire & Cable, Power, Junior Power Timer |
| 产品状态 | Id：0；Status：Active |
| 产品长度 | .728 in |
| 产地 | 瑞士/CHE |
| 公端/母端 | 母端 |
| 出线角度 | 180° |
| 制造商交期（周） | 18 |
| 包装方式 | 箱 |
| 单位重量（kg） | 0.002286 |
| 参考单价（USD） | 1.15 |
| 可密封性 | 否 |
| 可用库存 | 1750 |
| 可维修 | 否 |
| 品名 | 塑壳 |
| 品牌归属地 | 国际 |
| 基本分类 | 连接器 |
| 外壳材料 | PBT |
| 子品牌 | AMP |
| 官方产品图片1 | https://www.te.com/content/dam/te-com/catalog/part/009/295/041/929504-1-t1.jpg/jcr:content/renditions/product-details.png |
| 对接公端宽度 | .118 in |
| 封装数量 | 3000 |
| 年份批次 | 202605 |
| 应力消除 | 不带 |
| 排数 | 2 |
| 接合对准 | 带有 |
| 接合对准类型 | 极化 |
| 数据手册 | https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=929504&DocType=Customer%20Drawing&DocLang=English&DocFormat=pdf&PartCntxt=929504-1 |
| 替代型号 | 97T4-00004（JiDC(济德)） |
| 混合型连接器 | 否 |
| 湿敏等级 | 1 (Unlimited) |
| 电路应用 | 电源 |
| 端子位置保证 | 否 |
| 端子大小 | 2.8mm |
| 能够保证连接器位置 | 否 |
| 行距 | 5.59mm |
| 贸泽编号 | 571-929504-1 |
| 连接器和壳体类型 | 母端子护套 |
| 连接器和端子端接到 | 电线和电缆 |
| 连接器形状 | 矩形 |
| 连接器系统 | 线到板 |
| 连接器高度 | 1.16 in |
| 针位数 | 4 |
| 零件编号 | 929504-1 |
| 安装风格 | Free Hanging (In-Line) |
| 工作温度（Max） | 130 °C [ 266 °F ] |
| 芯数 | 4 |
| 系列 | Junior Power Timer |
| 端接方式 | Crimp |
Related product information
Similar products for discovery (not a compatibility or replacement claim)
TE Connectivity 5-965906-1 Connector TerminalTE Connectivity 936207-1 Connector HousingTE Connectivity 3-1534127-1 Connector HousingTE Connectivity 2822357-1 Connector SealTE Connectivity 2822354-1 Connector SealTE Connectivity 963142-3 Connector SealTE Connectivity 1564411-7 Connector AccessoryTE Connectivity 1703278-2 Connector Terminal
Verified inquiry information
- Minimum order quantity
- 1
Manufacturer and authorized source records
Product information

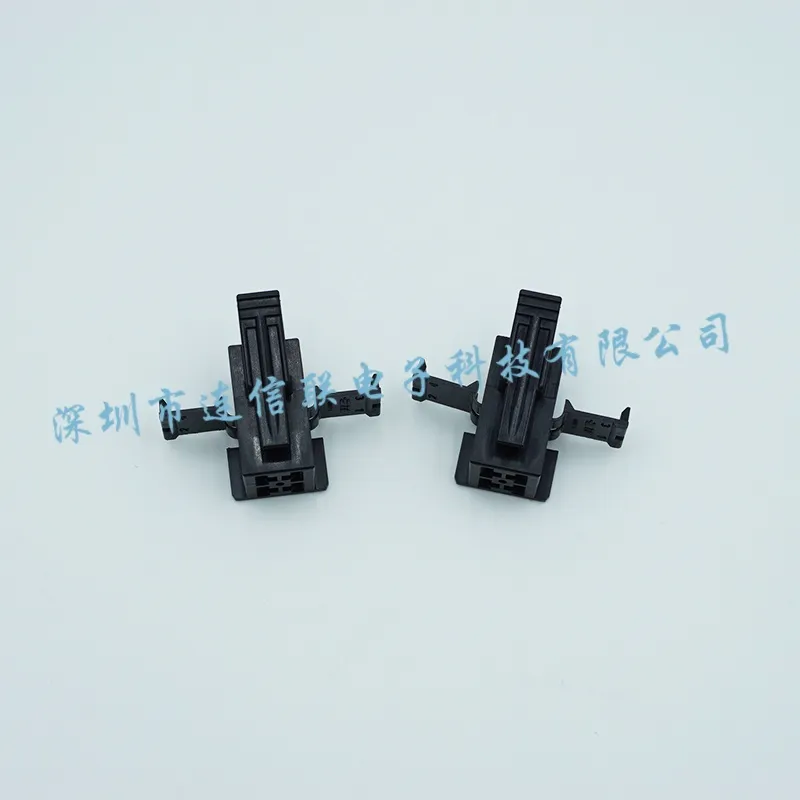

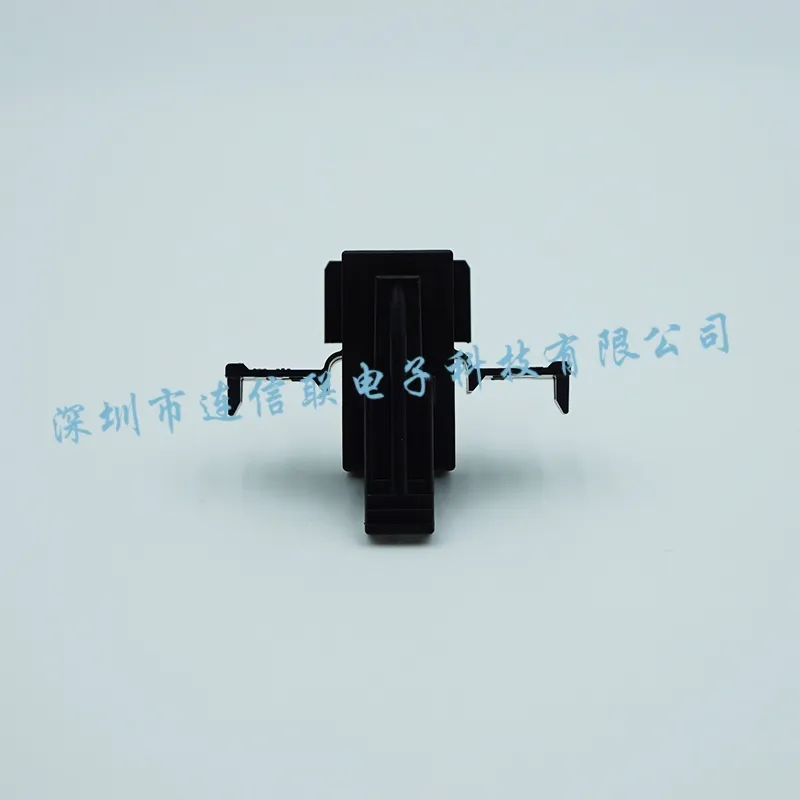

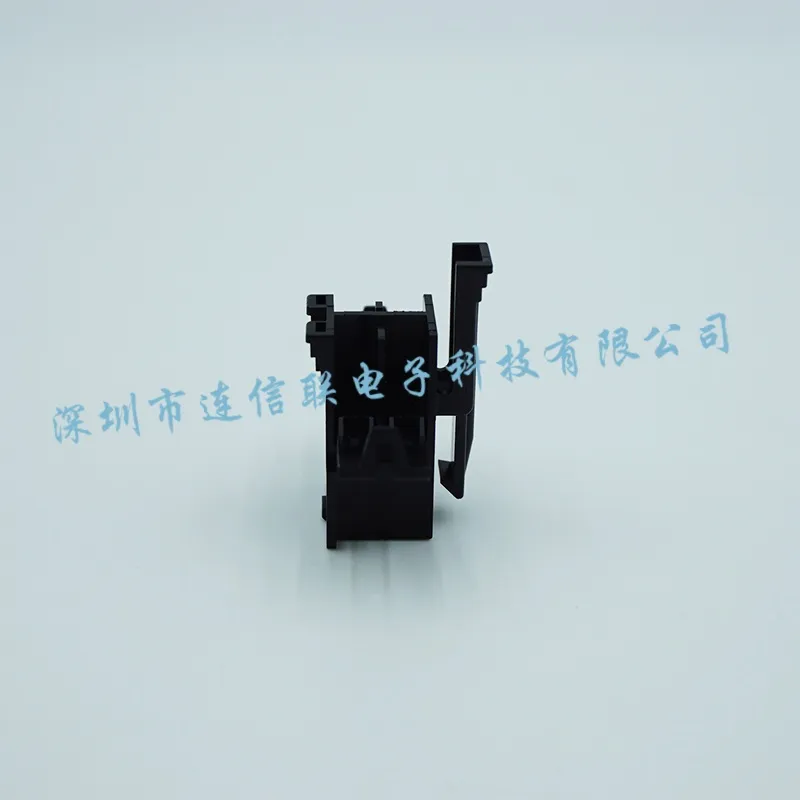

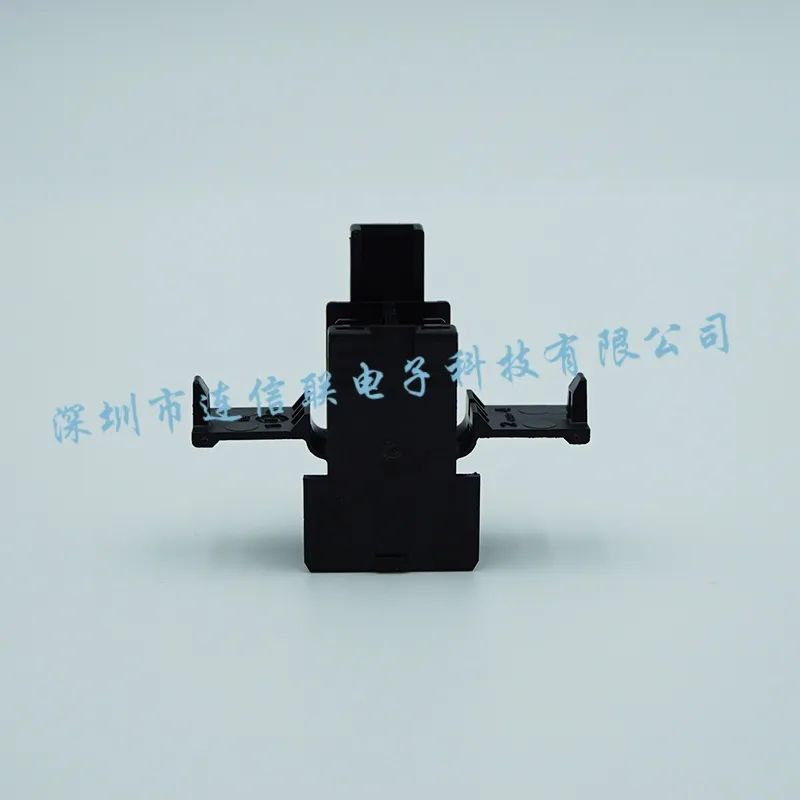

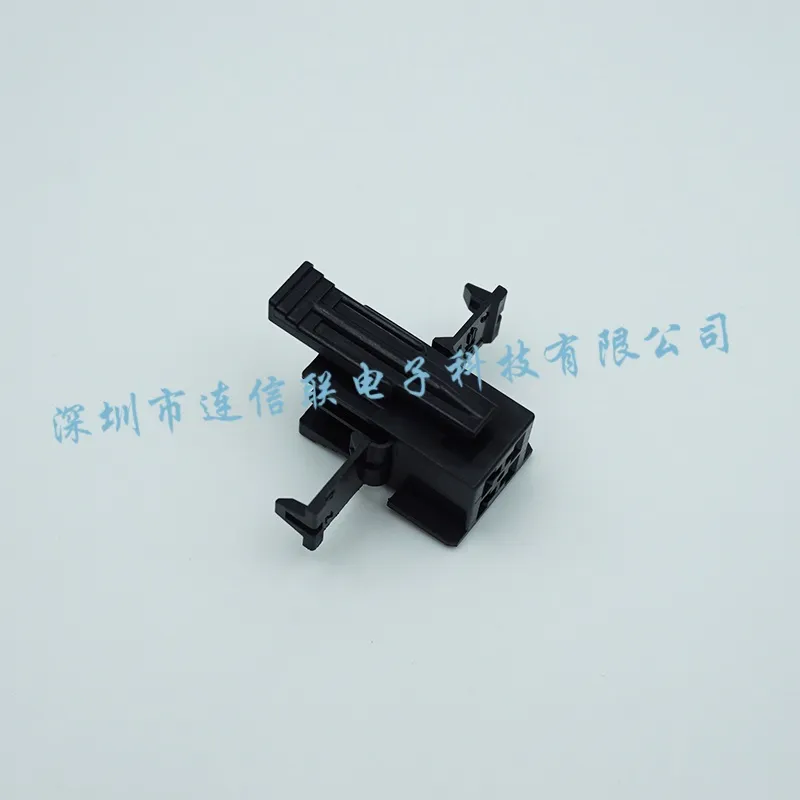

TE Connectivity 929504-1 Connector Housing
929504-1 is a TE Connectivity Automotive Housings. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
929504-1
Brand
TE Connectivity
Category
Automotive Housings
Series
Junior Power Timer
Technical specifications
| Gender | Female |
|---|---|
| Brand region | International |
| Number of rows | 2 |
| Series | Junior Power Timer |
| Number of positions | 4 |
| Standard Pack Qty | 2500 |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Number of Positions | 4 |
| Pitch | 0.197" (5.00mm) |
| Number of Rows | 2 |
| Row Spacing | 0.220" (5.60mm) |
| Mounting Type | Free Hanging (In-Line) |
| Contact Termination | Crimp |
| Fastening Type | - |
| Color | Black |
| Features | - |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Operating Temperature | - |
| Unit weight (kg) | 0.002286 |
| Nominal Voltage Architecture ( V) | 12 | 24 | 48 |
| Connector & Housing Type | Housing for Female Terminals |
| Number Of Positions | 4 |
| Sealable | No |
| Operating Temperature Range | -40 – 130 °C [ -40 – 266 °F ] |
| Product Features & Characteristics | Select All |
| Connector Shape | Rectangular |
| Mixed & Hybrid Connector | No |
| Primary Locking Feature | Integrated in Housing | Locking Lance |
| Connector System | Wire-to-Board | Wire-to-Wire |
| Connector & Contact Terminates To | Wire & Cable |
| Number Of Rows | 2 |
| Cable Exit Angle (°) | 180 |
| Primary Product Color | Black |
| Contact Type | Receptacle |
| Contact Size | 2.8mm |
| Mating Tab Width | 2.8 mm [ .11 in ] |
| Contact Current Rating ( Max) ( A) | 30 |
| Mating Alignment | With |
| Mating Alignment Type | Polarization |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
Compliance information
| RoHS status | ROHS3 Compliant |
|---|---|
| REACH status | REACH not applicable |
| Moisture sensitivity level | 1 (Unlimited) |
| ECCN | EAR99 |
| CNHTS | 8547200000 |
| TARIC | 8547200090 |
| CAHTS | 8538903900 |
| USHTS | 8538906000 |
| JPHTS | 853890000 |
| MXHTS | 8538900100 |
| BRHTS | 85389090 |
| Country of Origin | Belgium |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
