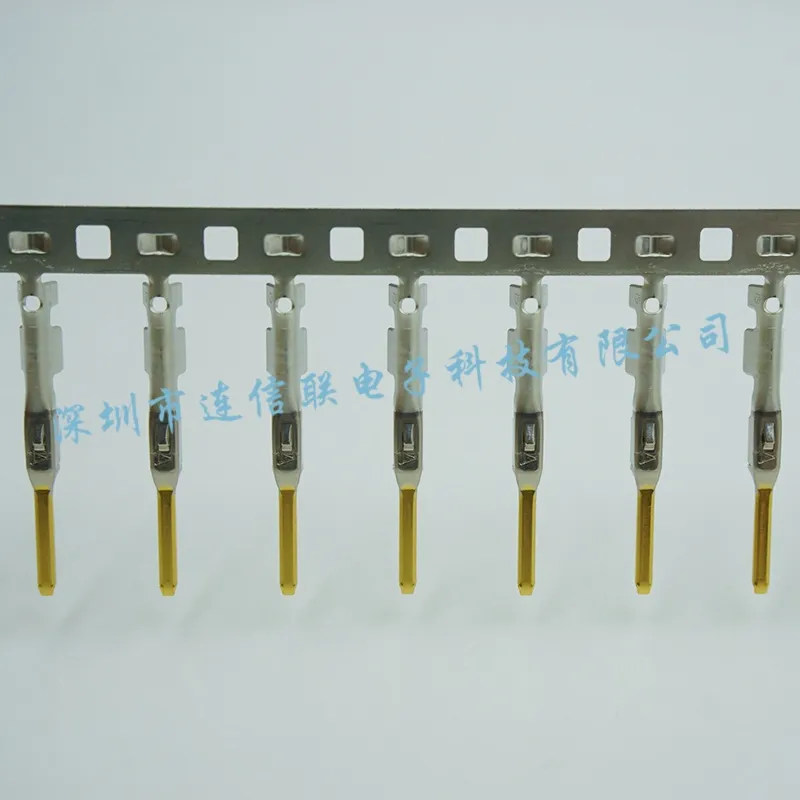

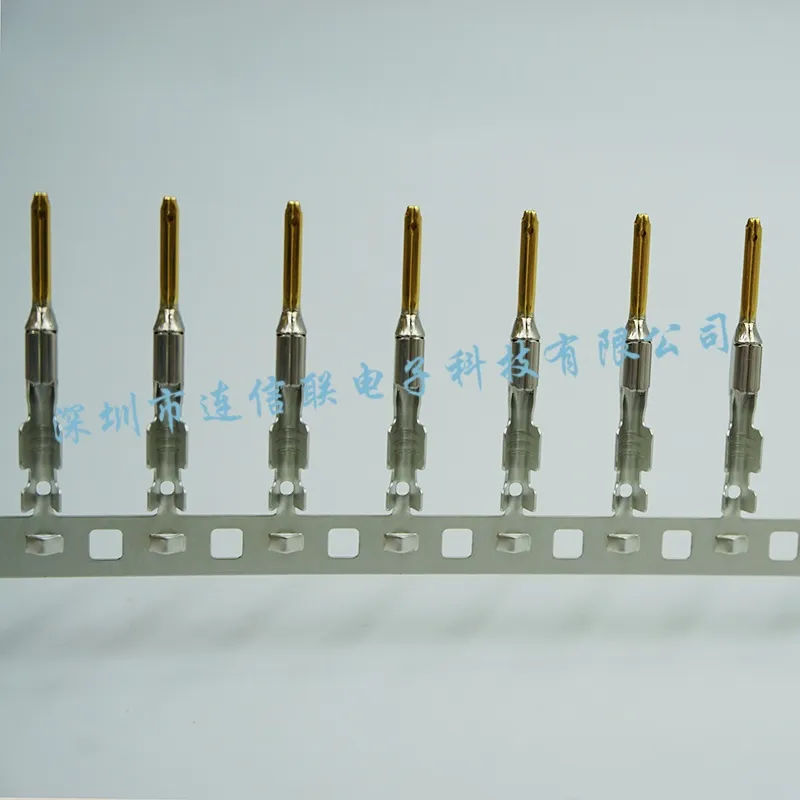

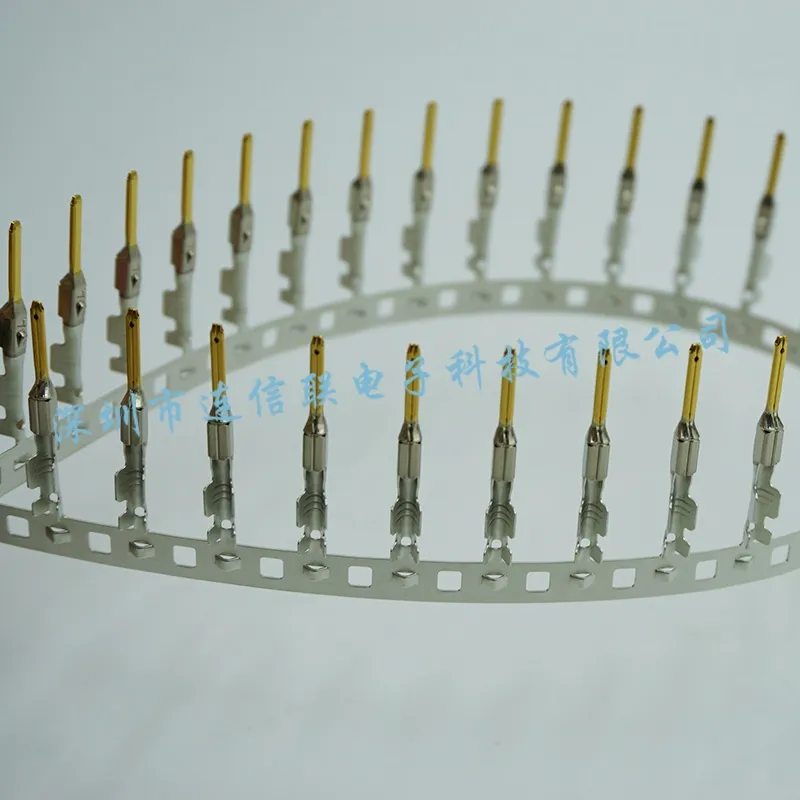

Molex 33011-0004 Connector Terminal

33011-0004 is a Molex Crimp Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.

Contact for quotation

Packaging
- Piece
- Carton

Add to wishlist

Sales and Website Terms
Price, availability, and lead time are subject to order confirmation

Hong Kong standard delivery: 17:00 cutoff, 3 business days handling + 3 business days transit, Monday–Friday, free shipping. View shipping policy

产品技术规格

应用领域	Wire-to-Board、Wire-to-Wire、Automotive
1	2.967
150000	1.667
20	2.825
37500	1.75
7500	1.8
75000	1.7
Assembly Country of Origin	Not available
batch	N
BRHTS	85369090
CAHTS	8536900090
China RoHS	Green Image per SJ/T 11365-2006
CNHTS	8538900000
Country of Diffusion	Not available
Country of Origin	United States
ECCN	EAR99
EU ELV	Compliant per 2000/53/EC
EU RoHS	Compliant per EU 2015/863
GADSL/IMDS	Compliant with Exemption 34; 33
Grip Code	18
JPHTS	8536900002
KRHTS	8536909090
Lead Free Process Capability	N/A
Low-Halogen Status	Low-Halogen per IEC 61249-2-21
Material Metal	High Performance Alloy (HPA)
Material Plating Mating	Gold
Material Plating Termination	Tin
MXHTS	85369099
Packaging Design Drawing	https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/packagingdesigndrawing/313/31302/313025040-000.pdf
Plating Min Mating	0.762µm
Plating Min Termination	2.540µm
Prop65	Compliant per California Proposition 65
REACH SVHC	Not Contained per D(2025)7771-DC (04 Feb 2026)
RoHS状态	RoHS Compliant
SAP型号	0330110004
Standard Pack Qty	7500
TARIC	8536699099
Terminal Size	1.5
Termination Interface Style	Crimp or Compression
USHTS	8536904000
Wire Insulation Diameter	2.54mm max.
Wire Size Awg	16、18、20
Wire Size Mm	0.75-1.00
一级应用	Automotive
二级应用	Power Connectors, Wire-to-Wire Connectors, Wire-to-Board Connectors, MX150 Sealed and Unsealed Connector System
交期	56 Days
产品名称	33011-0004 (MOLEX)
产品描述	MX150 Male Terminal for Mat-Sealed or Unsealed Connectors, Gold Plating, 16, 18 and 20 AWG, Left Reel Payoff
产品状态	Active
产品系列	MX150
产品规范	https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/productspecificationpdf/000/000000/PS-33012-002-001.pdf
产品链接	https://www.mouser.hk/en/ProductDetail/Molex/33011-0004?qs=eHT%2Fi514bK1j9CMKn5qJXQ%3D%3D
产地	美国/USA
公端/母端	公端
净重	0.377/g
包装方式	卷
包装类型	Reel
单位重量（kg）	0.000377
原产国	MX,US
品名	盘装端子
品牌归属地	国际
基本分类	连接器
夹具代码	18
导线绝缘直径	2.54mm max.
接口性别	Male
无铅	N/A
替代包装型号	33011-0004 (Loose Piece)、33011-0004 (Cut Strip)、33011-0004 (Mouser Reel)
替代型号	91MB-00097（JiDC(济德)）
最后更新日期	2026-07-01
最大电压	14V DC
测试报告	https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/testsummarypdf/330/33000/TS-33000-001-001.pdf
端接方法	压接
端接最薄镀层	2.540µm
线径-mm²	0.75 to 1 mm²
线规-AWG	20 to 16 AWG
终端电镀材料	Tin
触头镀层	金
说明	MX150 Male Terminal for Mat-Sealed or Unsealed Connectors, Gold Plating, 16, 18 and 20 AWG, Left Reel Payoff、Left Reel Payoff
贸泽编号	538-33011-0004
配套系列	33481 - MX150 Mat-Sealed Single Row Male Connector Assemblies、33482 - MX150 Mat-Sealed Dual Row Male Connector Assemblies
金属材料	High Performance Alloy (HPA)
销售图纸	https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/330/33011/330110004_sd.pdf
销售状态	Standard Product
镀层厚度	0.762μm
额定电流	-
首次发布日期	2007-05-16
包装	Reel
系列	33011、33011
重量	0.377/g

Brand：Molex Category：Crimp Terminals Series：MX150 Sealed and Unsealed Connector System Application：Automotive Application：Power Connections Application：Wire-to-Board Application：Wire-to-Wire
