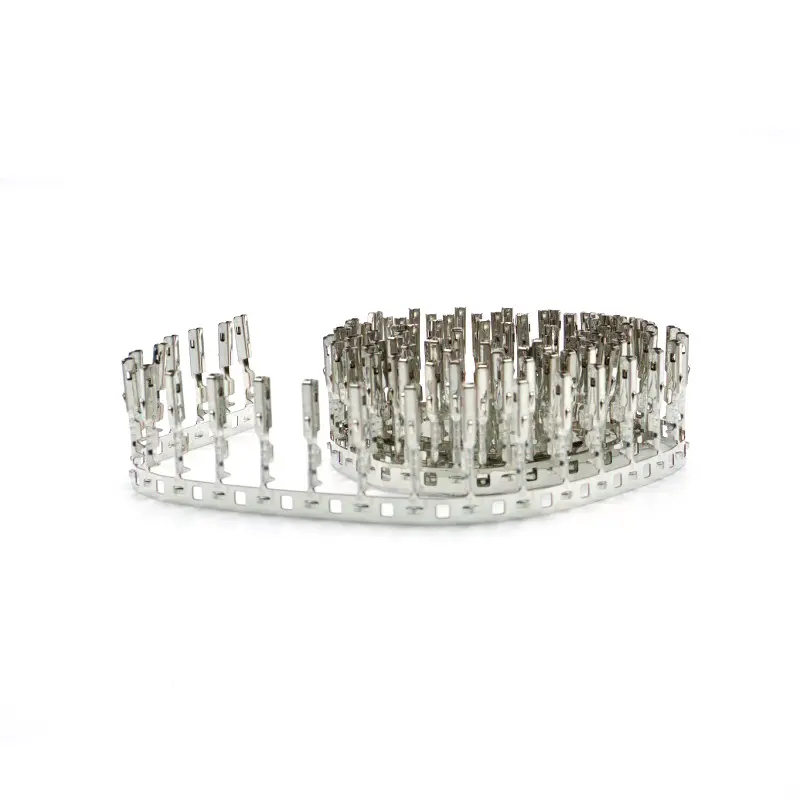

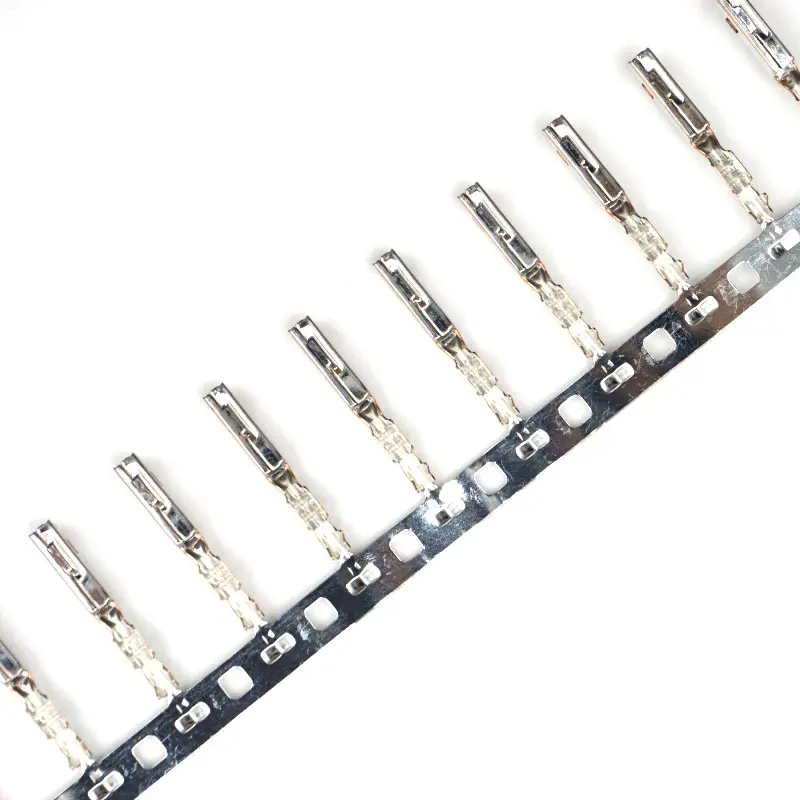

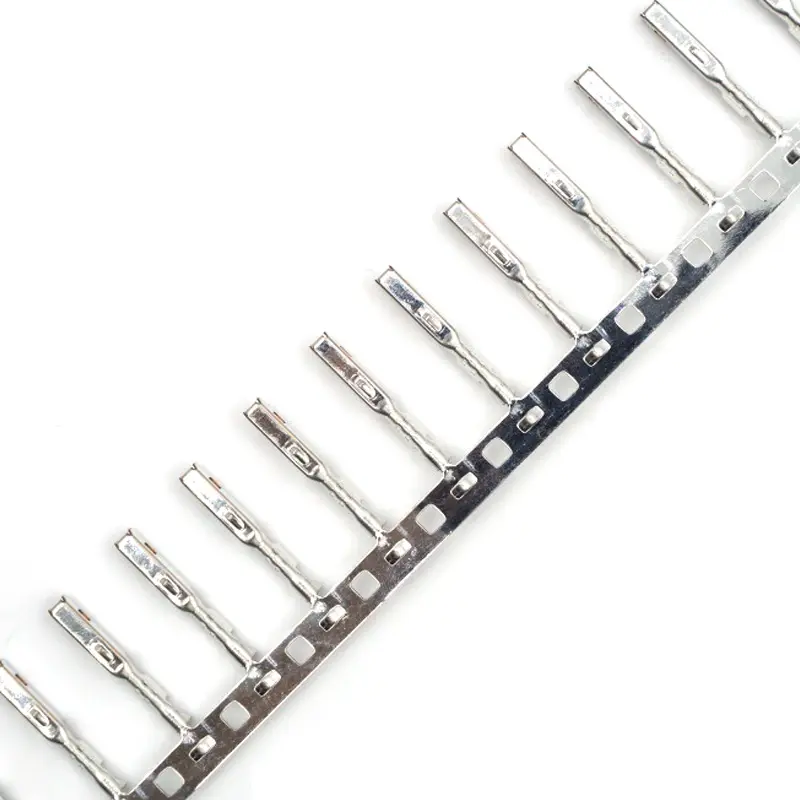

Molex 33012-2004 Connector Terminal
33012-2004 is a Molex Crimp Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
33012-2004
Brand
Molex
Category
Crimp Terminals
Technical specifications
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 7000 |
| Unit weight (kg) | 0.000391 |
| Interface gender | Female |
| Grip Code | M3 |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net weight | 0.391/g |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Terminal Size | 1.5 |
| Wire Insulation Diameter | 1.70mm max. |
| Wire Size Awg | N/A |
| Wire Size Mm | 0.35-0.50 |
Ordering and packaging
| Minimum order quantity | 7000 |
|---|---|
| Order multiple | 7000 |
| Factory stock | 0 |
| Packaging type | Reel |
Compliance information
| CNHTS | 8538900000 |
|---|---|
| TARIC | 8536699099 |
| CAHTS | 8536900020 |
| USHTS | 8536904000 |
| JPHTS | 8536900002 |
| KRHTS | 8536909010 |
| BRHTS | 85369090 |
| ECCN | EAR99 |
| Country of Origin | United States |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 34; 33 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
Mating and related products
| Use-with series | 33472 - MX150 Mat-Sealed Dual Row Female Connector Assemblies、33471 - MX150 Mat-Sealed Single Row Female Connector Assemblies、34985 - MX150 Hybrid Mat-Sealed Female Connector Assemblies、300361 - MX150 Mid-Voltage Mat-Sealed Female Connector Assemblies、300363 - MX150 Mid-Voltage Mat-Sealed Female Connector Assemblies、303367 |
|---|
Additional information
| Product status | Active |
|---|---|
| Country of origin | CN,US |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
