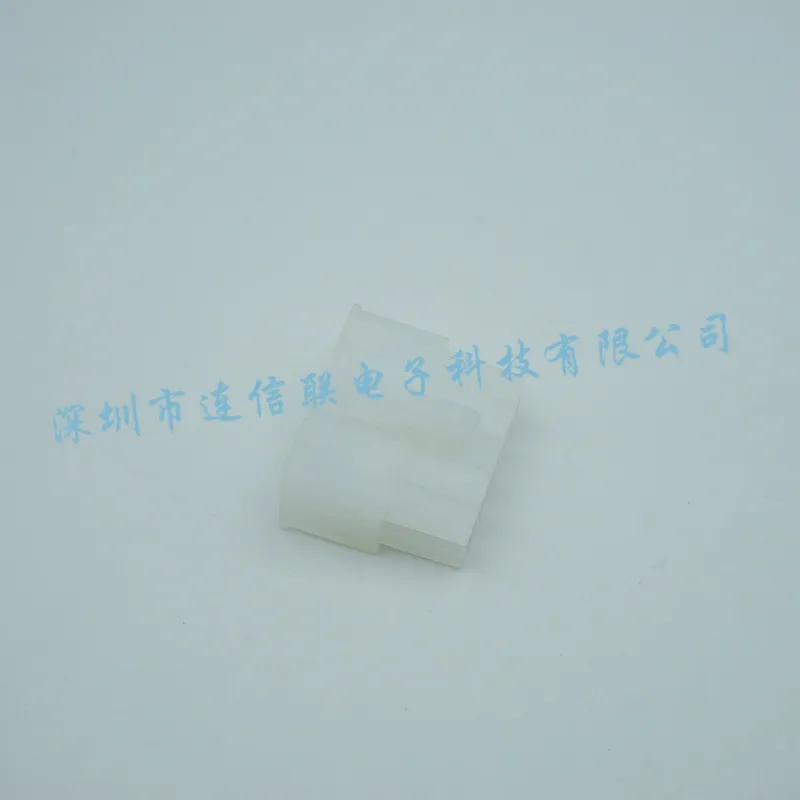

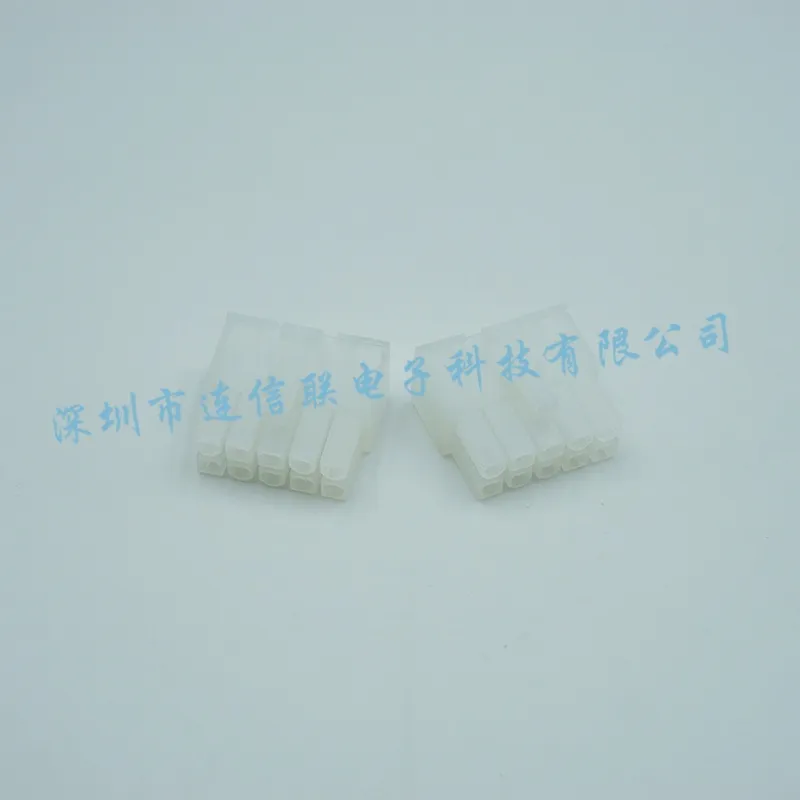

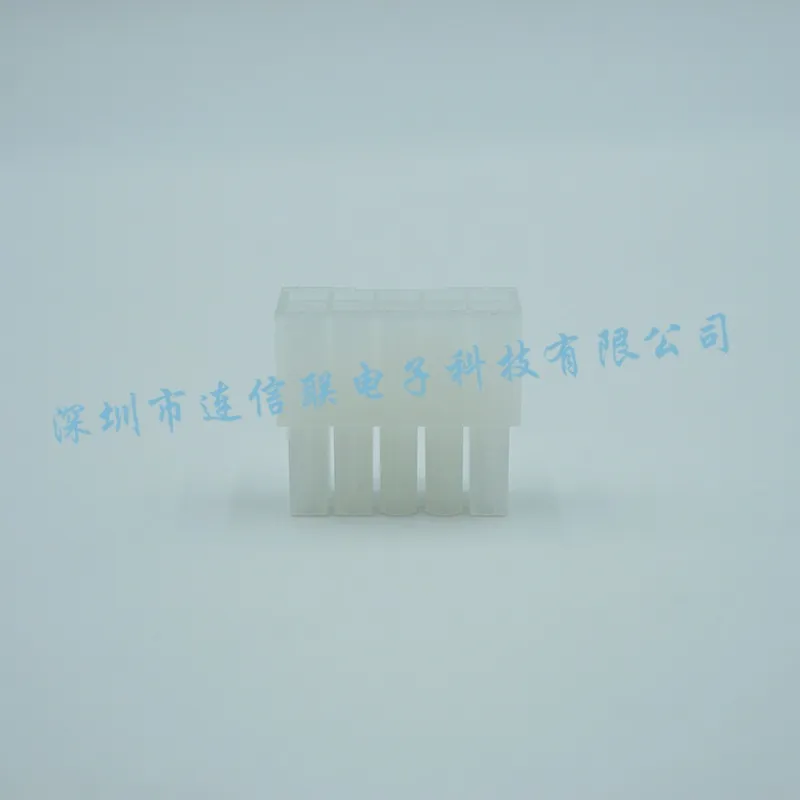

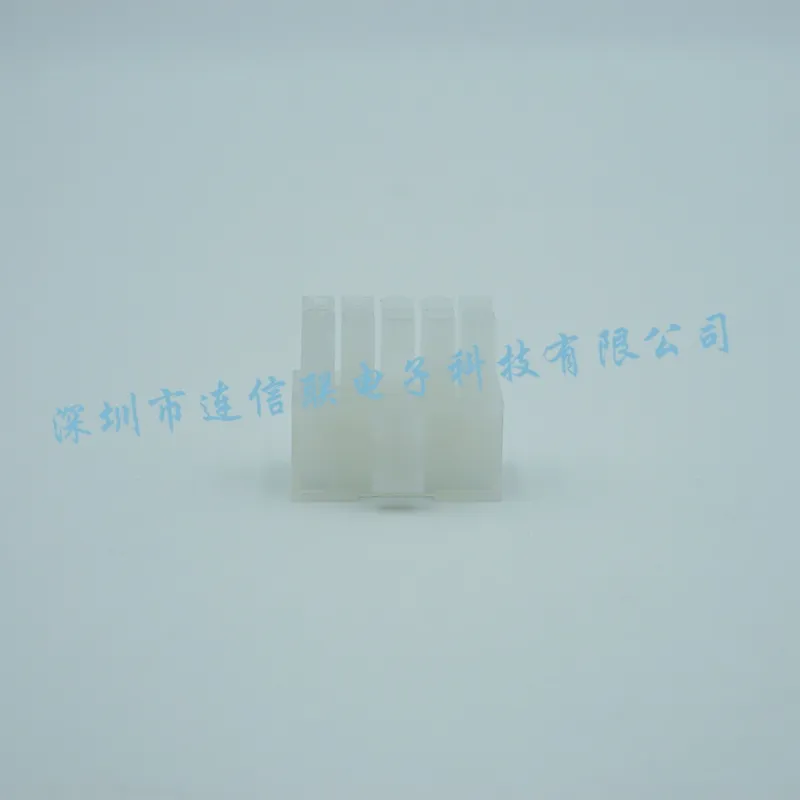

Molex 39-01-2100 Connector Housing

39-01-2100 is a Molex Connector Housings. Review the verified specifications, packaging, compliance and availability information before ordering.

Contact for quotation

Packaging
- Piece
- Carton

Add to wishlist

Sales and Website Terms
Price, availability, and lead time are subject to order confirmation

Hong Kong standard delivery: 17:00 cutoff, 3 business days handling + 3 business days transit, Monday–Friday, free shipping. View shipping policy

产品技术规格

应用领域	Wire-to-Board、Wire-to-Wire
1	0.759
12500	0.43
20	0.723
2500	0.442
25000	0.418
3D CAD图纸	https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/3dcadmodelspdf/390/3901/039012100.pdf
3D CAD模型	https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/3dcadmodels/390/3901/039012100_stp.zip
50000	0.41
Assembly Country of Origin	United States
batch	ZK
BRHTS	85389090
CAHTS	8538903900
China RoHS	Green Image per SJ/T 11365-2006
Circuits Maximum	10.0
CNHTS	8547200000
Color Resin	Natural
Country of Diffusion	Not available
Country of Origin	United States
CSA	LR19980
ECCN	EAR99
EU ELV	Compliant per 2000/53/EC
EU RoHS	Compliant per EU 2015/863
Flammability Rating	UL 94 V-2
GADSL/IMDS	Not Relevant
Gender	Receptacle
Glow Wire Capable	No
Housing Color	Natural
Housing Gender	Female
Housing Material	Nylon
JPHTS	853890000
Keying To Mating Part	No
Lead Free Process Capability	N/A
Lock To Mating Part	Yes
Low-Halogen Status	Low-Halogen per IEC 61249-2-21
Material Resin	Nylon
Net Weight	1.938/g
Number Of Rows	2.0
Packaging Design Drawing	https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/packagingdesigndrawing/555/5557/PK-5557-002-000.pdf
Packaging Type	Bag
Panel Mount	No
Part # Aliases	39012100 5557-10R 0039012100
Pitch Mating Interface	4.20mm
Pitch Termination Interface	4.20mm
Polarized To Mating Part	Yes
Product	Wire Housings
Prop65	Compliant per California Proposition 65
REACH SVHC	Not Contained per D(2025)7771-DC (04 Feb 2026)
RoHS状态	RoHS Compliant
Row Spacing	4.2 mm (0.165 in)
SAP型号	0039012100
Stackable	No
Standard Pack Qty	2500
TARIC	8547200090
Temperature Range Operating	-40° to +105°C
Tradename	Mini-Fit Jr.
Type	Receptacle Housing
UL	E29179
USHTS	8538906000
一级应用	Appliances
二级应用	Wire-to-Board Connectors, Power Connectors, Wire-to-Wire Connectors, FiT Family Power Connectors, Mini-Fit Family Power Connectors
交期	133 Days
产品名称	39-01-2100 (MOLEX)
产品描述	Mini-Fit Jr. Receptacle Housing, Dual Row, 10 Circuits, UL 94V-2, Natural
产品状态	Active
产品系列	Mini-Fit Jr.
产品链接	https://www.mouser.hk/en/ProductDetail/Molex/39-01-2100?qs=qjii0NTOo%252B6oqv6oRs1frA%3D%3D
产品间距	4.20mm
产地	中国/CHN
公端/母端	母端
净重	1.938/g
包装方式	袋
包装类型	Bag
单位重量（kg）	0.002128
原产国	BR,CN,HK,IN,IT,JP,KR,MX,US
可堆叠	No
可堆叠的	No
品名	塑壳
品牌归属地	国际
基本分类	连接器
工作温度范围	-40° to +105°C
年份批次	202607
排数	2
接口性别	Receptacle
断开	No
无铅	N/A
替代型号	961-1017-091（JiDC(济德)）、C4201HF-2x5P（CJT）、9357HM-2*06I-N2（SIWEB）
最后更新日期	2026-10-09
最大回路数	10
有极性的插配件	Yes
树脂材料	Nylon
树脂颜色	Natural
相关系列	42404, 42440, 43810, 44068, 44281, 5559, 5566, 5569, 87427
符合灼热丝规范	No
组件类型	Receptacle
耐灼热丝	No
说明	Mini-Fit Jr. Receptacle Housing, Dual Row, 10 Circuits, UL 94V-2, Natural、Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current derating information.
贸泽编号	538-39-01-2100
配套系列	5556 - Mini-Fit Female Crimp Terminals、45750 - Mini-Fit Plus Female Crimp Terminals、204723 - Mini-Fit Jr. Hermaphroditic Backshells、44476 - Mini-Fit HCS Female Crimp Terminals
配接产品	1727620010 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 10 Circuits、1727670010 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 10 Circuits, Panel Mount、1727670110 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 10 Circuits, Panel Mount、1727671010 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-0, Low-Halogen, 10 Circuits, Old Panel Mount Style、1727671110 - Mini-Fit TPA2 Plug Housing, 4.20mm Pitch, Dual Row, UL 94V-2, Glow-Wire Capable, 10 Circuits, Old Panel Mount Style
配接极性	Yes
配接系列	42404 - Mini-Fit BMI Right-Angle Dual Row Headers、42440 - Mini-Fit BMI Vertical Dual Row Headers、43810 - Mini-Fit BMI Right-Angle Dual Row Headers、44068 - Mini-Fit BMI Vertical Dual Row Headers、44281 - Mini-Fit Jr. Dual Row Test Plugs、5559 - Mini-Fit Jr. Plug Housings、5566 - Mini-Fit Jr. Vertical Headers、5569 - Mini-Fit Jr. Right-Angle Headers、87427 - Mini-Fit Jr. Dual Row Headers
配接锁定	Yes
配接间距	4.20mm
配接防错键	No
针位数	10
销售图纸	https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/555/5557/039012100_sd.pdf
销售状态	Standard Product
间距 - 终端界面	4.20mm
阻燃等级	UL94 V-2
面板安装	No
面板安装式	No
颜色	Natural
首次发布日期	2007-05-16
高清产品图片	https://www.molex.com/content/dam/molex/molex-dot-com/products/manual/en-us/images/555/5557/0039012100_hires.jpg
最低工作温度	- 40 C
安装风格	Cable Mount / Free Hanging
包装	Bulk
间距	4.2 mm (0.165 in)
芯数	10 Position
额定电流	13 A
额定电压	600 V
系列	5557
端接方式	Crimp
最高工作温度	+ 105 C
重量	2.128/g

Brand：Molex Category：Connector Housings Series：Mini-Fit Family Power Connectors Application：Appliances Application：Power Connections Application：Wire-to-Board Application：Wire-to-Wire
