产品技术规格
| 应用领域 | Wire-to-Board、Wire-to-Wire |
|---|---|
| 1 | 1.626 |
| 1500 | 1.02 |
| 15000 | 0.963 |
| 20 | 1.549 |
| 30000 | 0.944 |
| 3D CAD图纸 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/3dcadmodelspdf/436/43645/436451000.pdf |
| 3D CAD模型 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/3dcadmodels/436/43645/436451000_stp.zip |
| 7500 | 0.991 |
| Assembly Country of Origin | Not available |
| batch | ZK |
| BRHTS | 85366990 |
| CAHTS | 8536690020 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| CNHTS | 8547200000 |
| Country of Diffusion | Not available |
| Country of Origin | China |
| CSA | LR19980 |
| ECCN | EAR99 |
| EU ELV | Compliant per 2000/53/EC |
| EU RoHS | Compliant per EU 2015/863 |
| Flammability | 94V-0 |
| GADSL/IMDS | Not Relevant |
| JPHTS | 853669000 |
| KRHTS | 8536691000 |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| MXHTS | 8536699999 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| RoHS状态 | RoHS Compliant |
| SAP型号 | 0436451000 |
| Standard Pack Qty | 1500 |
| TARIC | 8547200090 |
| UL | E29179 |
| USHTS | 8538906000 |
| 一级应用 | Agricultural Machinery, Appliances |
| 二级应用 | Wire-to-Board Connectors, Power Connectors, Micro-Fit Connector System, Wire-to-Wire Connectors, Board-to-Board Connectors, FiT Family Power Connectors |
| 交期 | 105 Days |
| 产品名称 | 43645-1000 (MOLEX) |
| 产品描述 | Micro-Fit 3.0 Receptacle Housing, Single Row, 10 Circuits, UL 94V-0, Black |
| 产品状态 | Active |
| 产品系列 | Micro-Fit 3.0 |
| 产品链接 | https://www.mouser.hk/en/ProductDetail/Molex/43645-1000?qs=zhePCb1yaFMaEVt4UF9d4w%3D%3D |
| 产品间距 | 3.00mm |
| 产地 | 中国/CHN |
| 公端/母端 | 母端 |
| 净重 | 1.308/g |
| 包装方式 | 袋 |
| 包装类型 | Bag |
| 包装规范 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/packagingspecificationpdf/436/43645/PK-43645-001-001.pdf |
| 单位重量（kg） | 0.001203 |
| 原产国 | CN,HK,JP,US |
| 可堆叠 | No |
| 可堆叠的 | No |
| 品名 | 塑壳 |
| 品牌归属地 | 国际 |
| 基本分类 | 连接器 |
| 工作温度范围 | -40° to +105°C |
| 应用规范 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/applicationspecificationspdf/430/43025/430250000-AS-000.pdf |
| 排数 | 1 |
| 接口性别 | Receptacle |
| 插接极性 | None |
| 替代型号 | 961-1012-065（JiDC(济德)）、C3030HF-10P（CJT）、3025HM-10-N0（SIWEB） |
| 最后更新日期 | 2026-08-07 |
| 最大回路数 | 10 |
| 有极性的插配件 | Yes |
| 树脂材料 | Polyester |
| 树脂颜色 | Black |
| 相关系列 | 43640, 200875, 43650, 214752, 214753 |
| 符合灼热丝规范 | No |
| 组件类型 | Receptacle |
| 耐灼热丝 | No |
| 说明 | Micro-Fit 3.0 Receptacle Housing, Single Row, 10 Circuits, UL 94V-0, Black |
| 贸泽编号 | 538-43645-1000 |
| 配套系列 | 43030 - Micro-Fit 3.0 Female Crimp Terminals、46235 - Micro-Fit Reduced Mating Force Female Crimp Terminals、214760 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female、214761 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Pigtail |
| 配接极性 | Yes |
| 配接系列 | 43640 - Micro-Fit 3.0 Single Row Plug Housings、200875 - Micro-Fit TPA Single Row Plug Housings、43650 - Micro-Fit 3.0 Single Row Headers、214752 - Micro-Fit 3.0 Male-to-Micro-Fit 3.0 Male Off-the-Shelf (OTS) Cable Assemblies、214753 - Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assemblies |
| 配接锁定 | Yes |
| 配接间距 | 3.00mm |
| 配接防错键 | No |
| 针位数 | 10 |
| 销售图纸 | https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/436/43645/436451000_sd.pdf |
| 销售状态 | Standard Product |
| 锁定插接部位 | Yes |
| 阻燃等级 | UL94 V-0 |
| 面板安装 | No |
| 面板安装式 | No |
| 颜色 | Black |
| 首次发布日期 | 2007-05-16 |
| 高清产品图片 | https://www.molex.com/content/dam/molex/molex-dot-com/products/manual/en-us/images/436/43645/0436451000_hires.jpg |
| 包装 | Bulk |
| 系列 | 43645、43645 |
| 重量 | 1.203/g |
Related product information
Brand：Molex
Category：Connector Housings
Series：Micro-Fit Connector System
Application：Agricultural Machinery
Application：Appliances
Application：Power Connections
Application：Wire-to-Board
Application：Wire-to-Wire
Application：Board-to-Board
Similar products for discovery (not a compatibility or replacement claim)
Verified inquiry information
- Packaging
- Bag
- Packaging
- Bulk
- Minimum order quantity
- 1
- Packaging type
- Bag
Manufacturer and authorized source records
Product information

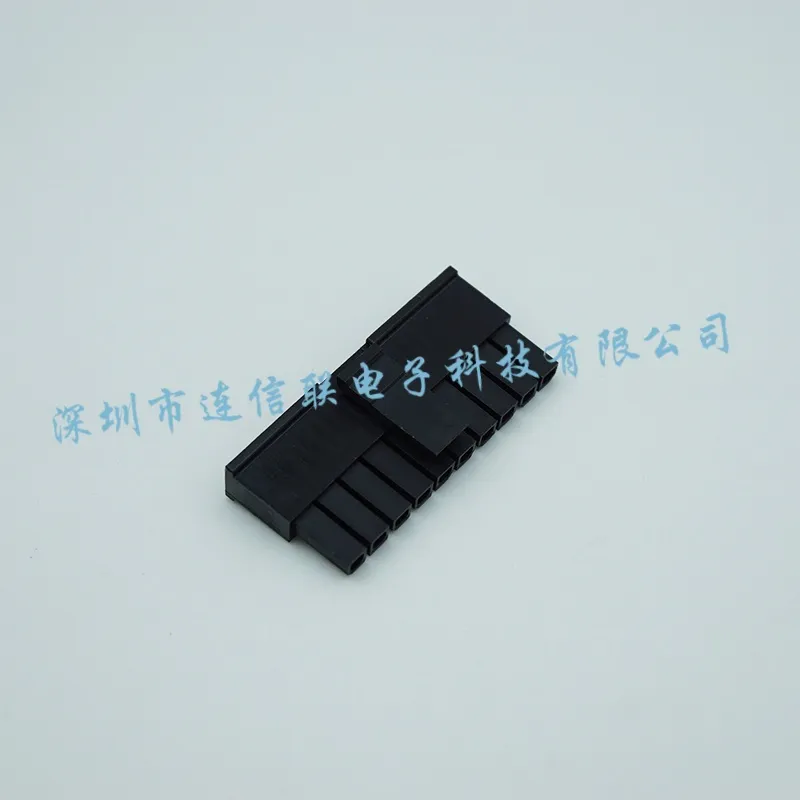

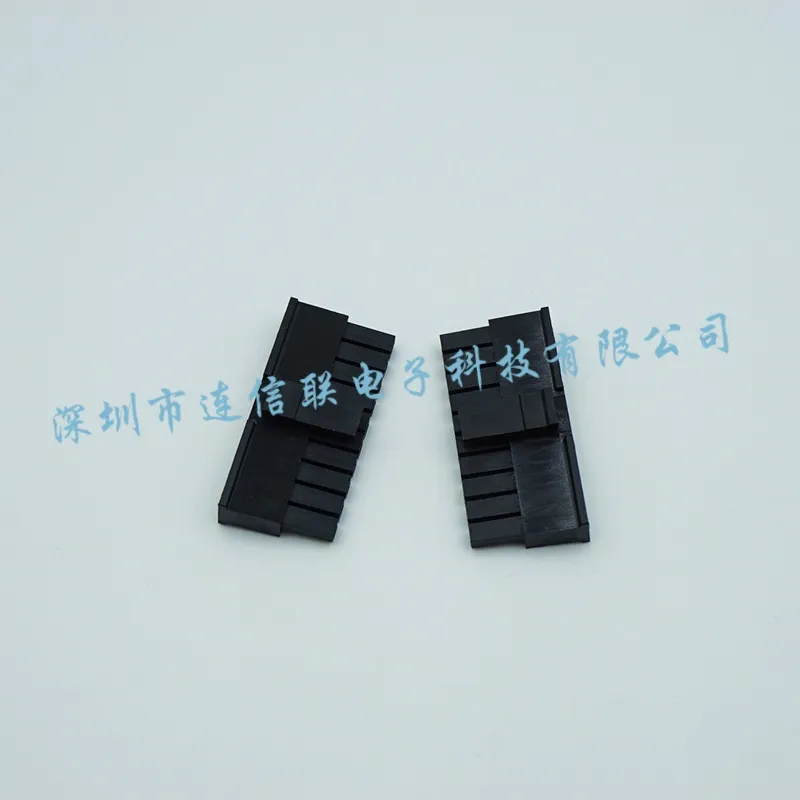

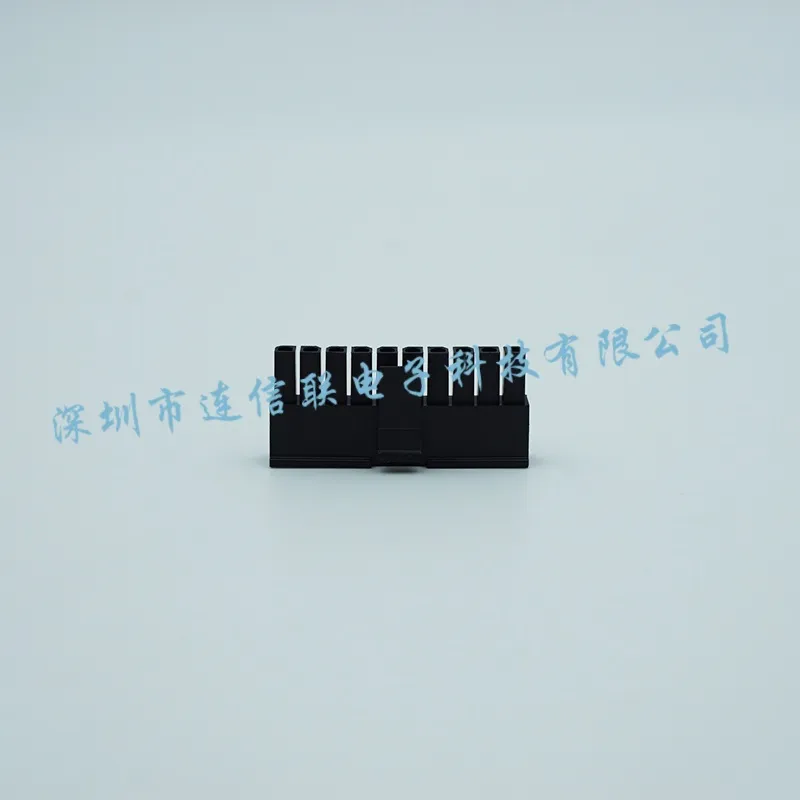

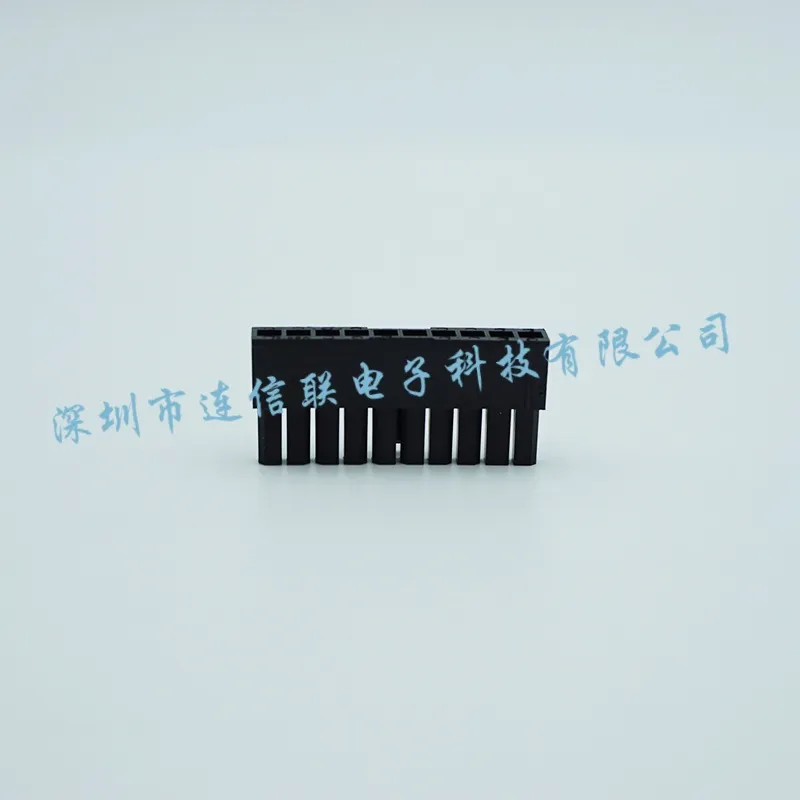

Molex 43645-1000 Connector Housing
43645-1000 is a Molex Connector Housings. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
43645-1000
Brand
Molex
Category
Connector Housings
Series
Micro-Fit Connector System
Applications
Agricultural Machinery, Appliances, Power Connections, Wire-to-Board, Wire-to-Wire, Board-to-Board
Technical specifications
| Product status | Active |
|---|---|
| Pitch | 3.00mm |
| Gender | Female |
| Packaging | Bag |
| Brand region | International |
| Number of rows | 1 |
| Series | 43645、43645 |
| Number of positions | 10 |
| Primary applications | Agricultural Machinery, Appliances |
| Secondary applications | Wire-to-Board Connectors, Power Connectors, Micro-Fit Connector System, Wire-to-Wire Connectors, Board-to-Board Connectors, FiT Family Power Connectors |
| Product family | Micro-Fit 3.0 |
| Product series | Micro-Fit Connector System |
| Operating temperature | -40° to +105°C |
| Applications | Power, Wire-to-Board, Wire-to-Wire |
| Mating polarization | None |
| Resin material | Polyester |
| Resin color | Black |
| Related series | 43640, 200875, 43650, 214752, 214753 |
| Glow-wire capable | No |
| Category | Connector Housings |
| Description | Micro-Fit 3.0 Receptacle Housing, Single Row, 10 Circuits, UL 94V-0, Black |
| Weight | 1.203/g |
| Panel mount | No |
| Packaging | Bulk |
| Standard Pack Qty | 1500 |
| Unit weight (kg) | 0.001203 |
| Maximum circuits | 10 |
| Color | Black |
| Flammability | 94V-0 |
| Interface gender | Receptacle |
| Glow-wire capable | No |
| Mating keying | No |
| Mating lock | Yes |
| Net weight | 1.308/g |
| Panel mount | No |
| Mating pitch | 3.00mm |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
| Packaging type | Bag |
Compliance information
| CNHTS | 8547200000 |
|---|---|
| TARIC | 8547200090 |
| CAHTS | 8536690020 |
| USHTS | 8538906000 |
| JPHTS | 853669000 |
| KRHTS | 8536691000 |
| MXHTS | 8536699999 |
| BRHTS | 85366990 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Not Relevant |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
| CSA | LR19980 |
| UL | E29179 |
Mating and related products
| Mating series | 43640 - Micro-Fit 3.0 Single Row Plug Housings、200875 - Micro-Fit TPA Single Row Plug Housings、43650 - Micro-Fit 3.0 Single Row Headers、214752 - Micro-Fit 3.0 Male-to-Micro-Fit 3.0 Male Off-the-Shelf (OTS) Cable Assemblies、214753 - Micro-Fit 3.0 Male-to-Pigtail Off-the-Shelf (OTS) Cable Assemblies |
|---|---|
| Use-with series | 43030 - Micro-Fit 3.0 Female Crimp Terminals、46235 - Micro-Fit Reduced Mating Force Female Crimp Terminals、214760 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Micro-Fit 3.0 Female、214761 - Pre-Crimped Lead Micro-Fit 3.0 Female-to-Pigtail |
Additional information
| Country of origin | CN,HK,JP,US |
|---|
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
