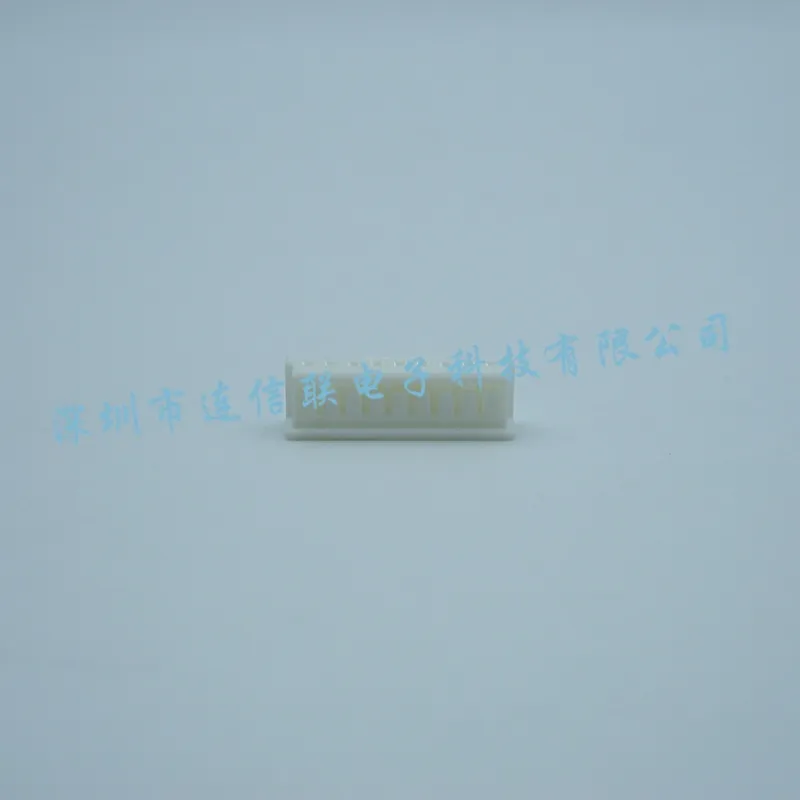

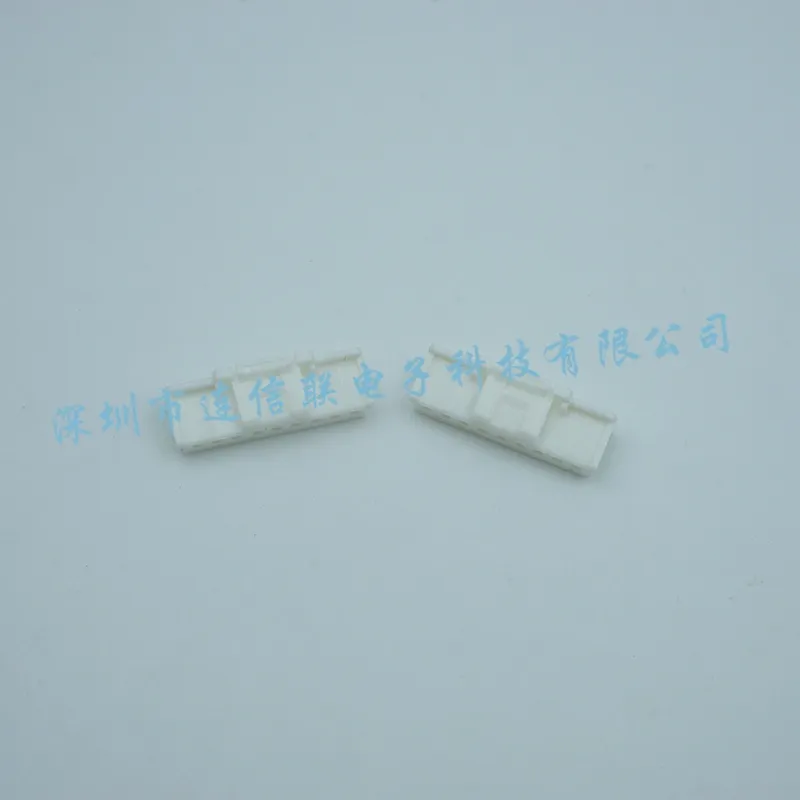

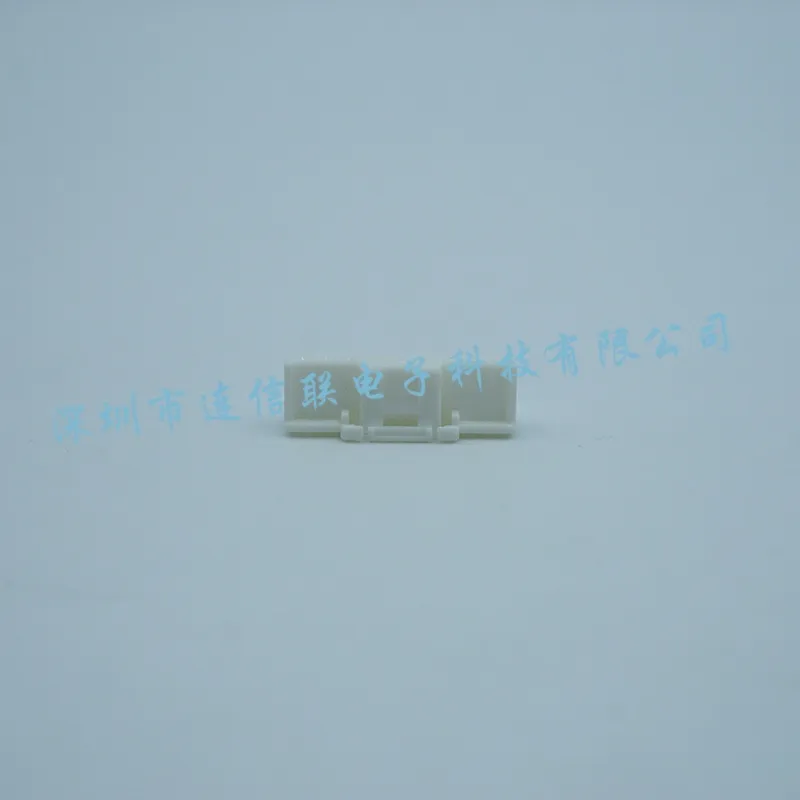

Molex 502351-0900 Connector Housing

502351-0900 is a Molex Connector Housings. Review the verified specifications, packaging, compliance and availability information before ordering.

¥ 0.90

Packaging
- Piece
- Carton
- Pack

Add to cart

Add to wishlist

Sales and Website Terms
Price, availability, and lead time are subject to order confirmation

Hong Kong standard delivery: 17:00 cutoff, 3 business days handling + 3 business days transit, Monday–Friday, free shipping. View shipping policy

产品技术规格

应用领域	Automotive、Wire-to-Board
1	0.666
10000	0.405
20	0.634
2500	0.425
3D CAD图纸	https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/3dcadmodelspdf/502/502351/5023510900.pdf
3D CAD模型	https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/3dcadmodels/502/502351/5023510900_stp.zip
500	0.437
5000	0.413
APPLICABLE TERMINAL	50212, 50372, 56161, 560085 SERIES
batch	ZK
Body/casing type	RECEPTACLE
Body colour	natural
body length	0.791 inch
Body material	PBT, polyester
body width	0.244 inch
China RoHS	Green Image per SJ/T 11365-2006
Circuits Maximum	9.0
Color Resin	Natural
Connector family	data
Contact point gender	FEMALE
Contact resistance	10 mΩ
Contacts pitch	2mm
ECCN code	EAR99
Electrical mounting	crimped
EU ELV	Compliant per 2000/53/EC
EU RoHS	Compliant per EU 2015/863
Factory Lead Time	14 weeks
GADSL/IMDS	Compliant
Gender	Receptacle
Glow Wire Capable	No
Installation type	CABLE
Insulation resistance	1000000000 Ω
Insulator material	POLYBUTYLENE TEREPHTHALATE
Keying To Mating Part	Yes
Kind of connector	female
Locking system	latch
Lock To Mating Part	Yes
Low-Halogen Status	Not Low-Halogen per IEC 61249-2-21
Material Resin	Polyester Alloy
MATES WITH	502352, 560020 SERIES
Net Weight	0.342/g
Number of pins	9
Number of rows loaded	1
Packaging Type	Bag
Panel Mount	No
Pitch Mating Interface	2.00mm
Pitch - Termination Interface	2.00mm
Plug contact pitch	0.079 inch
Polarized to Mating Part	Yes
Prop65	Compliant per California Proposition 65
REACH SVHC	Not Contained per D(2025)7771-DC (04 Feb 2026)
SAP型号	5023510900
Sealed	Unsealed
Spatial orientation	straight
Stackable	No
subject depth	0.256 inch
Temperature Range - Operating	-40° to +105°C
Terminal Size	0.635
Termination type	CRIMP
Total number of contacts	9
Type of connector	wire-board
一级应用	Telecommunications / Networking,Connected Home,Commercial Vehicle
主体颜色	天然
二级应用	DuraClik Connector System, Wire-to-Board Connectors
产品名称	502351-0900 (MOLEX)
产品描述	DuraClik Wire-to-Board Receptacle Housing, Single Row, 9 Circuits, Natural
产品系列	DuraClik
产品间距	2.00mm
产地	中国/CHN
公端/母端	母端
净重	0.342/g
包装方式	袋
包装类型	Bag
包装规范	https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/packagingspecificationpdf/000/000000/PK-502351-001-001.pdf
原产国	CN
可堆叠	No
品名	塑壳
品牌归属地	国际
基本分类	连接器
工作温度范围	-40° to +105°C
年份批次	202401
引脚数	9
排数	1
接口性别	Receptacle
插接极性	Yes
替代型号	961-0911-076（JiDC(济德)）、A2010HC-9P（CJT）
最后更新日期	2026-08-07
最大回路数	9
有极性的插配件	Yes
材质	PBT UL94V-0
树脂材料	Polyester Alloy
树脂颜色	Natural
电气安装方式	压接
相关系列	502352, 560020
空间方向	直
符合灼热丝规范	No
组件类型	Receptacle
耐灼热丝	No
说明	DuraClik Wire-to-Board Receptacle Housing, Single Row, 9 Circuits, Natural、Molex part has an inner-locking system versus an outer-locking system. Molex part with tail protection feature.
配套产品	0797581008 - Pre-Crimped Lead DuraClik Female-to-DuraClik Female, Tin (Sn) Plating, 150.00mm Length, 26 AWG, Black、0797581009 - Pre-Crimped Lead DuraClik Female-to-DuraClik Female, Tin (Sn) Plating, 300.00mm Length, 26 AWG, Black
配套端子	560085-0101
配套系列	560085 - DuraClik Female Crimp Terminals、50212 - Micro-Latch Female Crimp Terminals、56161 - DuraClik Female Terminals
配接极性	Yes
配接系列	502352 - DuraClik Right-Angle Single Row Headers、560020 - DuraClik Vertical Single Row Headers
配接锁定	Yes
配接间距	2.00mm
配接防错键	Yes
针位数	9
销售图纸	https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/502/502351/5023510900_sd.pdf
销售状态	Standard Product
锁定插接部位	Yes
锁定系统	锁定
面板安装	No
面板安装式	No
颜色	Natural
额定电流	3A
首次发布日期	2015-05-13
高清产品图片	https://www.molex.com/content/dam/molex/molex-dot-com/products/manual/en-us/images/502/502351/5023510900_hires.jpg
最低工作温度	-40 °C
额定电流	3A
最高工作温度	105 °C
重量	0.358/g

Brand：Molex Category：Connector Housings Series：DuraClik Application：Telecommunications / Networking Application：Connected Home Application：Commercial Vehicle Application：Automotive Application：Wire-to-Board Application：Signal Connections
