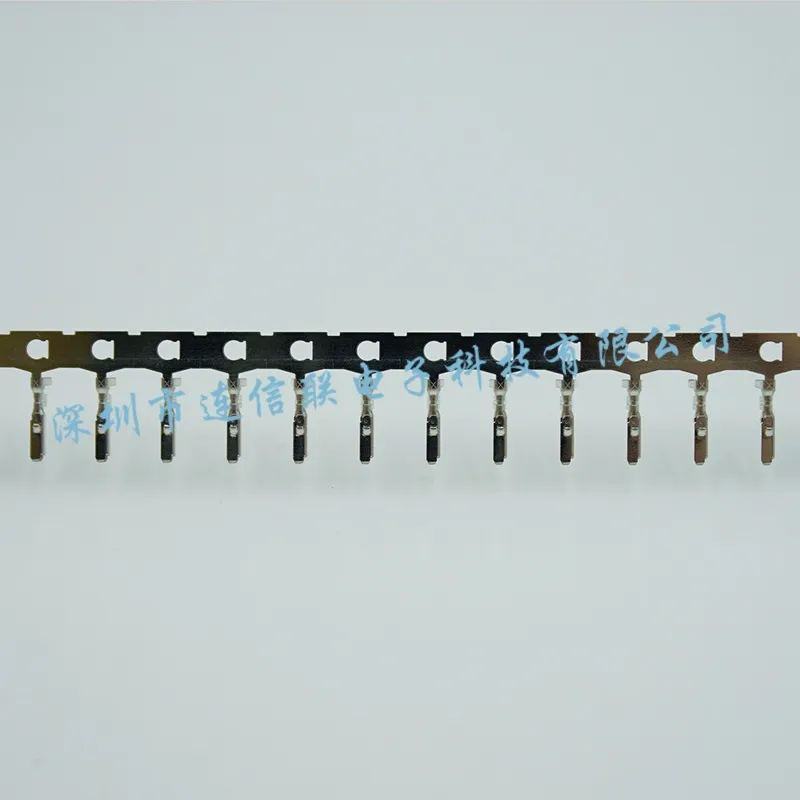

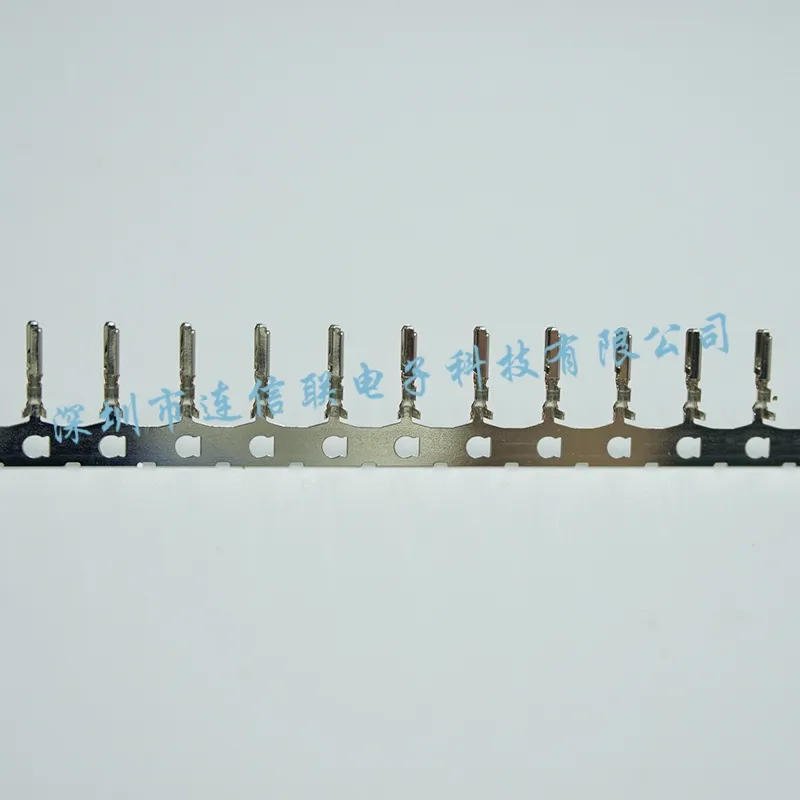

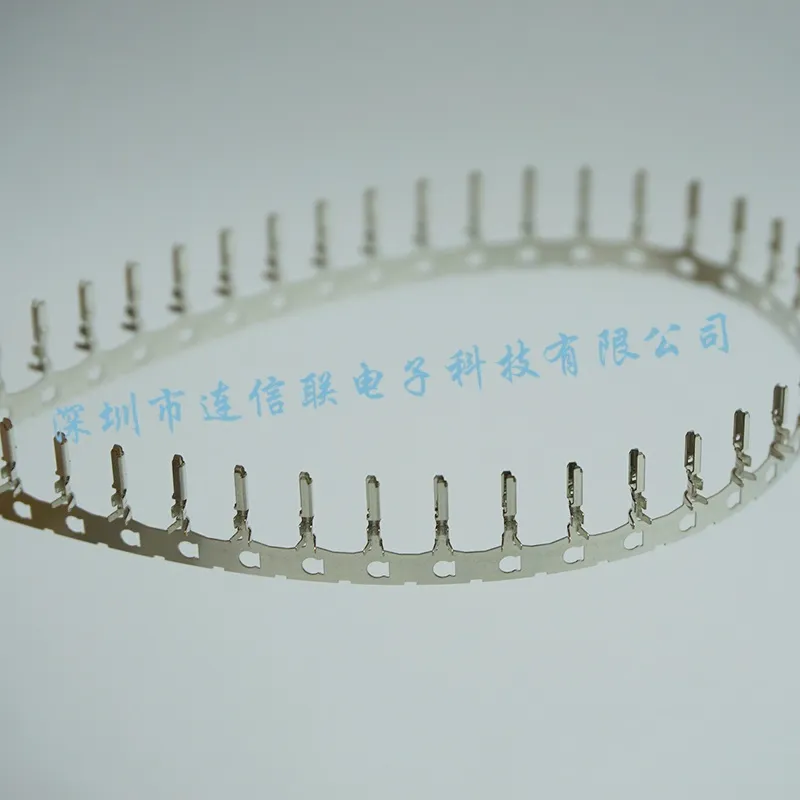

Molex 503429-0000 Connector Terminal

503429-0000 is a Molex Crimp Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.

¥ 0.00 ¥ 0.00
Contact for quotation
  • Brand
  • Packaging
Add to cart
Add to wishlist
Sales and Website Terms
Price, availability, and lead time are subject to order confirmation
Contact Us
Hong Kong standard delivery: 17:00 cutoff, 3 business days handling + 3 business days transit, Monday–Friday, free shipping. View shipping policy

产品技术规格

应用领域 Wire-to-Board
1 0.095
100000 0.049
20 0.091
20000 0.051
200000 0.048
3D CAD图纸 https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/3dcadmodelspdf/503/503429/5034290000.pdf
3D CAD模型 https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/3dcadmodels/503/503429/5034290000_stp.zip
400000 0.047
Assembly Country of Origin Not available
batch N
BRHTS 85366990
CAHTS 8536690020
China RoHS Green Image per SJ/T 11365-2006
CNHTS 8536901100
Contact Finish Tin
Contact Finish Thickness 16.0µin (0.41µm)
Country of Diffusion Not available
Country of Origin Japan
Crimp Specification Pdf https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/crimpspecificationpdf/503/503429/CS-503429-001-001.pdf
DigiKey编号 WM16305TR-ND
Durability Mating Cycles Max 30
ECCN EAR99
EU ELV Not Relevant
EU RoHS Compliant per EU 2015/863
GADSL/IMDS Compliant with Exemption 44; 34; 33
HTSUS编码 8536.90.4000
JPHTS 853669000
KRHTS 8536691000
Low-Halogen Status Low-Halogen per IEC 61249-2-21
Material Metal Copper Alloy
Material Plating Mating Tin
Material Plating Termination Tin
MXHTS 85366999
Pin or Socket Non-Gendered
Plating Min Mating 0.406µm
Plating Min Termination 0.406µm
Prop65 Compliant per California Proposition 65
REACH SVHC Not Contained per D(2025)7771-DC (04 Feb 2026)
REACH状态 REACH Unaffected
SAP型号 5034290000
Standard Pack Qty 20000
TARIC 8536699099
Termination Interface Style Crimp or Compression
Type Stamped
USHTS 8536904000
Wire Gauge 26-30 AWG
Wire Insulation Diameter 0.70-1.02mm
Wire Size Awg 26、28、30
Wire Size Mm 0.05-0.13
WM16305CT-ND Cut Tape (CT)
WM16305TR-ND Tape & Reel (TR)
一级应用 Connected Home,Telecommunications / Networking,Defense
二级应用 Wire-to-Board Connectors, Micro Connector Products
交期 77 Days
产品名称 503429-0000 (MOLEX)
产品描述 CLIK-Mate 1.50mm Pitch Crimp Terminal, Male, Tin Plating, 26-30 AWG, Reel
产品系列 CLIK-Mate
产地 日本/JPN
公端/母端 公端
净重 42.000/mg
制造商交期（周） 9
包装方式 卷
包装类型 Reel
包装规范 https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/packagingspecificationpdf/503/503429/SPK-503429-001-001.pdf
单位重量（kg） 4.2e-05
原产国 CN,JP
参考单价（USD） 0.1
可用库存 49863
品名 端子
品牌归属地 国际
基本分类 连接器
导线绝缘直径 0.70-1.02mm
接口性别 Male
数据手册 https://www.molex.com/pdm_docs/pk/SPK-503429-001.pdf
替代型号 91M0-00076（JiDC(济德)）、X1502T-PSN（中国星坤(XKB CONNECTION)）
最后更新日期 2026-10-19
最多次数耐用性(插拔次数) 30
最大电压 100V AC (RMS)/DC
湿敏等级 1 (Unlimited)
端接方法 压接
端接最薄镀层 0.406µm
线径-mm² 0.05 to 0.13 mm²
线规-AWG 30 to 26 AWG
终端电镀材料 Tin
触头镀层 锡
说明 CLIK-Mate 1.50mm Pitch Crimp Terminal, Male, Tin Plating, 26-30 AWG, Reel
贸泽编号 538-503429-0000
配套系列 502578 - 1.50mm Pitch CLIK-Mate Single Row Plug Housings、503149 - 1.50mm Pitch CLIK-Mate Dual Row Plug Housings
金属材料 Copper Alloy
销售图纸 https://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/salesdrawingpdf/503/503429/5034290000_sd.pdf
销售状态 Standard Product
镀层厚度 0.406μm
额定电流 1.5A
首次发布日期 2010-09-14
高清产品图片 https://www.molex.com/content/dam/molex/molex-dot-com/products/manual/en-us/images/503/503429/5034290000-top-right-angle-view.png.png
安装风格 压接式
包装 Reel
额定电流 1.5A
系列 CLIK-Mate 503429
端接方式 Crimp
重量 42.000/mg
Brand：Molex Category：Crimp Terminals Series：CLIK-Mate Application：Connected Home Application：Telecommunications / Networking Application：Defense Application：Wire-to-Board Application：Signal Connections

Similar products for discovery (not a compatibility or replacement claim)

Molex 19420-0004 Connector TerminalMolex 39-01-2065 Connector HousingMolex 430452012 Connector HeaderMolex 3900-0038 Connector TerminalMolex 64325-1010 Connector AccessoryMolex 43030-0038 Connector TerminalMolex 57915-8001 Connector TerminalMolex 33012-2004 Connector Terminal

Verified inquiry information

Packaging
Reel
Packaging type
Reel
Minimum order quantity
20000

Manufacturer and authorized source records

Product information

Molex 503429-0000 Connector Terminal

503429-0000 is a Molex Crimp Terminals. Review the verified specifications, packaging, compliance and availability information before ordering.

Part number

503429-0000

Brand

Molex

Category

Crimp Terminals

Series

CLIK-Mate

Applications

Connected Home, Telecommunications / Networking, Defense, Wire-to-Board, Signal Connections

Technical specifications

ApplicationsWire-to-Board
10.095
1000000.05
200.091
200000.052
2000000.049
4000000.048
batchN
China RoHSGreen Image per SJ/T 11365-2006
Crimp Specification Pdfhttps://www.molex.com/content/dam/molex/molex-dot-com/products/automated/en-us/crimpspecificationpdf/503/503429/CS-503429-001-001.pdf
Durability Mating Cycles Max30
EU ELVNot Relevant
EU RoHSCompliant per EU 2015/863
GADSL/IMDSCompliant with Exemption 44; 34; 33
Low-Halogen StatusLow-Halogen per IEC 61249-2-21
Material MetalCopper Alloy
Material Plating MatingTin
Material Plating TerminationTin
Plating Min Mating0.406µm
Plating Min Termination0.406µm
Prop65Compliant per California Proposition 65
REACH SVHCNot Contained per D(2025)7771-DC (04 Feb 2026)
Termination Interface StyleCrimp or Compression
Wire Insulation Diameter0.70-1.02mm
Wire Size Awg26、28、30
Wire Size Mm0.05-0.13
Primary applicationsConnected Home,Telecommunications / Networking,Defense
Secondary applicationsWire-to-Board Connectors, Micro Connector Products
Product family503429-0000 (MOLEX)
Product seriesCLIK-Mate
GenderMale
Net weight42.000/mg
PackagingReel
Packaging typeReel
Country of originCN,JP
Product typeTerminal
Brand regionInternational
Wire insulation diameter0.70-1.02mm
Interface genderMale
Termination methodCrimp

Ordering and packaging

Minimum order quantity20000
Order multiple20000
Factory stock0

Compliance information

RoHS statusROHS3 Compliant
REACH statusREACH Unaffected
Moisture sensitivity level1 (Unlimited)
ECCNEAR99
CNHTS8536901100
TARIC8536699099
CAHTS8536690020
USHTS8536904000
JPHTS853669000
KRHTS8536691000
MXHTS85366999
BRHTS85366990
Country of OriginJapan
Assembly Country of OriginNot available
Country of DiffusionNot available

Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
