Product information

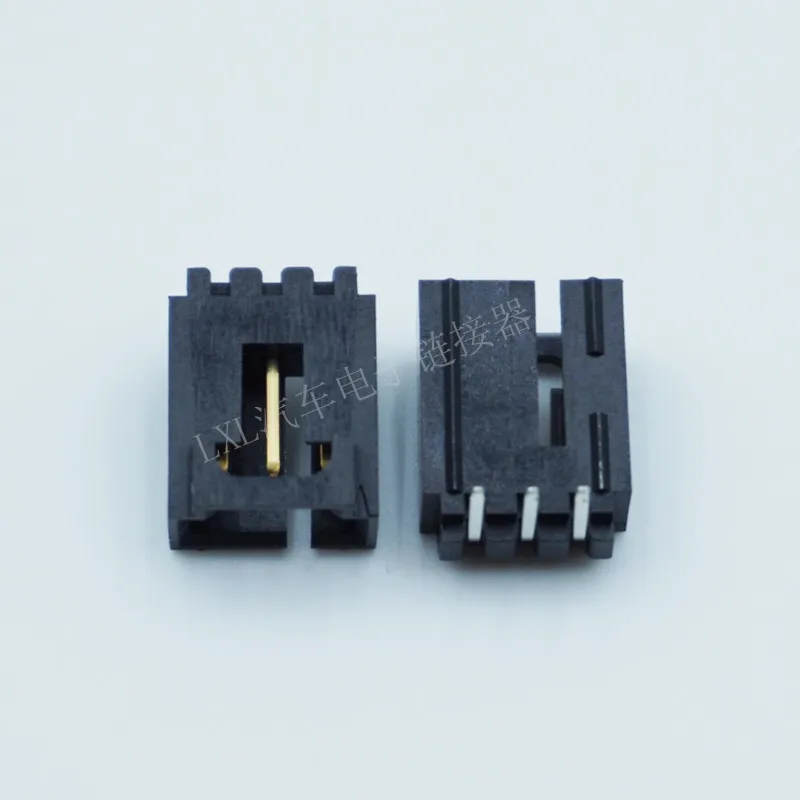

Molex 70553-0002 Connector Header
70553-0002 is a Molex PCB Headers and Receptacles. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
70553-0002
Brand
Molex
Category
PCB Headers and Receptacles
Series
SL Modular Connectors
Applications
Connected Home, Telecommunications / Networking, Signal Connections, Wire-to-Board, Wire-to-Wire
Technical specifications
| Product status | Active |
|---|---|
| Pitch | 2.54mm |
| Brand region | International |
| Number of rows | 1 |
| Series | 70553、70553 |
| Number of positions | 3 |
| Plating thickness | 0.381μm |
| Primary applications | Connected Home,Telecommunications / Networking |
| Secondary applications | Wire-to-Wire Connectors, Wire-to-Board Connectors |
| Product family | SL |
| Product series | SL Modular Connectors |
| Operating temperature | -40° to +105°C |
| Applications | Signal, Wire-to-Board |
| Lead free | WAVE |
| Resin material | High Temperature Thermoplastic |
| Resin color | Black |
| Related series | 70066, 70400, 70430 |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |
| Packaging type | Tube |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536693000 |
| CAHTS | 8536690020 |
| USHTS | 8536694040 |
| JPHTS | 853669000 |
| KRHTS | 8536691000 |
| MXHTS | 8536699999 |
| BRHTS | 85366990 |
| ECCN | EAR99 |
| Country of Origin | Malaysia |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44; 34; 33 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Not Relevant |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
| CSA | LR19980 |
| UL | E29179 |
Mating and related products
| Mating series | 70066 - SL Single Row Crimp Housings and CPA Retainers、70400 - SL Single Row Female Insulation Displacement Connector Assemblies、70430 - SL Single Row Female Receptacles |
|---|
Additional information
| Country of origin | HK,JP,MY,US |
|---|
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
