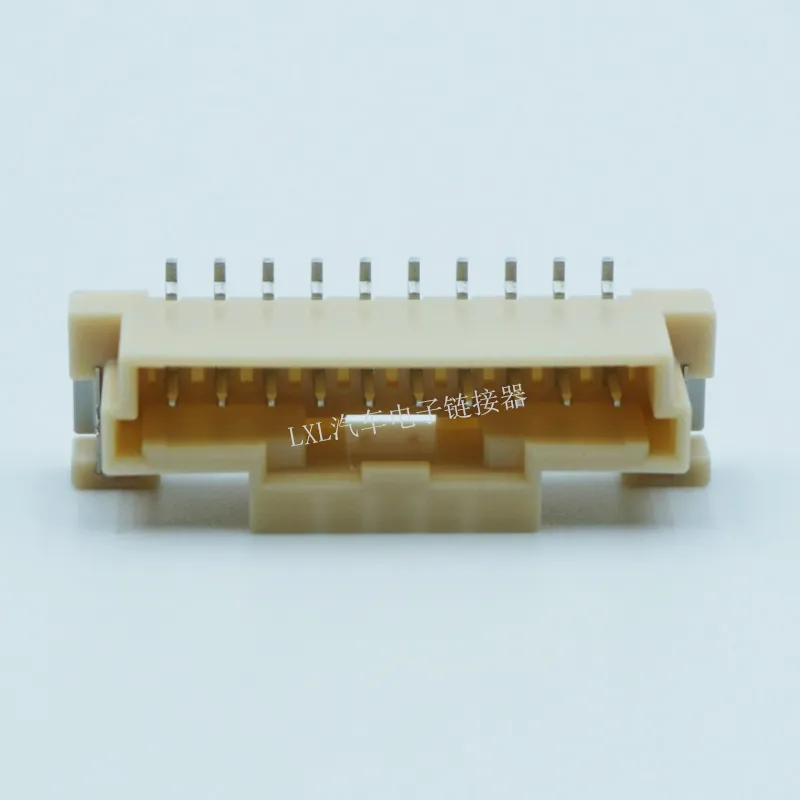

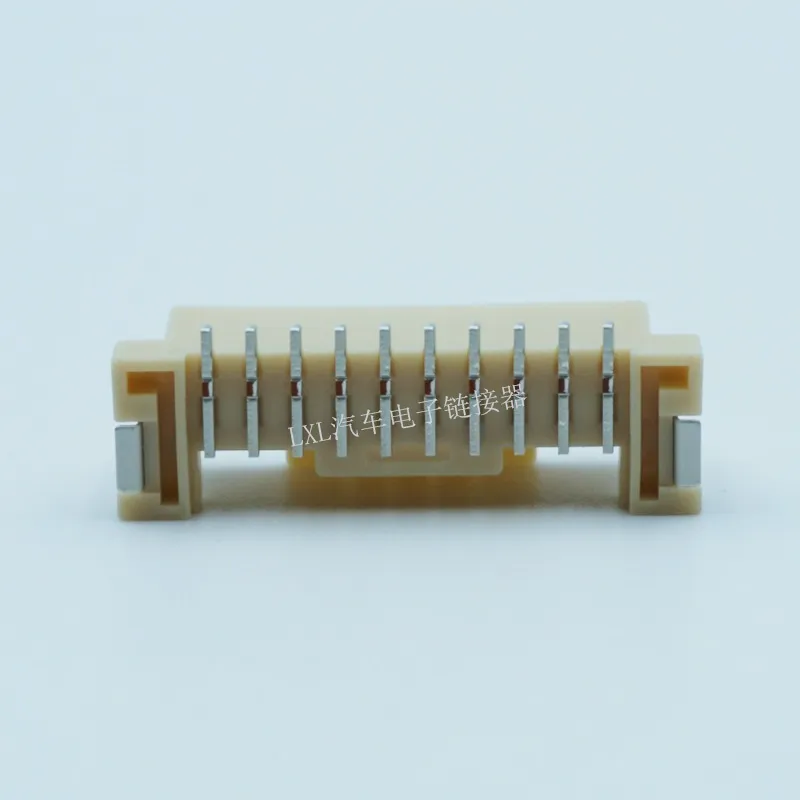

Molex 560020-1020 Connector Header
560020-1020 is a Molex PCB Headers and Receptacles. Review the verified specifications, packaging, compliance and availability information before ordering.
Part number
560020-1020
Brand
Molex
Category
PCB Headers and Receptacles
Technical specifications
| Packaging | Reel |
|---|---|
| Standard Pack Qty | 1950 |
| Unit weight (kg) | 0.001179 |
| Breakaway | No |
| Circuits Loaded | 10 |
| Maximum circuits | 10 |
| Color | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow-wire capable | No |
| Mating keying | No |
| Mating lock | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Resin material | Polyamide (PA) |
| Net weight | 1.179/g |
| Number of rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Mating pitch | 2.00mm |
| Pitch Termination Interface | 2.00mm |
| Mating polarization | Yes |
| Polarized To Pcb | Yes |
| Sealed | Unsealed |
| Operating temperature | -40° to +105°C、-40° to +125°C |
| Termination Interface Style | Surface Mount |
| Terminal Size | 0.635 |
Ordering and packaging
| Minimum order quantity | 1 |
|---|---|
| Order multiple | 1 |
| Factory stock | 0 |

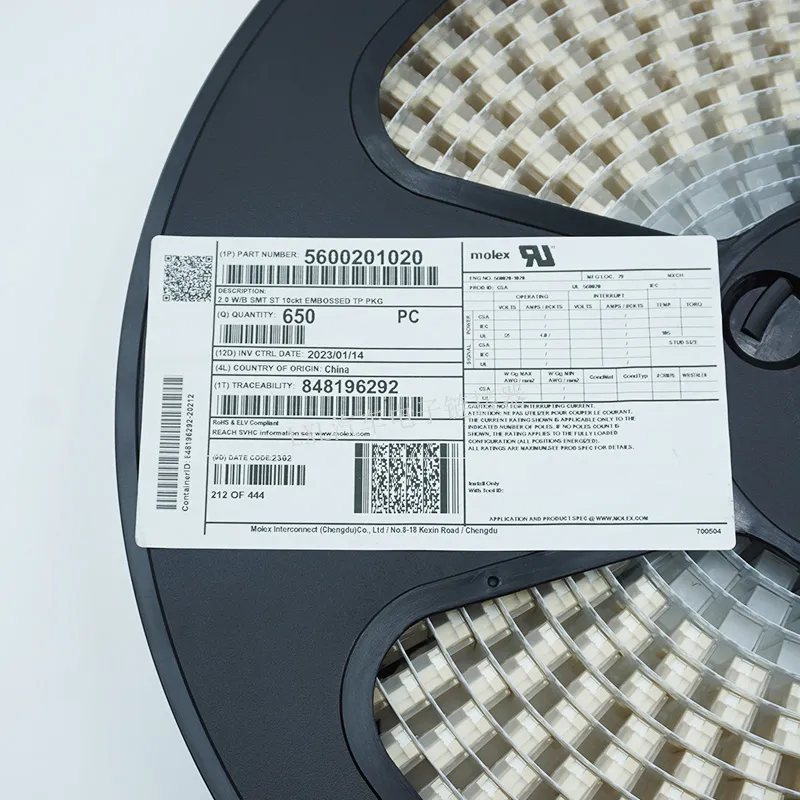

| Packaging type | Embossed Tape on Reel |
Compliance information
| CNHTS | 8536901100 |
|---|---|
| TARIC | 8536693000 |
| CAHTS | 8536690020 |
| USHTS | 8536694040 |
| JPHTS | 853669000 |
| KRHTS | 8536691000 |
| MXHTS | 8536699999 |
| BRHTS | 85366990 |
| ECCN | EAR99 |
| Country of Origin | China |
| Assembly Country of Origin | Not available |
| Country of Diffusion | Not available |
| RoHS status | RoHS Compliant |
| GADSL/IMDS | Compliant with Exemption 44; 33 |
| China RoHS | Green Image per SJ/T 11365-2006 |
| EU ELV | Compliant per 2000/53/EC |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2025)7771-DC (04 Feb 2026) |
| EU RoHS | Compliant per EU 2015/863 |
| UL | E29179 |
Mating and related products
| Mating series | 502351 - DuraClik Single Row Receptacle Housings、505151 - DuraClik TPA Single Row Receptacle Housings、560123 - DuraClik ISL Single Row Receptacle Housings |
|---|
Additional information
| Product status | Active |
|---|---|
| Country of origin | CN |
Specifications are provided for selection reference. Confirm the complete part number, packaging and latest manufacturer documentation before ordering.
